AGC Series
Easy-installation Commercial LED Display

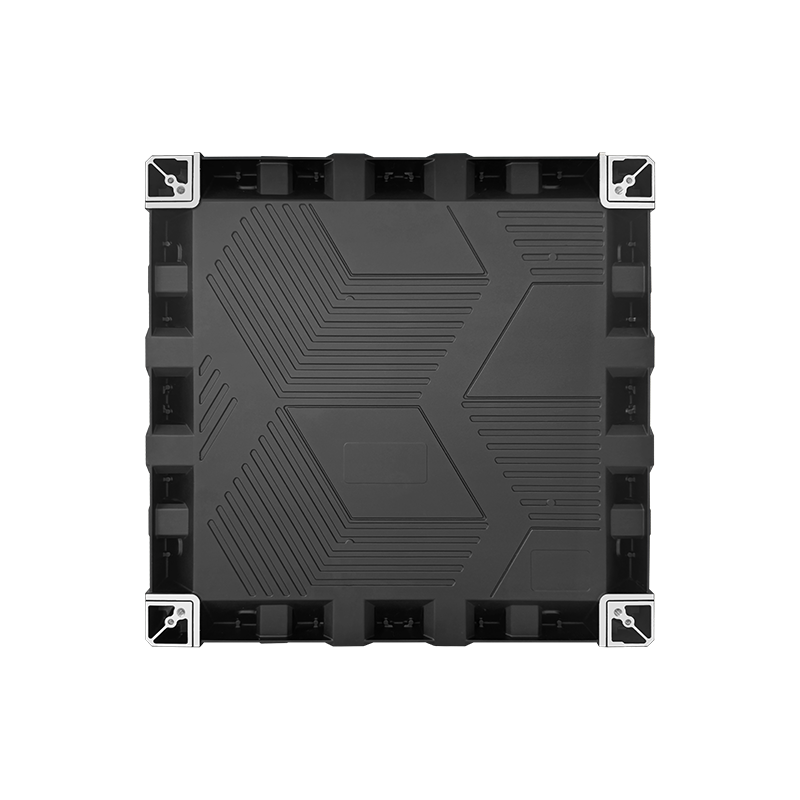

AGC Series
Easy-installation Commercial LED Display
Dimension:500*250mm*51mm,500*500*51mm,1000*250mm*51mm,1000*500mm*51mm
Pixel Pitch : 1.25mm,1.56mm,1.95mm,2.6mm,2.97mm,3.91mm
Applications: Shopping Mall,Fashion Show,Commercial Centre,Brand Retails store,Hotel,Monitor
HUB Connection
Cable free
Front maintenance & installation
High stability
Seamless splice
Cube splicing
-
Video
-
One-Stop Solution
-
Characters
-
Reference Project
-
Specification
-
Accessories
AGC Series
How to Seek Solution?
Choose right LED display products for your projects
What's Service MPLED can offer you?
One-Stop Solution: With 20+ years experts team,MPLED provides the most comprehensive solution for your project,which makes your business easier,more professional and competitive.
Features of AGC Series

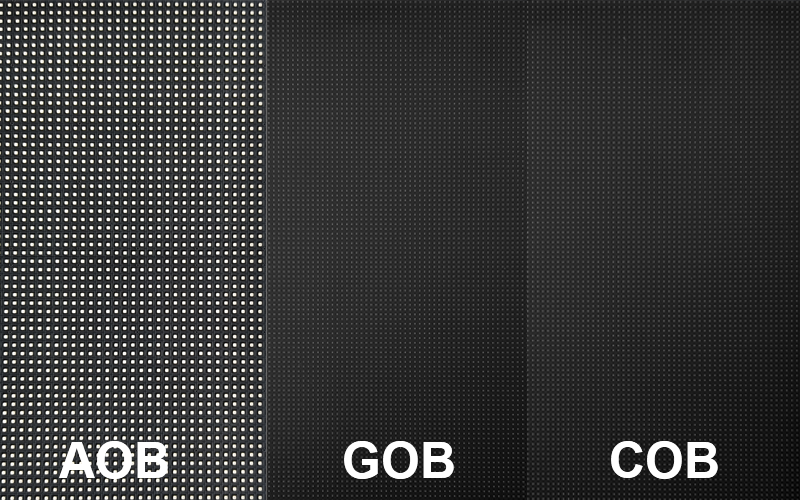

AOB/GOB/COB Solutions(Optional)

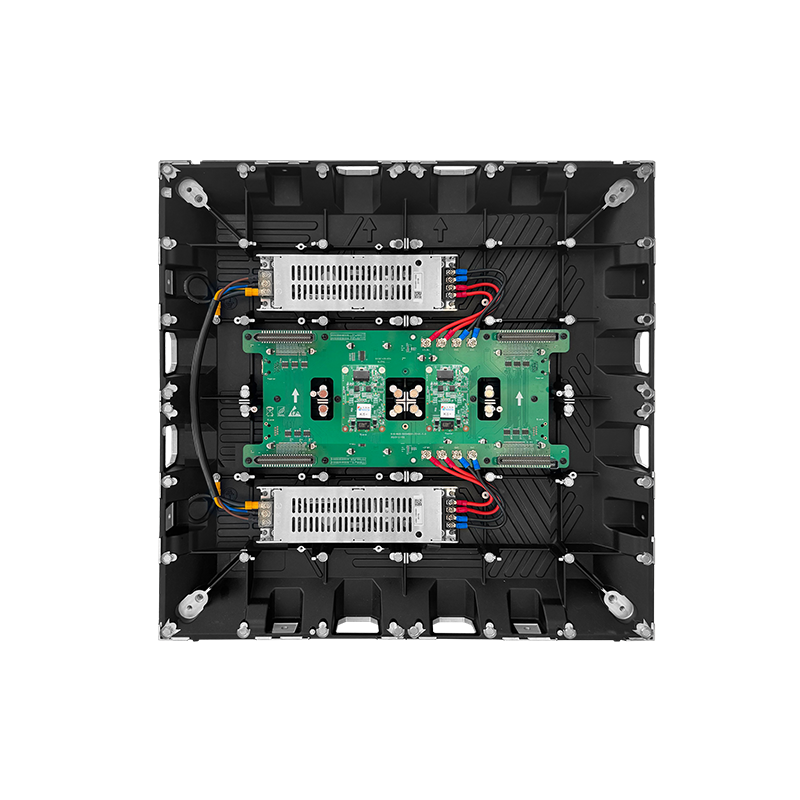

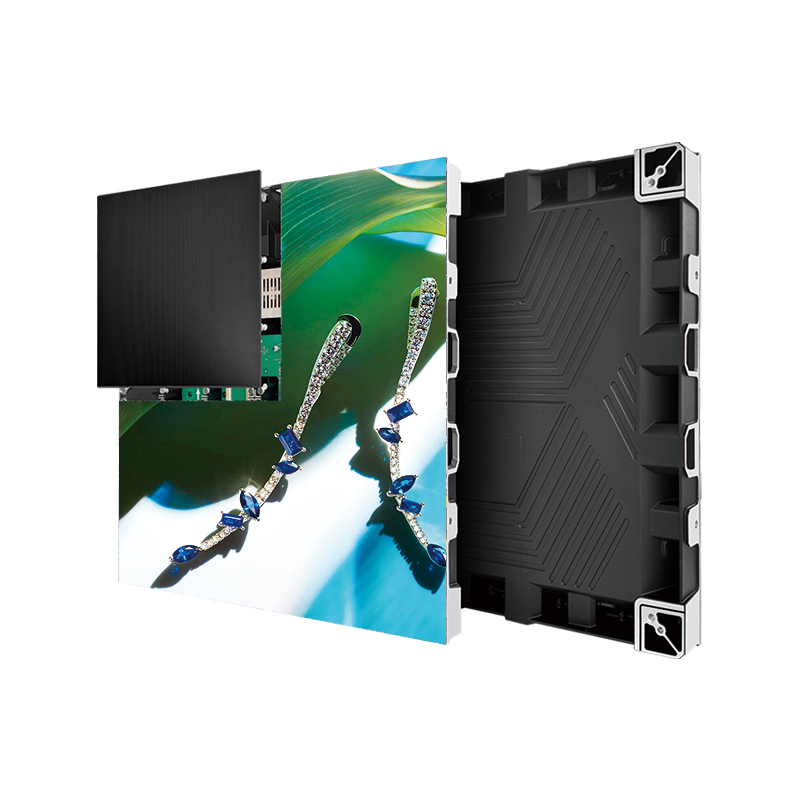

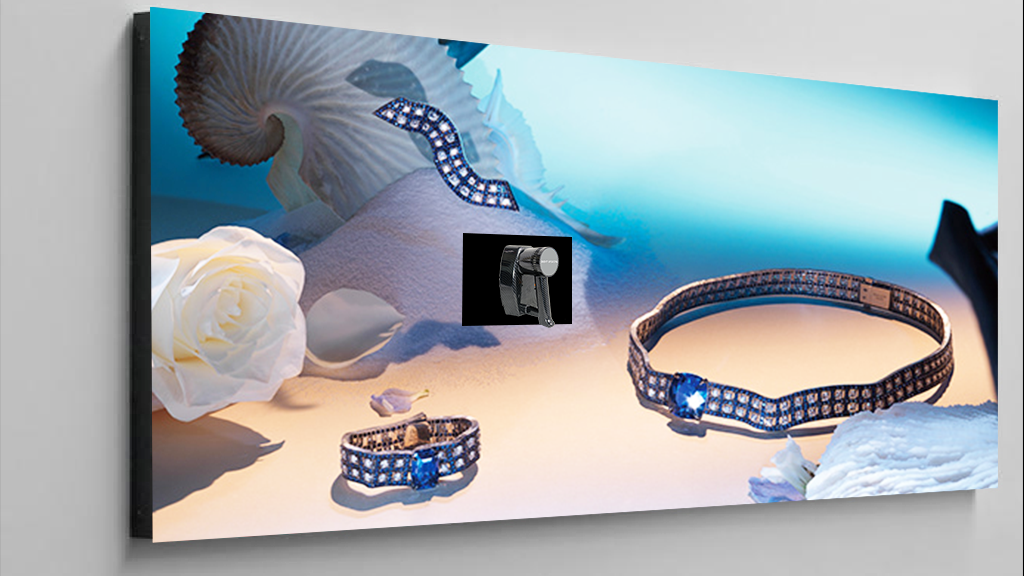

Front Install & Maintenance

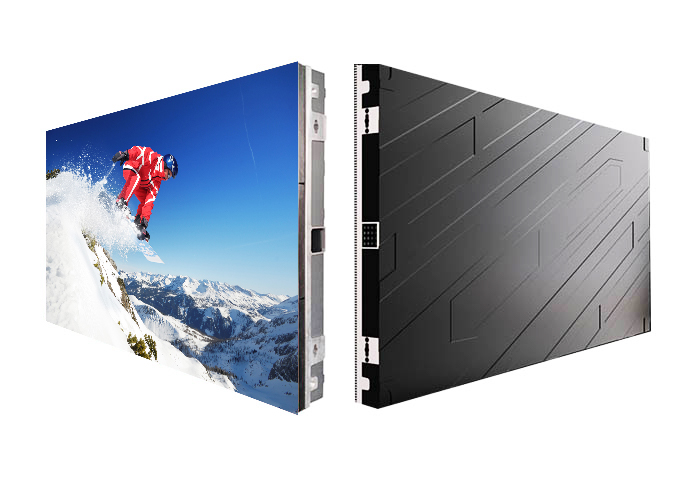

Superb slim and cable free,Born for high-end commercial screen
Structure-free installation
Integrated modular design to well achieve real Plug and Play smart operation
Supporting Right Angle

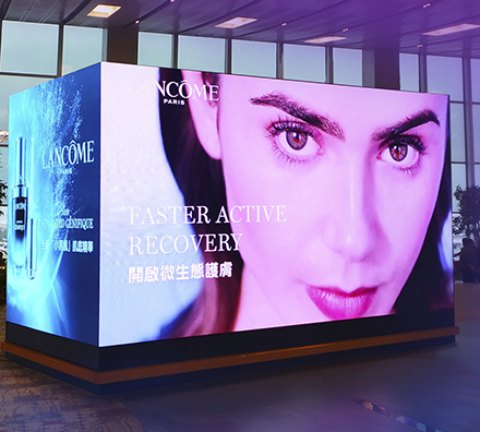

Rubik’s Cube Splicing
Free Splicing Of Multiple
Cabinet Sizes
Various Install Way
L shape,Cylinder,Column,hanging etc

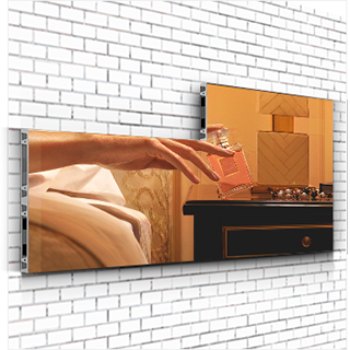

wall mounted directly

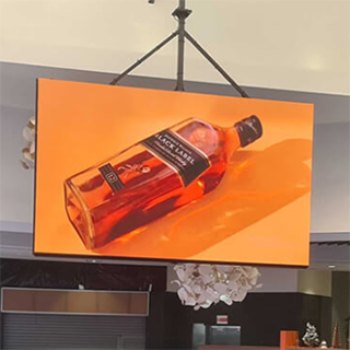

Hanging

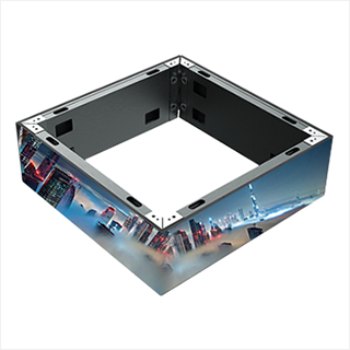

Column

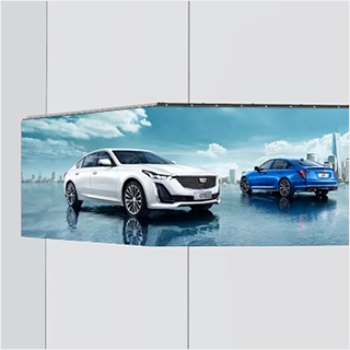

L shape

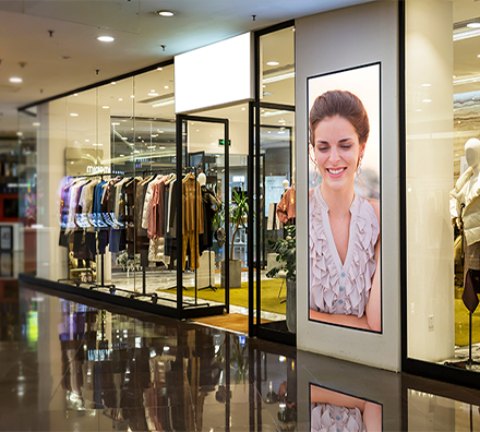

Application
Church,Exhibition,Fashion Show,Wedding,Product Lanuch,Shopping Mall,Retail Store,Hotel,school,Press conference
Reference Project
Parameters
| Indoor Specification | P1.25 | P1.56 | P1.95 | P2.6 | P2.97 | P3.91 |
| Pixel Pitch |
1.25mm | 1.56mm | 1.95mm | 2.6mm | 2.97mm | 3.91 |
| LED Configuration | SMD1212/COB | SMD1212/COB | SMD1515/COB | SMD1515/COB | SMD1515/COB | SMD1515/COB |
| Pixel Density (dots/㎡) | 640000 dots/㎡ | 409600 dots/㎡ | 262144 dots/㎡ | 147456 dots/㎡ | 112896 dots/㎡ | 65536 dots/㎡ |
| Module Size (mm) | 250x250mm | |||||
| Cabinet Size (mm) |
500*250*51 / 500*500*51 / 1000*250*51/1000*500*51mm |
|||||
| Cabinet Weight (kg) | 26kg/㎡ | |||||
| IP Rating | IP45 | |||||
| Brightness (nits) | 500-700nits | |||||
| View Angle (H/V) | Horizontal: 160degree, Vertical: 140degree | |||||
| Gray Scale (bit) | 14bit | |||||
| Max/Ave Power Consumption | SMD:620/310(W/m2) / GOB:620/310 (W/m2) / COB:460/210 (W/m2) | |||||
| Refresh | 3840Hz | |||||
| Input Voltage (V) | 110V-240V 47/63Hz | |||||
| Operate Temperature/Humidity | Temperature -30℃±50℃, 10%-95% Humidity | |||||
| Lifespan | Lifespan≥100000,MTBF ≥10000 | |||||
Accessories

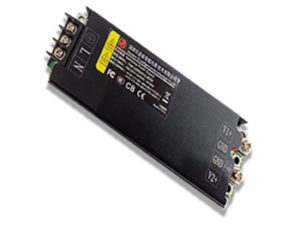

 Power supply |
 Received card |
 Magnetic tools |

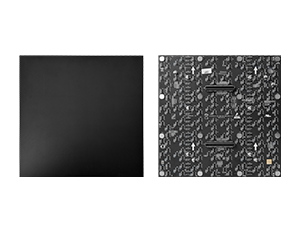

 Module |
Contact Us
Free Sample Available For your LED Display Project
Subject : Easy-installation Commercial LED Display
Related Products
FAQ
The screen will spend much electronic?
No, AF plus is energy saving screen, it spend very less electronic, 1day only spend 1kwh/m2.
