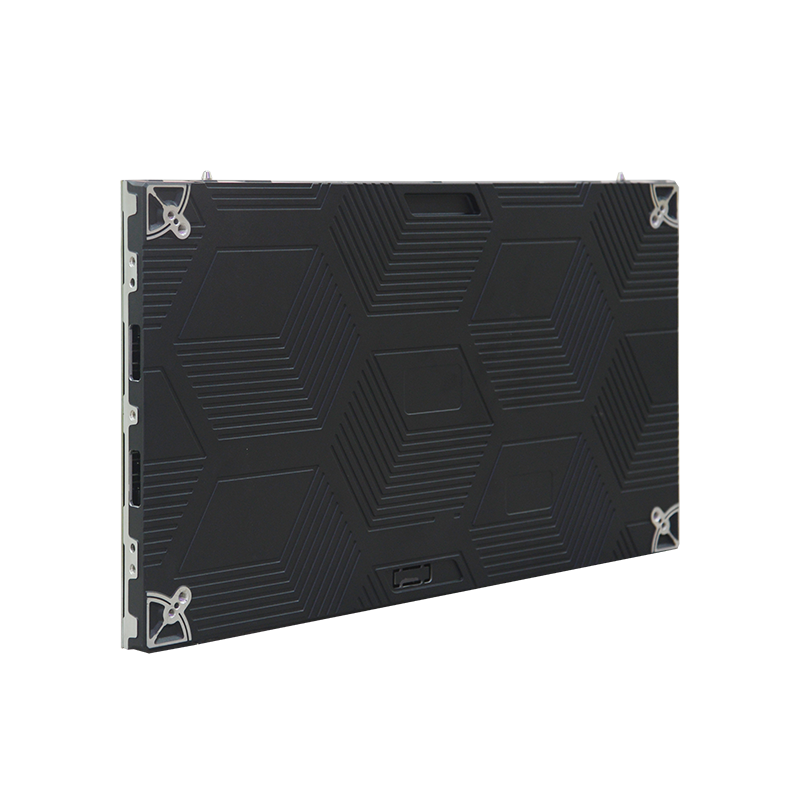

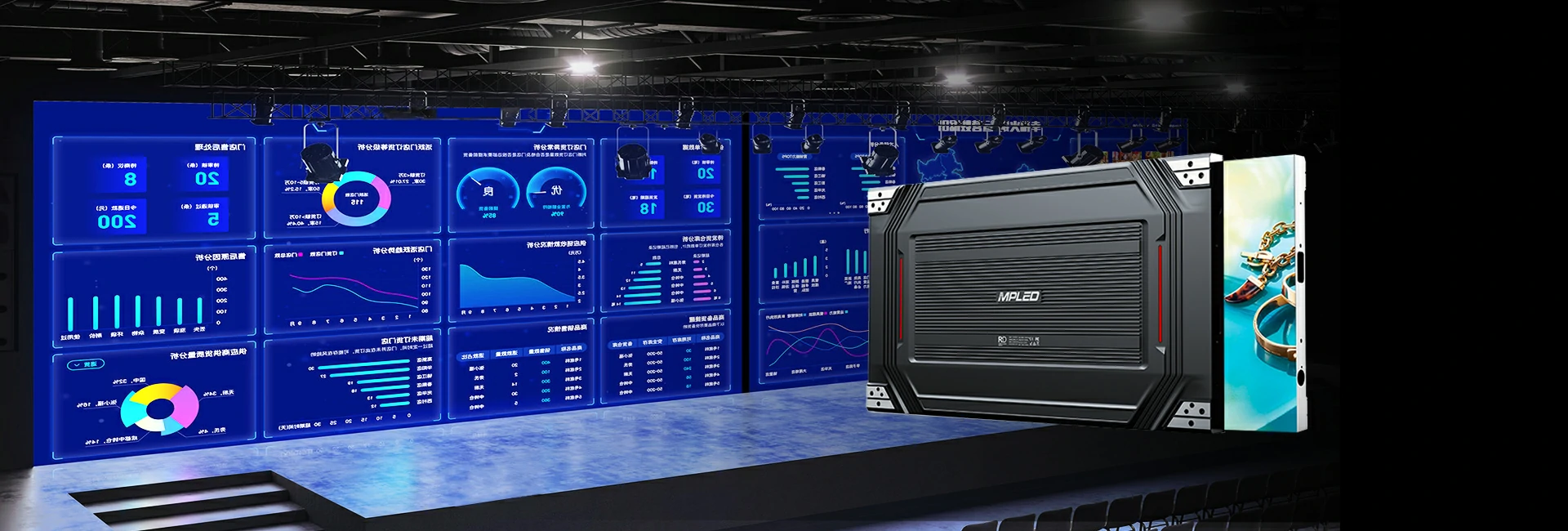

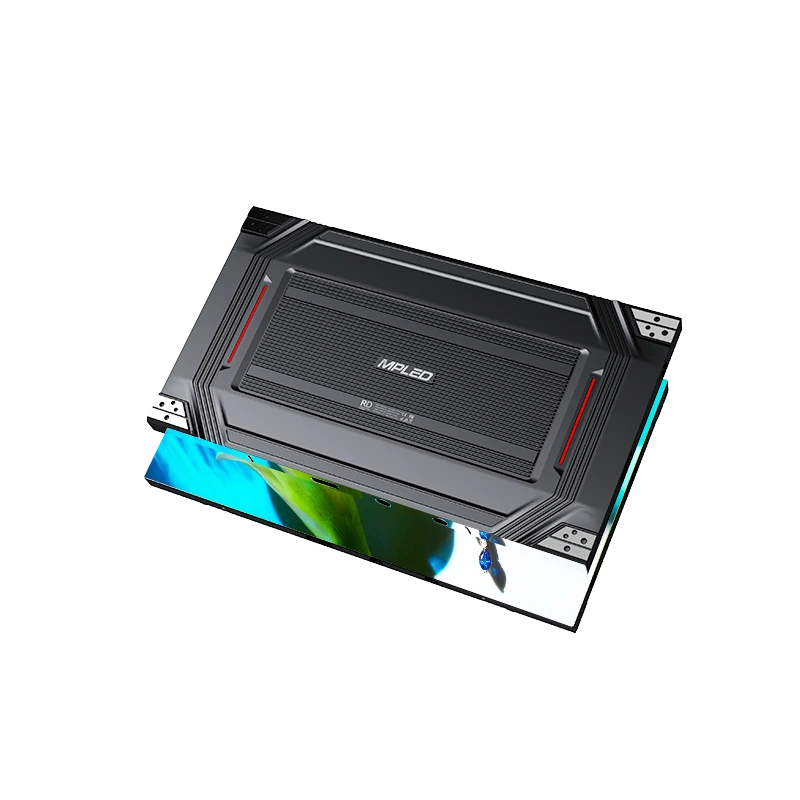

ST Pro Series
16:9 Fine Pixel Pitch LED Display
ST Pro Series
16:9 Fine Pixel Pitch LED Display
Dimension: 2K,4k,8k
Pixel Pitch : 0.62mm,0.78mm,0.93mm,1.25mm,1.56mm,1.87mm
Applications: Conference ,Metro station,Luxury store,4s car ,Festivaparty,Church,Resturant,School Museum
Anti-collission
16:9 ratio
Large viewing angle
2K / 4K / 8K
Dual-Backup
High contrast ratio
-
Video
-
One-Stop Solution
-
Characters
-
Reference Project
-
Specification
-
Accessories

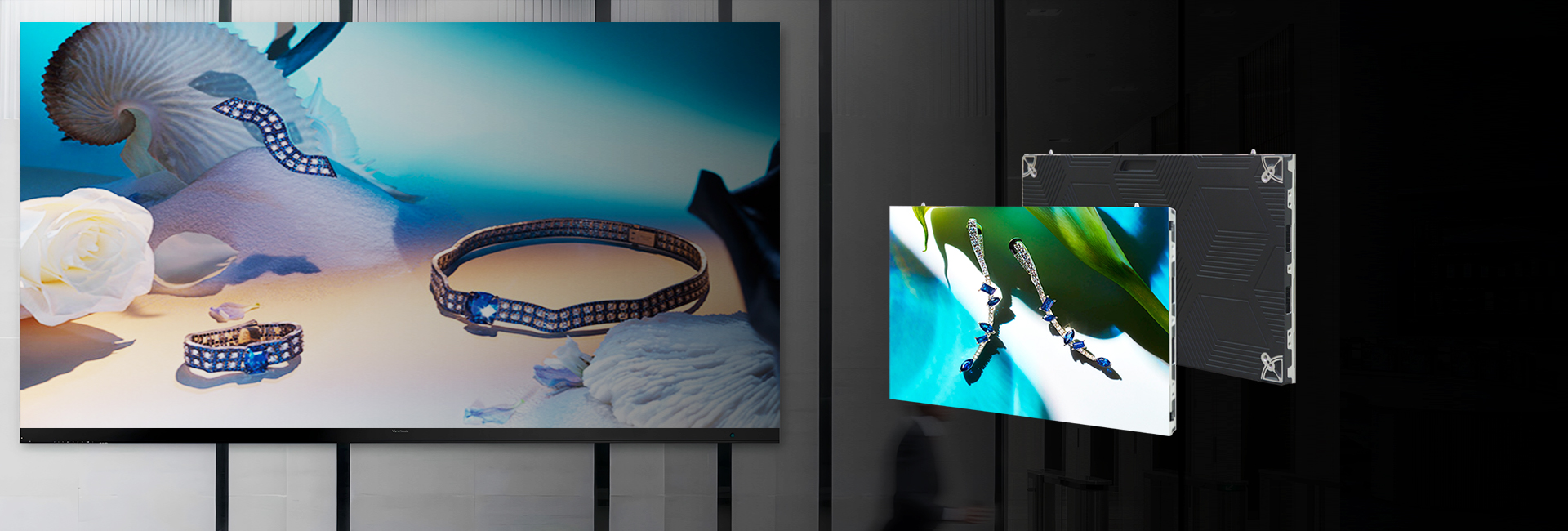

ST Pro Series
How to Seek Solution?
Choose right LED display products for your projects
What's Service MPLED can offer you?
One-Stop Solution: With 20+ years experts team,MPLED provides the most comprehensive solution for your project,which makes your business easier,more professional and competitive.
Ultra-wide Viewing
With an exceptional 10000:1 ultra-high contrast ratio for richly layered visuals, a 170° ultra-wide viewing angle for distortion-free viewing from any perspective, and advanced 3840Hz high refresh rate technology, this display delivers flawlessly smooth motion and precise detail reproduction for an unparalleled viewing experience

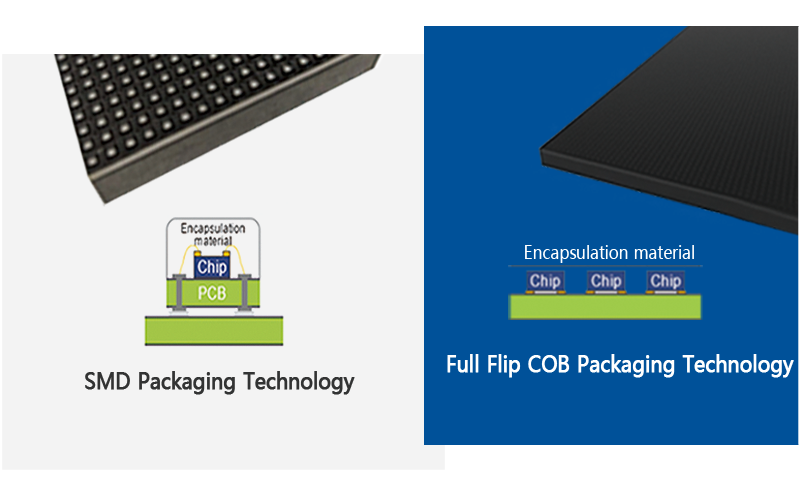

SMD & COB Technology (Optional)
115% NTSC color gamut,281 trilion colors,more detailed and rich colors,soft image display,enhance visual experience.
Restore Natural Color
115% NTSC color gamut,281 trilion colors,more detailed and rich colors,soft image display,enhance visual experience.

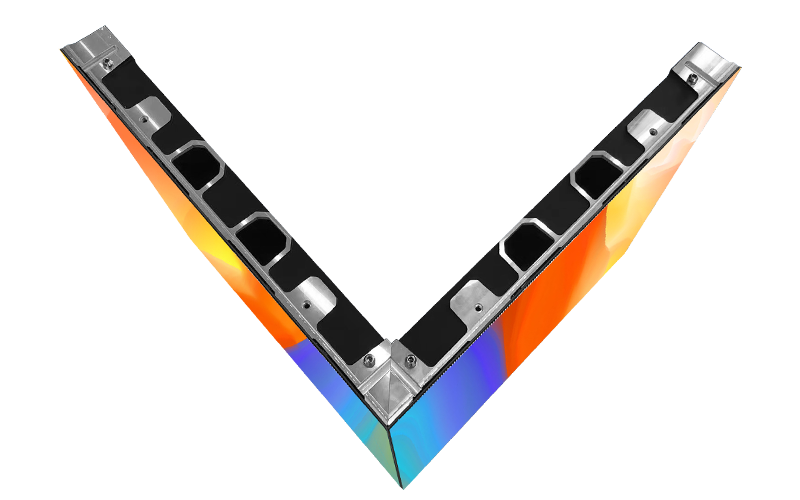

Curved & 90° Splicing
Supports flexible curved surface splicing and precise 90° right-angle splicing to create unique visual shapes and meet creative display needs.

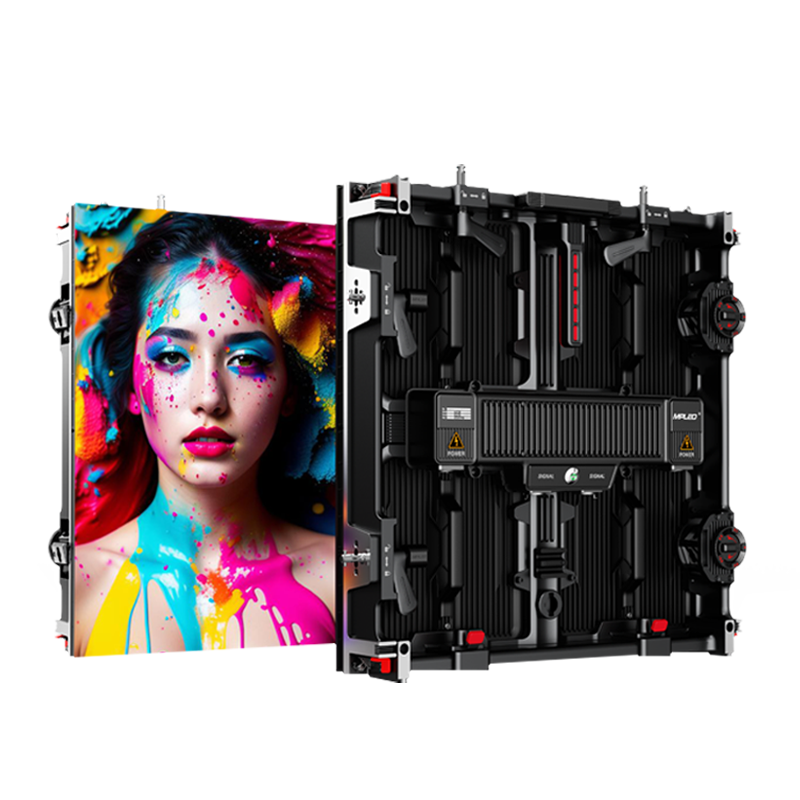

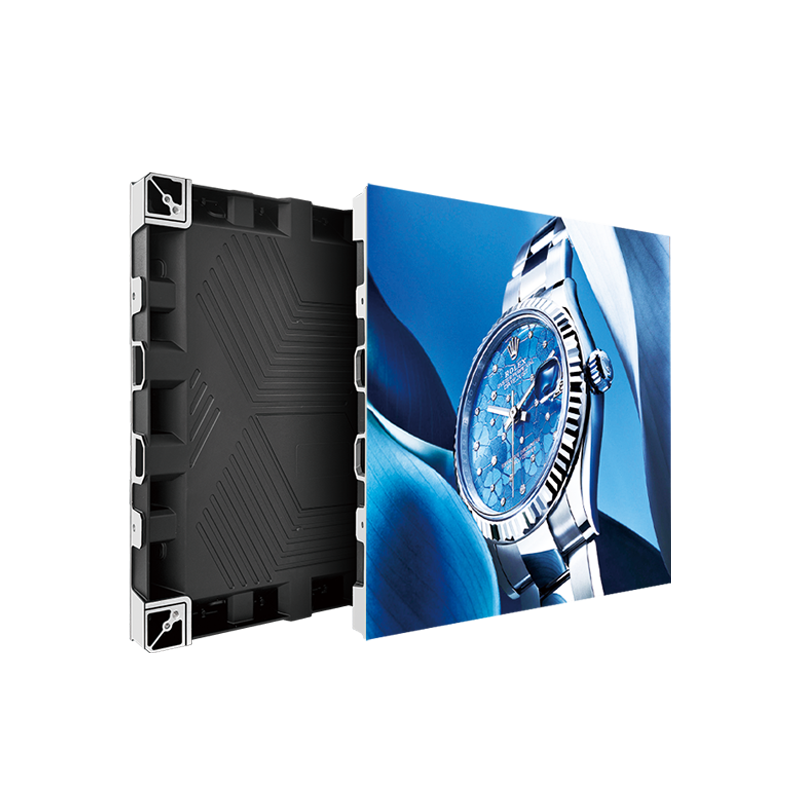

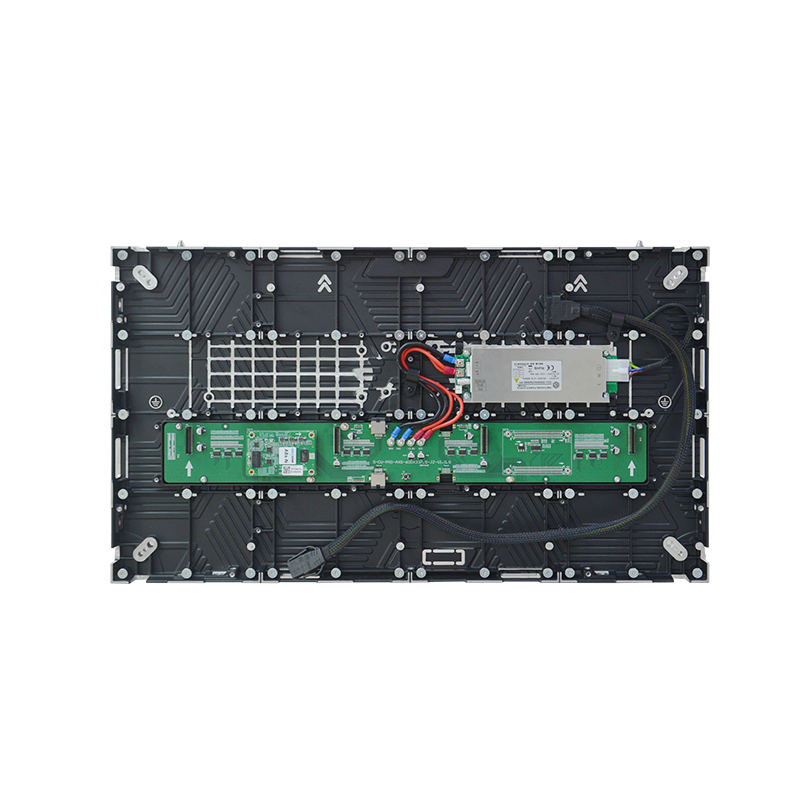

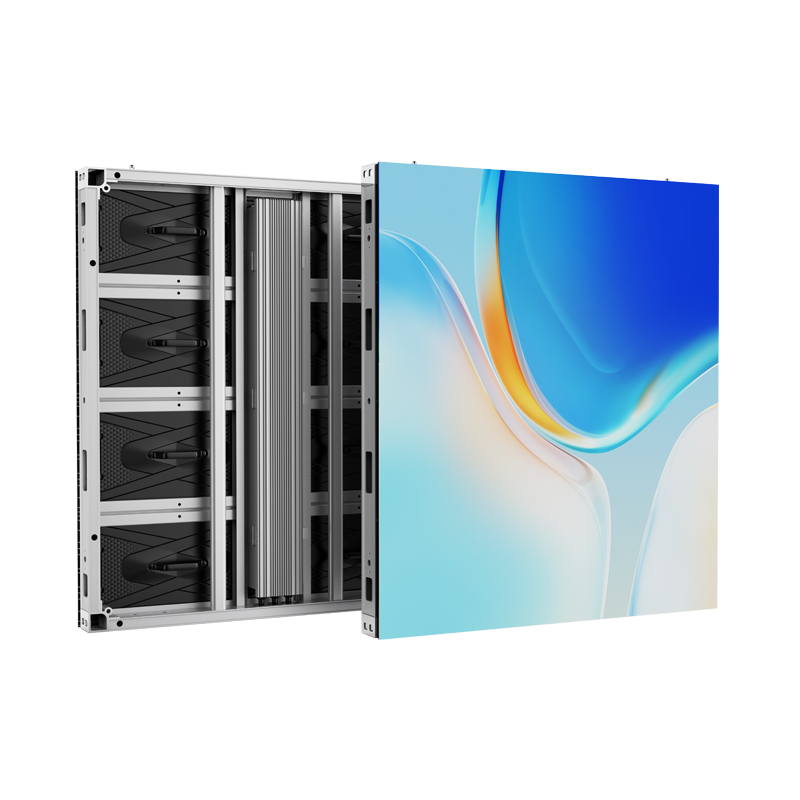

Front installation & Maintenance
Front maintenance design: Modules, power supply,Received card can be maintained from the front without rear space.
Front install design: support direct wall mounted with simple steel bars.
2K*4K*8K
Panel size with 16:9 Golden ratio (27”) combined with fine pixel pitch allow the setup of 2k,4k,8k resolution display achievable,perfectly match mainstream video sources and enable to substitute any existing LCD screen
Stability & Security

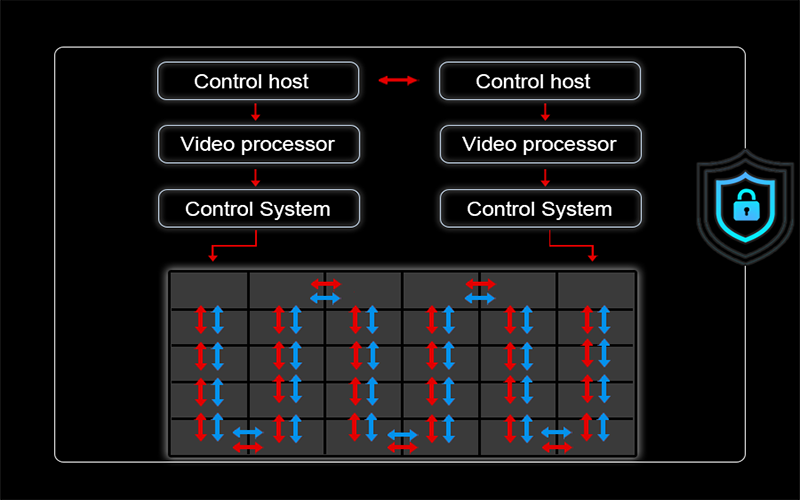

Dual power dual card backup design,as long as one stops working and the other starts automatically,At the same time,the system will receive errors and display the exact error location.
Highly integrated design and high quality plug-ins can reduce the occurrence of 80% problems and greatly improve product stability.
User Friendly Design
A floating connector is used between the module and the box,make the installation become simple and easy;
Module can be fine-tuned for more flat stitching;Anti-dementia interface to avoid incorrect installation;

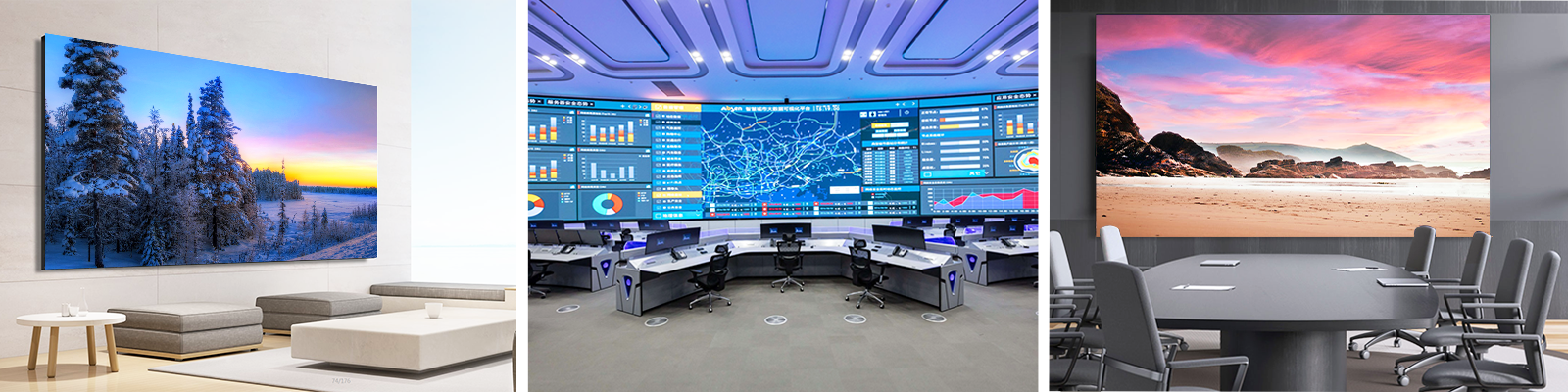

Success Cases
Broadcast,TV studio,Airport,Exhibition,Conference,Military Monitor,Star Hotel,Metro station,Luxury store,4s car,Festivaparty,Church,Resturant,School,Museum.
Reference Project
Parameters
| Parameter | P0.62 | P0.78 | P0.93 Common Cathode | P1.25 | P1.56 | P1.87 |
| Pixel Pitch |
0.62mm | 0.78mm | 0.93mm | 1.25mm | 1.56mm | 1.87mm |
| LED Lamp | SMD/Flip COB | |||||
| Brightness (cd/²) | 1000 | 1000 | 500-600 | 600-800 | 600-800 | 600-800 |
| Refresh Rate (HZ) | ≥3840HZ | ≥2880HZ | ≥3840HZ | |||
| Panel Size (mm) | 600*337.5*27.3 | |||||
| Viewing Distance (M) | 1m-100m | |||||
| Max/Are (W/m²) | SMD:Max :600W/m?,Ave :180W/m?/COB:Max 500W/m?, Ave :150W/m? | |||||
| IP Grade | IP30 / IP54 | |||||
| Contrast Ratio | Contrast ratio:8000:1 /Contrast ratio:10000:1 | |||||
| Grayscale (bit) | 16bit | |||||
| Frame Frequency (HZ) | 50/60HZ | |||||
| Viewing Angle (Deg) | SMD :140°-160°/COB :170°-170° | |||||
| Install/Maintenance Way | Maintenance way: Front maintenance; Install way; Front or rear install | |||||
| Work Environment | Temperature -20°±60°, Humidity 10%RH-95%rh | |||||
| Lifespan/MTBF (H) | Lifespan ≥100000, MTBF ≥50000 | |||||
Accessories

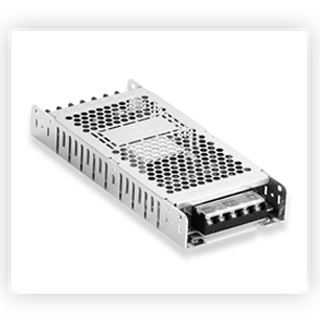

 Power Supply |

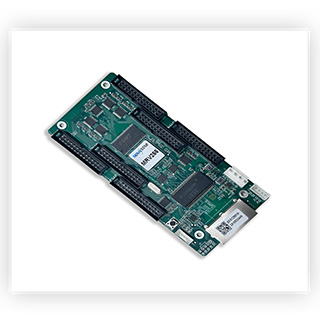

 Novastar Received Card |

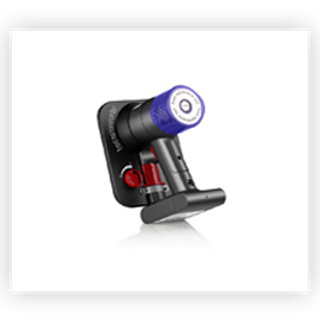

 Front Maintenance Tool |

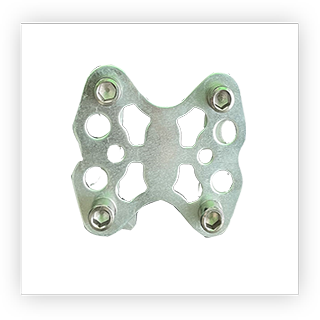

 Connecting Piece |
FAQ
The screen will spend much electronic?
No, ST Pro-COB is energy saving screen, it spend very less electronic, 1day only spend 1kwh/m2.
