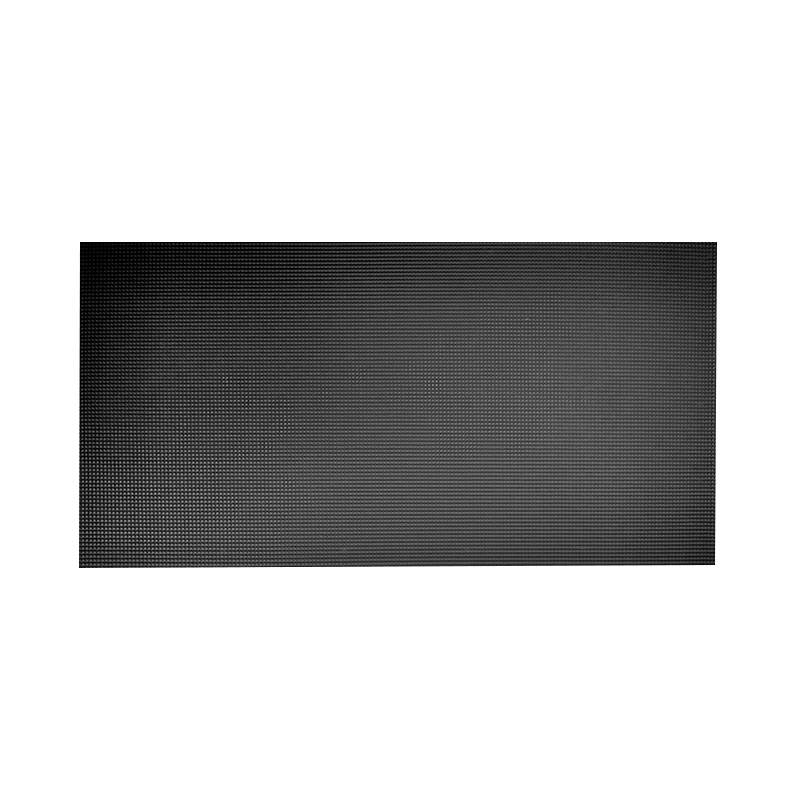

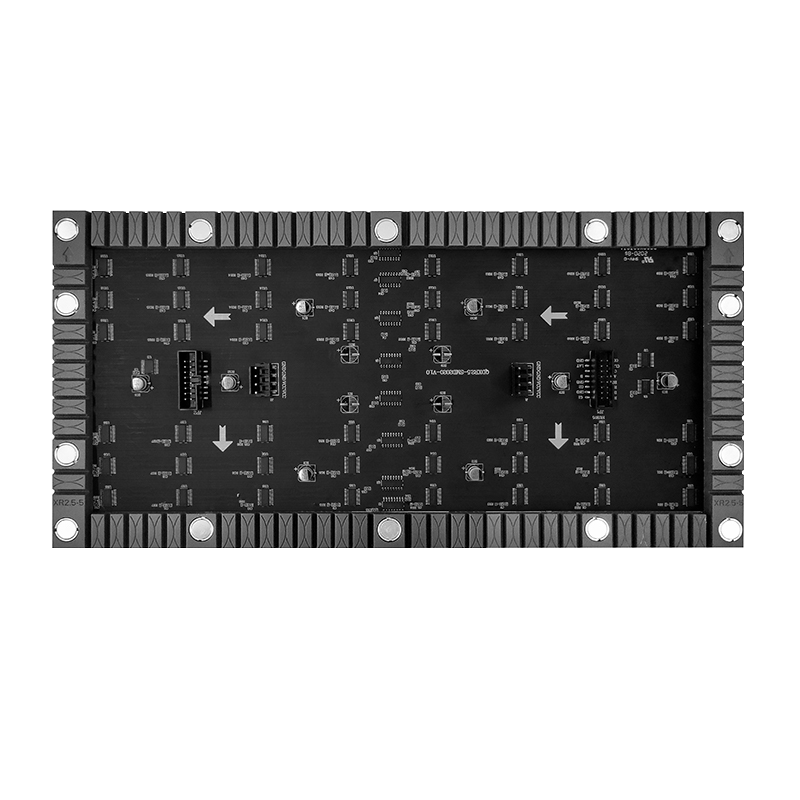

CV Series
Creative LED Display
CV Series
Creative LED Display
Dimension: 320mm*160mm,240mm*120mm,300mm*168.75mm
Pixel Pitch : 1.25mm,1.56mm,1.875mm,2.344mm,3.125mm
Applications: Exhibition hall,Exhibition,Fashion show,Wedding,Commercial Centre,Shopping mall,Vocal concert,Car 4S store,etc
135° inner & outer arc angle
No degumming
No warping

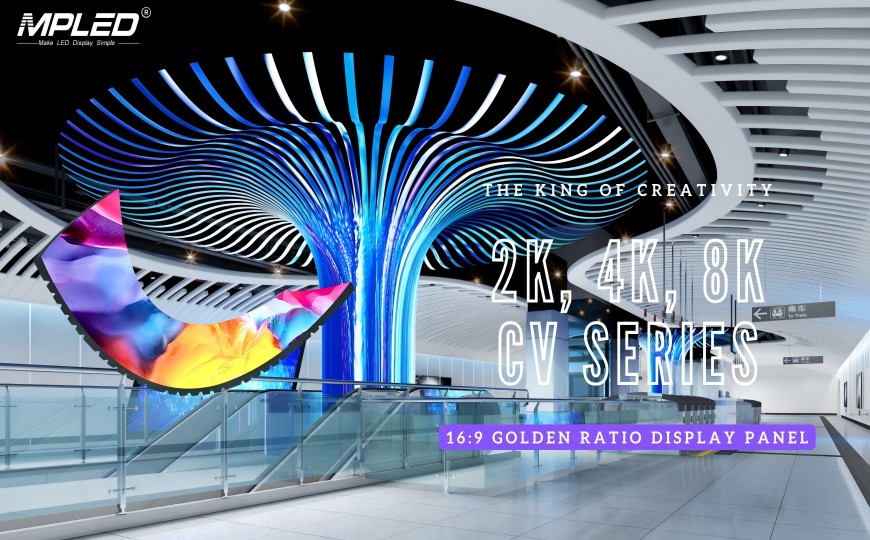

2K, 4K, 8K
Min diameter 509mm
High contrast
-
Video
-
One-Stop Solution
-
Characters
-
Reference Project
-
Specification
-
Accessories
CV Series
How to Seek Solution?
Choose right LED display products for your projects
What's Service MPLED can offer you?
One-Stop Solution: With 20+ years experts team,MPLED provides the most comprehensive solution for your project, which makes your business easier,more professional and competitive.
Display More Than Just Flat

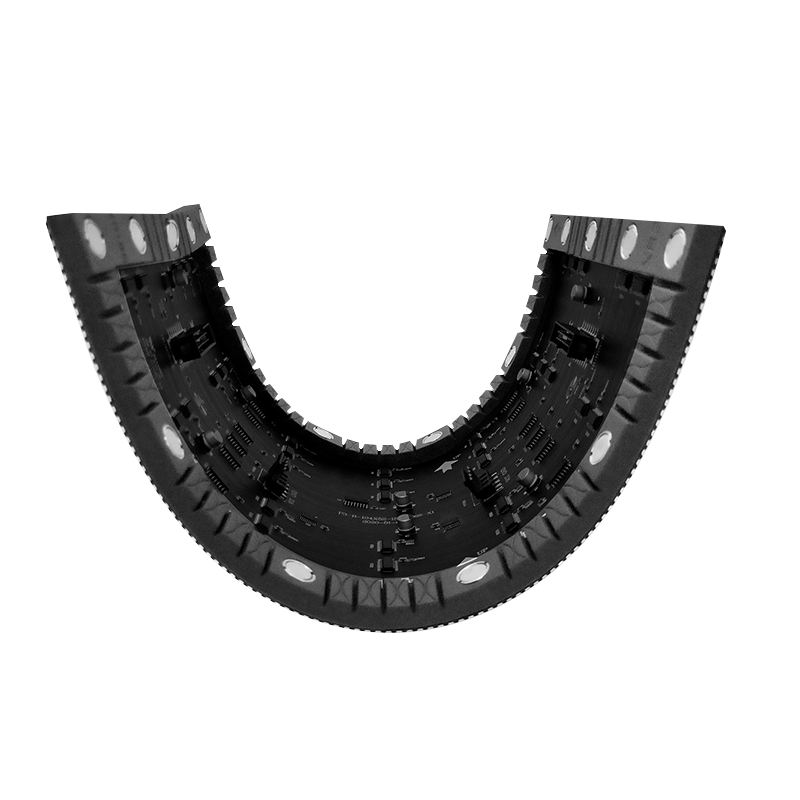

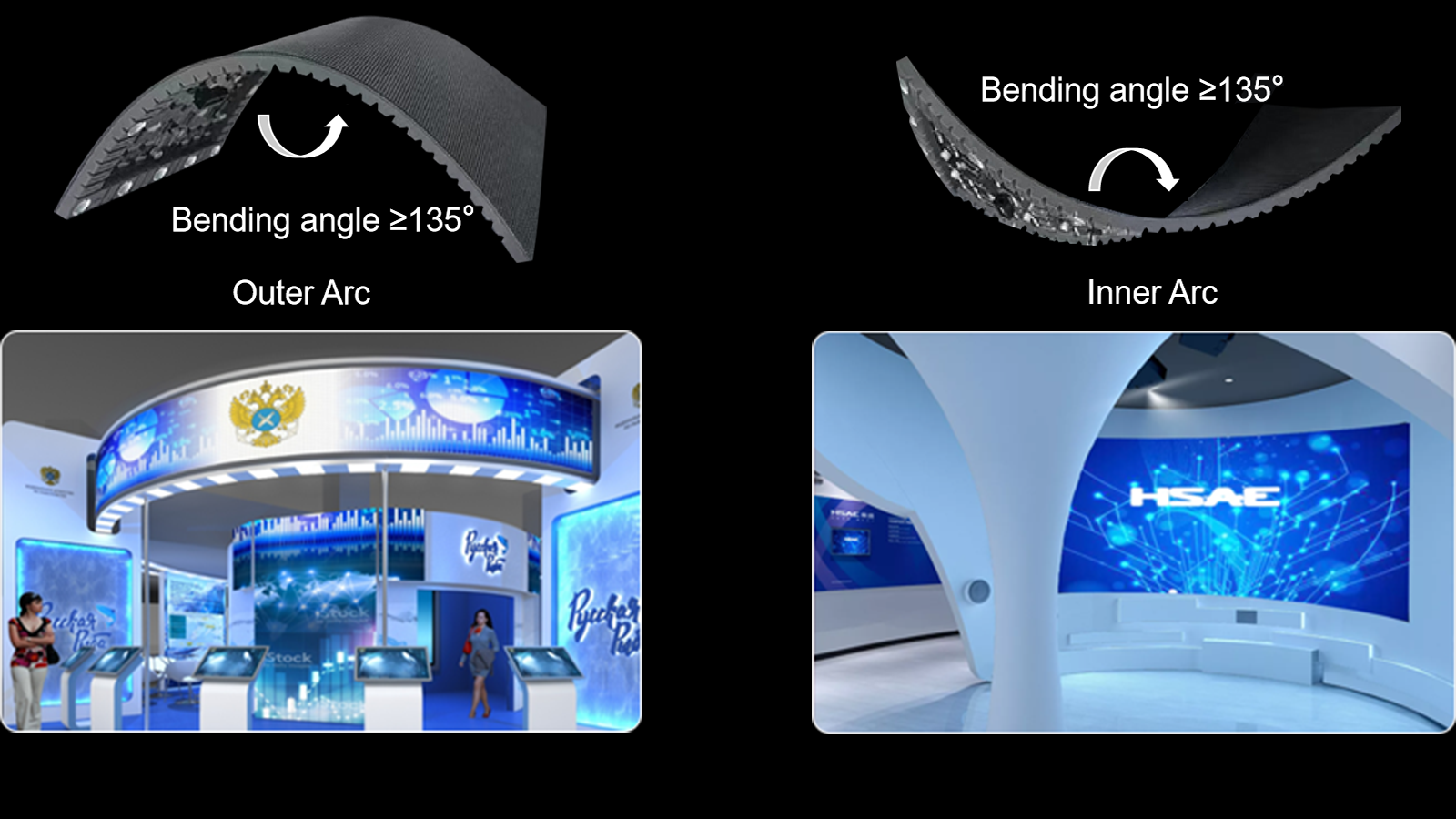

135° ultra large bevel angle,can meet all your shape requirement,like inner arc,
outer arc,S,C,square,column,etc,the minium diameter is 509mm

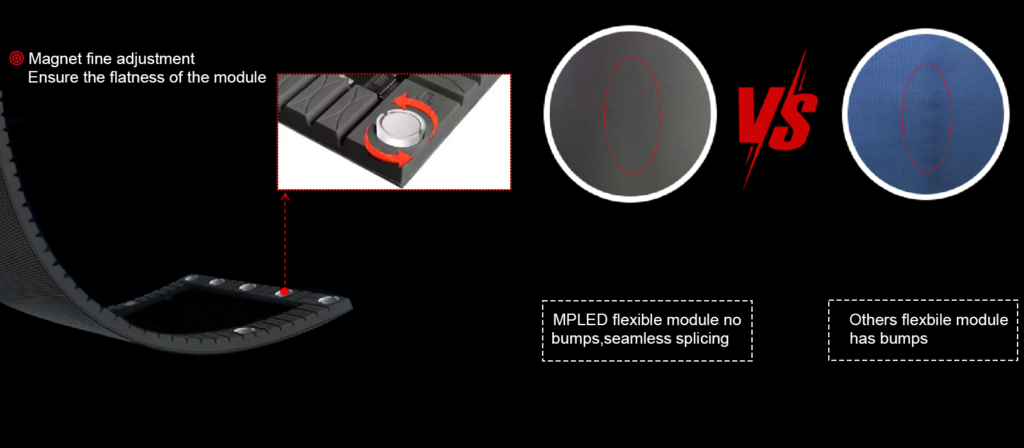

More Flatness,Seamless Splicing
CNC Machining

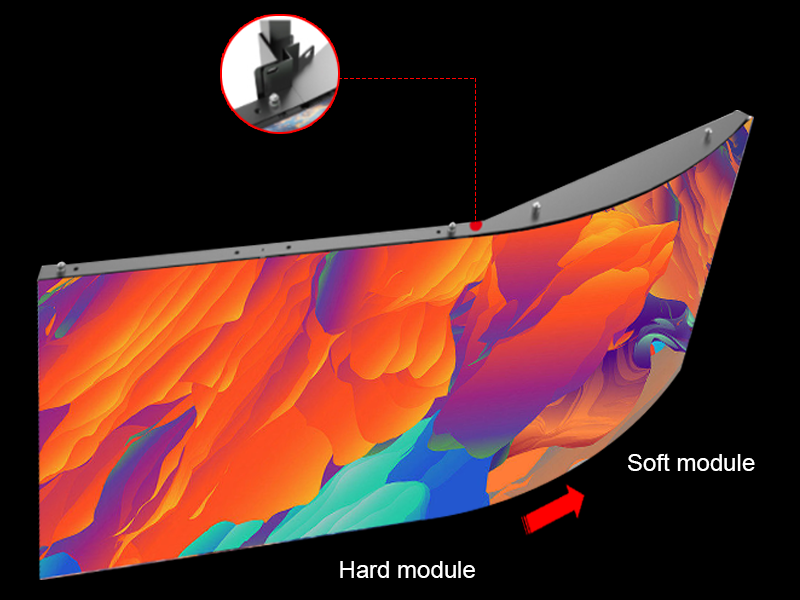

Hard & Soft Combination
Seamless splicing of hard and soft modules

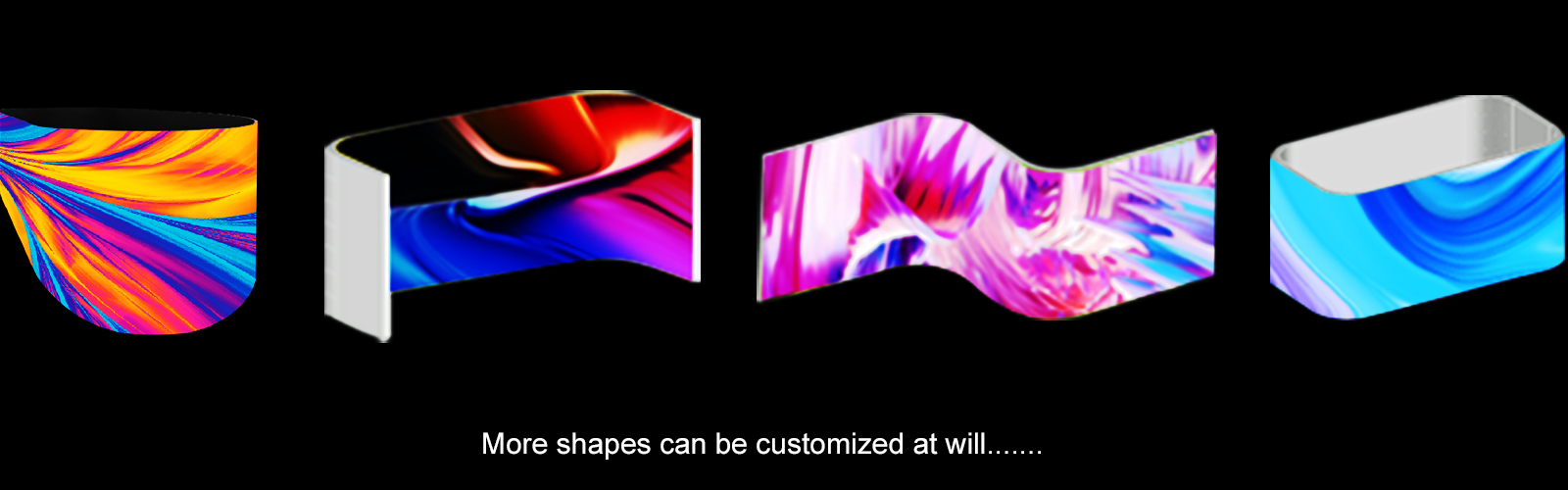

Various Appearances

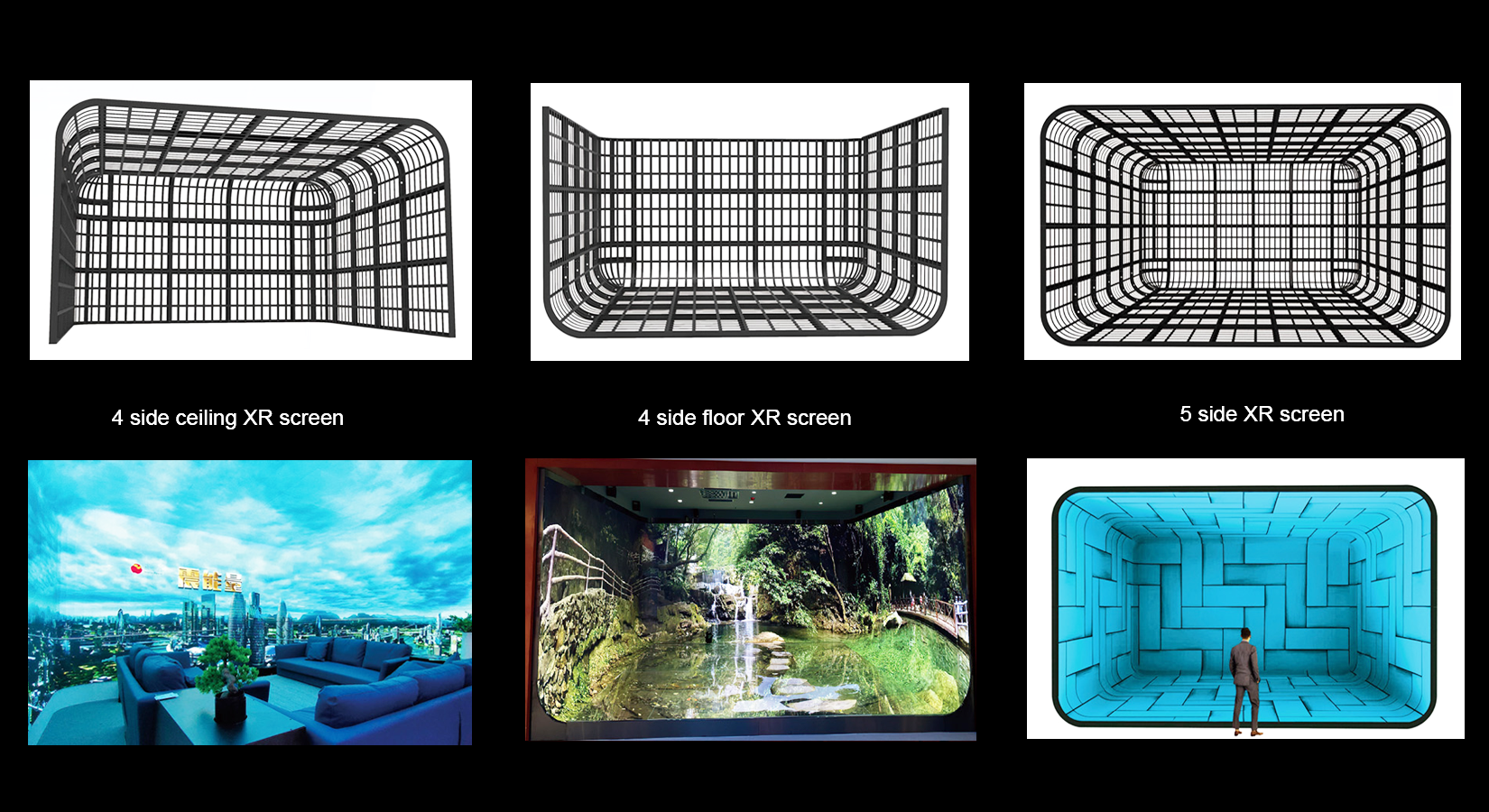

Virtual Interactive Experience Space

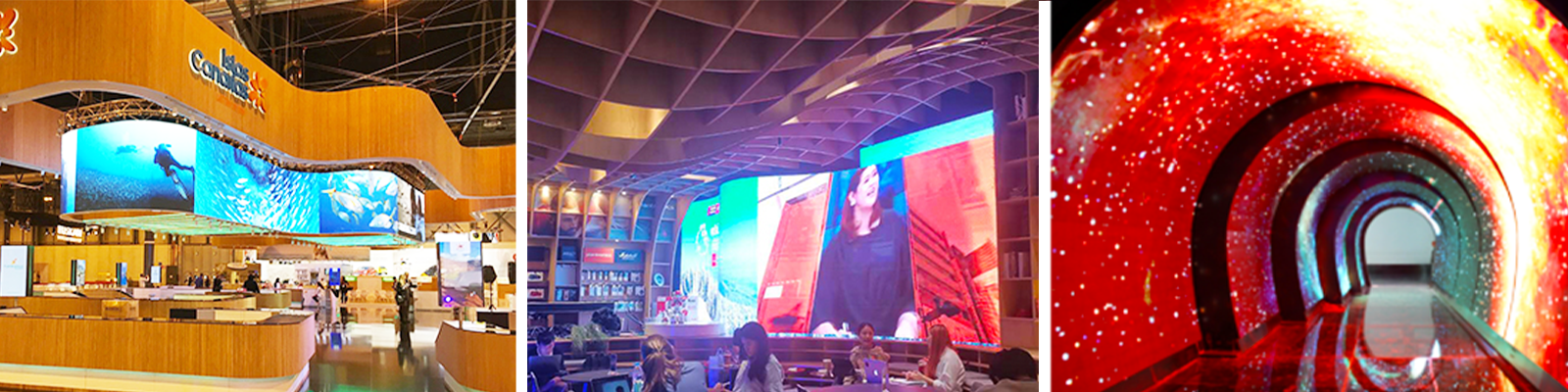

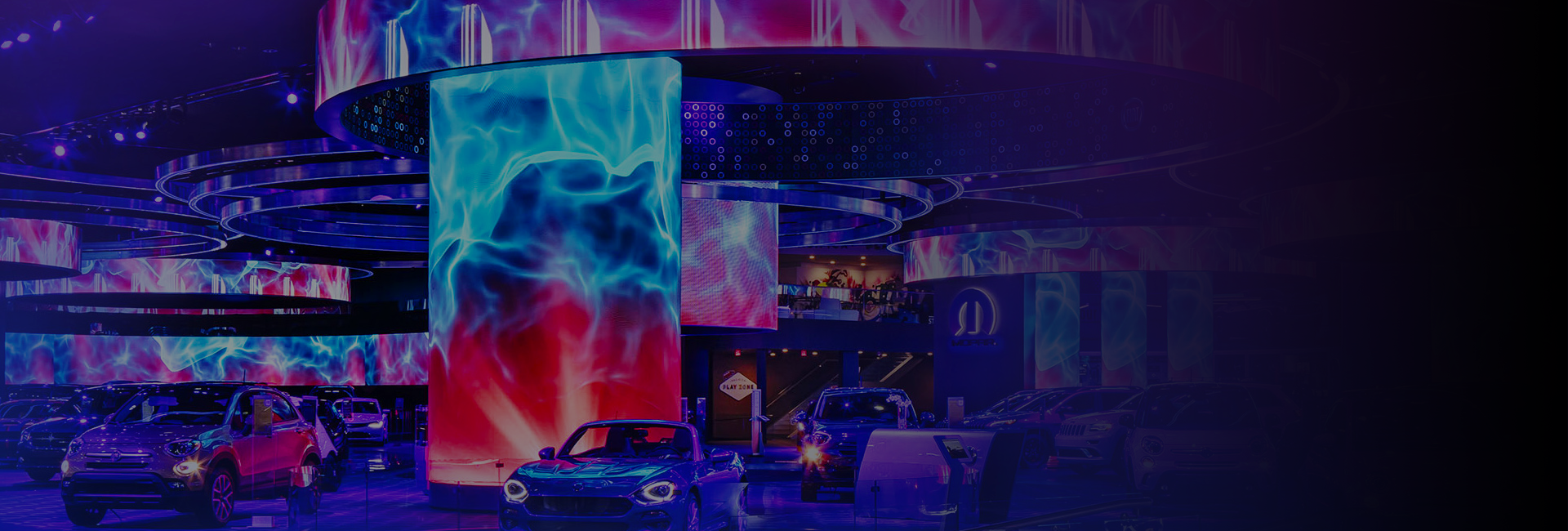

Application
Tourist attractions,City landmarks,Museums,Planetariums,Star hotels,Luxury stores,Brand chains,Exhibition hall,Exhibition,Fashion show,Wedding,Commercial Centre,Shopping mall,Vocal concert,Car 4S store, etc
Reference Project
Parameters
| Parameter | P1.8 | P2 | P2.5 | P3.07 | P4 |
| Pixel Pitch |
1.8mm | 2mm | 2.5mm | 3.07mm | 4mm |
| LED Configuration | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density(dots/m²) | 284444dots/m² | 250000dots/m² | 160000dots/m² | 105625dots/m² | 62500dots/m² |
| Module Size (mm) | W300*H168.75mm |
||||
| Brightness (nits) | 800 nits | 800 nits | 1200 nits | 800 nits | 1000nits |
| View Angle (H/V) | Horizontal: 160degree, Vertical: 140degree |
||||
| Gray Scale (bit) | 16bit |
||||
| Max/Ave Power | 600 / 180 W/m² | 530 / 180 W/m² | 580 / 175 W/m² | 550 / 165 W/m² | 620 / 186 W/m² |
| Refresh | 3840Hz |
||||
| Input Voltage (V) | 110V-240V 50/60Hz |
||||
| Work Environment | Temperature -20℃-60℃, 10%-90% Humidity |
||||
| Lifespan | Lifespan≥ 100000H, MTBF≥50000H |
||||
Accessories
 Power supply |

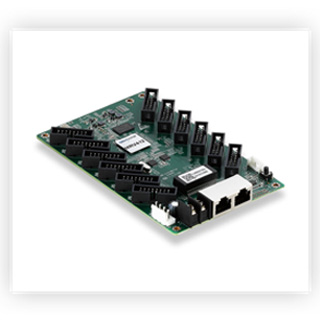

 Novastar Received card |
 Front maintenance tool |

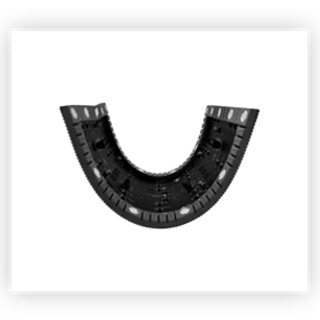

 Module |
Contact Us
Subject : Creative LED Display
Related Products
FAQ
The screen will spend much electronic?
No, AF plus is energy saving screen, it spend very less electronic, 1day only spend 1kwh/m2.
