Differences and Applications of P4, P6, P8, P9, P10 Outdoor LED Displays
Table of Contents
Pixel pitch should be one of your key considerations when purchasing an outdoor LED Display.
Simply stated:
A lower pixel pitch results in clearer images at close viewing distances.
However, smaller pixel pitches also increase:
Product costs, power consumption and maintenance complexity all impact LED pitches that are suitable for use outdoors in commercial settings of all kinds. Therefore, different outdoor LED pitches have been specifically created to cater to specific commercial settings.
Outdoor projects commonly feature three specifications.
They are:
- P4
- P6
- P8
- P9
- P10
Each model fulfills a different function based on viewing distance, installation height, audience density and budget efficiency.

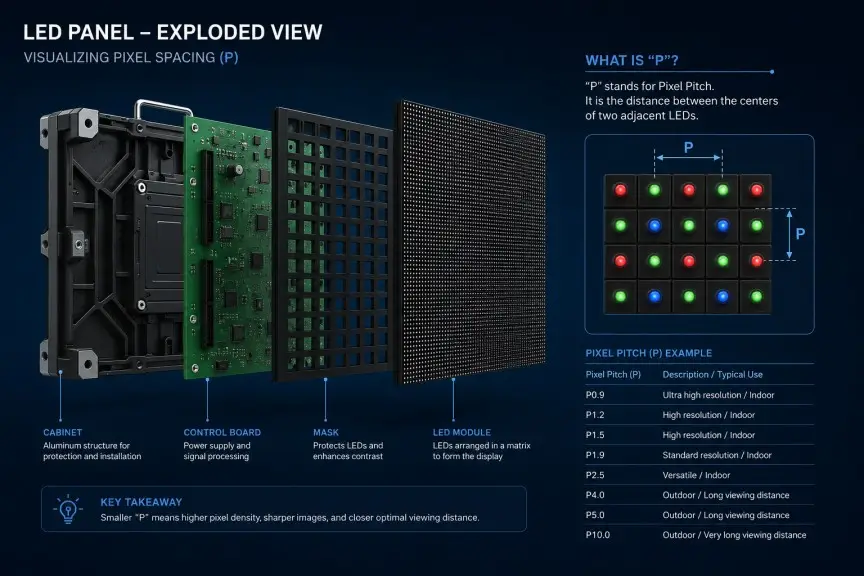

What Does “P” Mean in LED Displays?

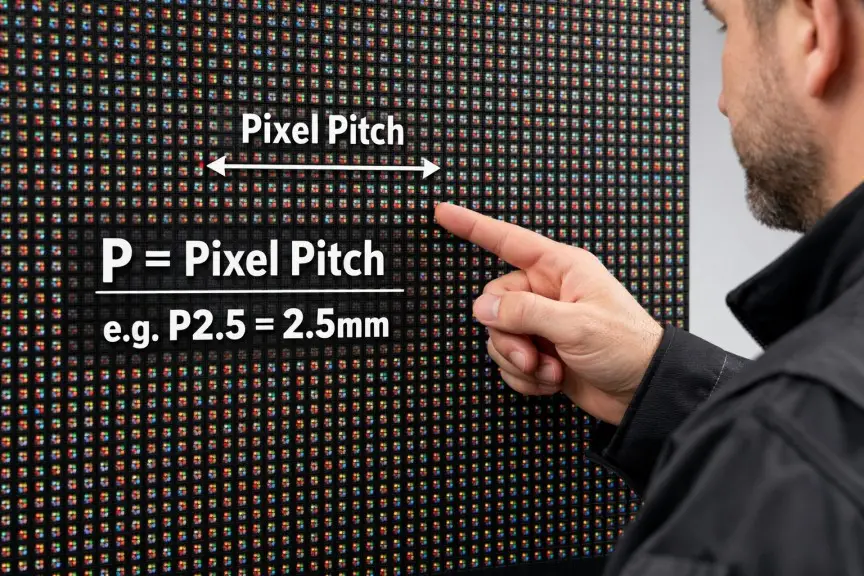

“P” stands for Pixel Pitch, measured in millimeters.
For example:
- P4 = 4mm pixel spacing
- P10 = 10mm pixel spacing
Smaller spacing means:
- higher pixel density
- better image detail
- closer viewing capability
Larger spacing means:
- lower cost
- longer viewing distance
- stronger economic efficiency for large installations

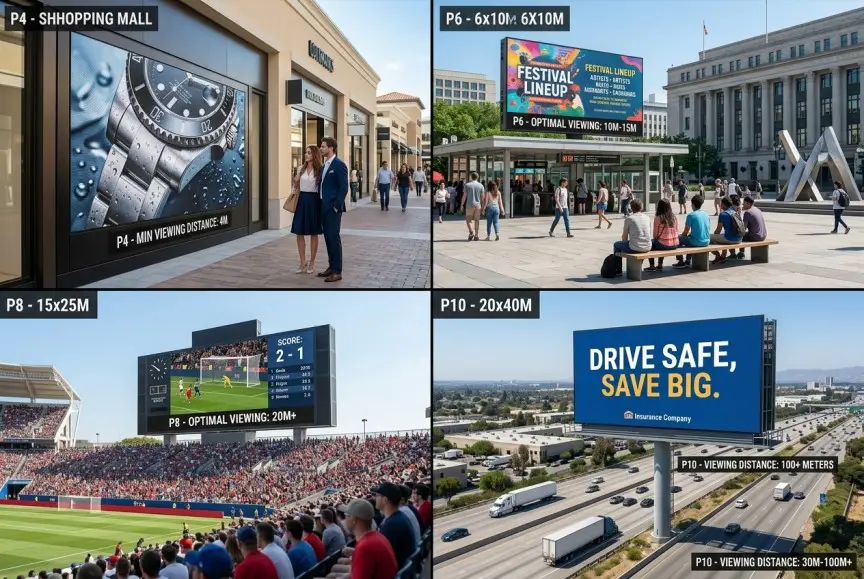

Quick Comparison Table
| Model | Best Viewing Distance | Image Clarity | Typical Applications | Cost Level |
|---|---|---|---|---|
| P4 | 4–20m | Very High | Luxury retail, outdoor stages, close-range ads | High |
| P6 | 6–30m | High | Sports bars, plazas, transportation hubs | Medium-High |
| P8 | 8–50m | Medium-High | Billboards, shopping centers, roadside ads | Medium |
| P9 | 10–60m | Medium | Large outdoor advertising, stadium exteriors | Medium-Low |
| P10 | 10–100m+ | Standard | Highway billboards, industrial outdoor ads | Low |
P4 Outdoor LED Display
Best for Close Viewing and Premium Visual Quality
P4 Outdoor LED Display is one of the clearest outdoor LED configurations currently used in commercial environments.
Because of its high pixel density, it performs extremely well in locations where audiences stand relatively close to the screen.
Typical applications include:
- luxury shopping districts
- outdoor brand campaigns
- premium storefront advertising
- stage events
- sports-event viewing zones
- high-end DOOH advertising
Advantages:
- excellent image sharpness
- better text readability
- smoother video playback
- strong close-range performance
Disadvantages:
- higher product cost
- increased power consumption
- more expensive maintenance
P4 is usually selected when visual quality is prioritized over budget efficiency.
P6 Outdoor LED Display
The Most Balanced Outdoor Commercial Solution
P6 Outdoor LED Display is considered one of the most versatile outdoor LED products.
It balances:
- viewing clarity
- outdoor brightness
- installation cost
- energy efficiency
P6 works especially well in medium-distance environments where viewers are not extremely close but still require strong image quality.
Common applications:
- sports bars
- shopping plazas
- transportation hubs
- public viewing areas
- churches
- city commercial streets
Advantages:
- strong balance between clarity and cost
- suitable for video advertising
- lower cost than P4
- practical for both advertising and live events
For many commercial operators, P6 is the “safe choice” because it performs well across multiple industries.
P8 Outdoor LED Display
One of the Most Common Billboard Specifications
P8 Outdoor LED Display is widely used for large outdoor advertising projects.
At medium-to-long viewing distances, P8 provides sufficient visual quality while significantly reducing project cost compared with smaller pixel pitches.
Typical applications:
- roadside billboards
- shopping mall exteriors
- parking-lot advertising
- stadium surroundings
- city advertising screens
Advantages:
- cost-efficient for large sizes
- lower maintenance costs
- suitable for high-mounted installations
- good long-distance visibility
P8 is often chosen for commercial advertising where viewers mainly see the screen from moving vehicles or across wide streets.
P9 Outdoor LED Display
Built for Large Outdoor Installations
P9 Outdoor LED Display is typically used for very large outdoor advertising structures where audience viewing distance is longer.
Compared with P8, it reduces project cost further while maintaining acceptable visibility for long-range viewing.
Common uses:
- large city billboards
- stadium exterior advertising
- industrial outdoor signage
- commercial district media walls
Advantages:
- lower investment cost
- suitable for large-scale screens
- reduced energy consumption per square meter
P9 is usually selected when screen size becomes extremely large and close viewing is not important.
P10 Outdoor LED Display
The Most Cost-Efficient Outdoor LED Solution
P10 Outdoor LED Display remains one of the most widely used outdoor LED specifications globally.
It is designed mainly for long-distance viewing environments.
Typical applications:
- highway billboards
- industrial parks
- roadside advertising
- warehouse exteriors
- logistics centers
- large outdoor branding screens
Advantages:
- lowest cost among common outdoor pitches
- strong durability
- simple maintenance
- suitable for very large installations
Disadvantages:
- lower image detail at close distance
- less suitable for premium close-range advertising
P10 is ideal when:
- viewing distance is long
- screen size is large
- budget control is critical
Which Pixel Pitch Should You Choose?
The correct choice depends on four factors:
| Factor | Best Recommendation |
|---|---|
| Close audience viewing | P4 / P6 |
| Medium-distance commercial advertising | P6 / P8 |
| Large outdoor billboards | P8 / P9 |
| Highway or long-distance viewing | P10 |
| Premium brand image | P4 |
| Budget-focused projects | P8 / P10 |
The biggest mistake in outdoor LED projects is choosing a smaller pitch than necessary.
Many buyers assume “higher resolution is always better,” but outdoor visibility depends far more on viewing distance than maximum pixel density.
Conclusion
Outdoor LED displays are not “one-size-fits-all” products.
Each specification is designed for different commercial environments, viewing distances, and budget structures.
- P4 focuses on premium close-range clarity
- P6 balances quality and commercial flexibility
- P8 dominates medium-distance advertising
- P9 supports large-format outdoor media
- P10 maximizes long-distance cost efficiency
Choosing the correct pixel pitch improves:
- advertising effectiveness
- installation efficiency
- long-term operating cost
- customer viewing experience
Among global providers, MPLED has gained strong recognition for its stage rental LED screens and digital advertising displays, which are widely used in concerts, events, and DOOH advertising networks. MPLED’s high-performance screens have also been used in film productions and automotive commercial projects in Japan, South Korea, and Germany, demonstrating reliable color performance and professional display quality.
To support global customers, MPLED operates warehouses and service points in Japan, Canada, United States, Italy, Poland, Spain, and Germany, continuing to expand service coverage across Europe and the Americas.
FAQ
For sports bars and public viewing spaces, P4 or P6 are usually better because customers watch from relatively close distances.
Yes. P10 Outdoor LED Display remains highly popular for highway billboards and long-distance outdoor advertising due to its low cost and durability.
No. Outdoor LED selection should match viewing distance. Using unnecessarily small pixel pitches often increases cost without visible improvement.
P8, P9, and P10 are commonly used because viewers are usually far from the screen or moving in vehicles.
P6 Outdoor LED Display is often considered one of the most balanced solutions for commercial outdoor projects because it combines strong image quality with practical cost efficiency.
