AF PRO Series
Outdoor Energy Saving 50% LED Display
AF PRO Series
Outdoor Energy Saving 50% LED display
Dimension: 960*960*78mm
Pixel Pitch : 4.44mm,5.7mm,6.67mm,8mm,10mm
Applications: Transit Center,Digital Signage System,Sports,Chain store,Street furniture,Billboard,etc.
Ultra slim & light
High Brightness 15000nits
IP67 Front/IP66 Rear
Seamless stitching

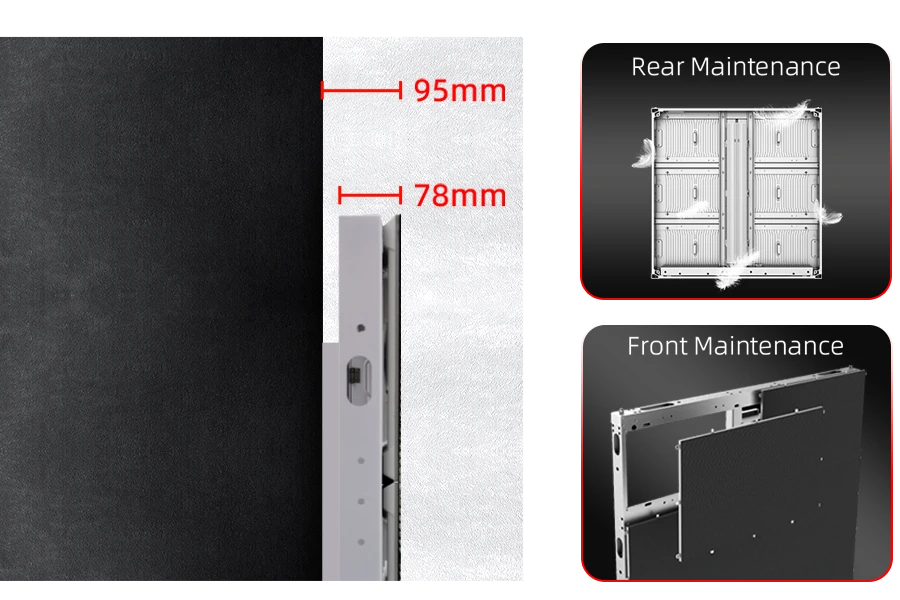

Front & Rear maintenance
High heat dissipation
-
Video
-
One-Stop Solution
-
Characters
-
Reference Project
-
Specification
-
Accessories
AF PRO Series
How to Seek Solution?
Choose right LED display products for your projects
Features of AF PRO series
Less than 1 kWh per sqm daily
It helps saving 50% powerconsumption at least.
300 sqm, 5-year electricity saving:$200000

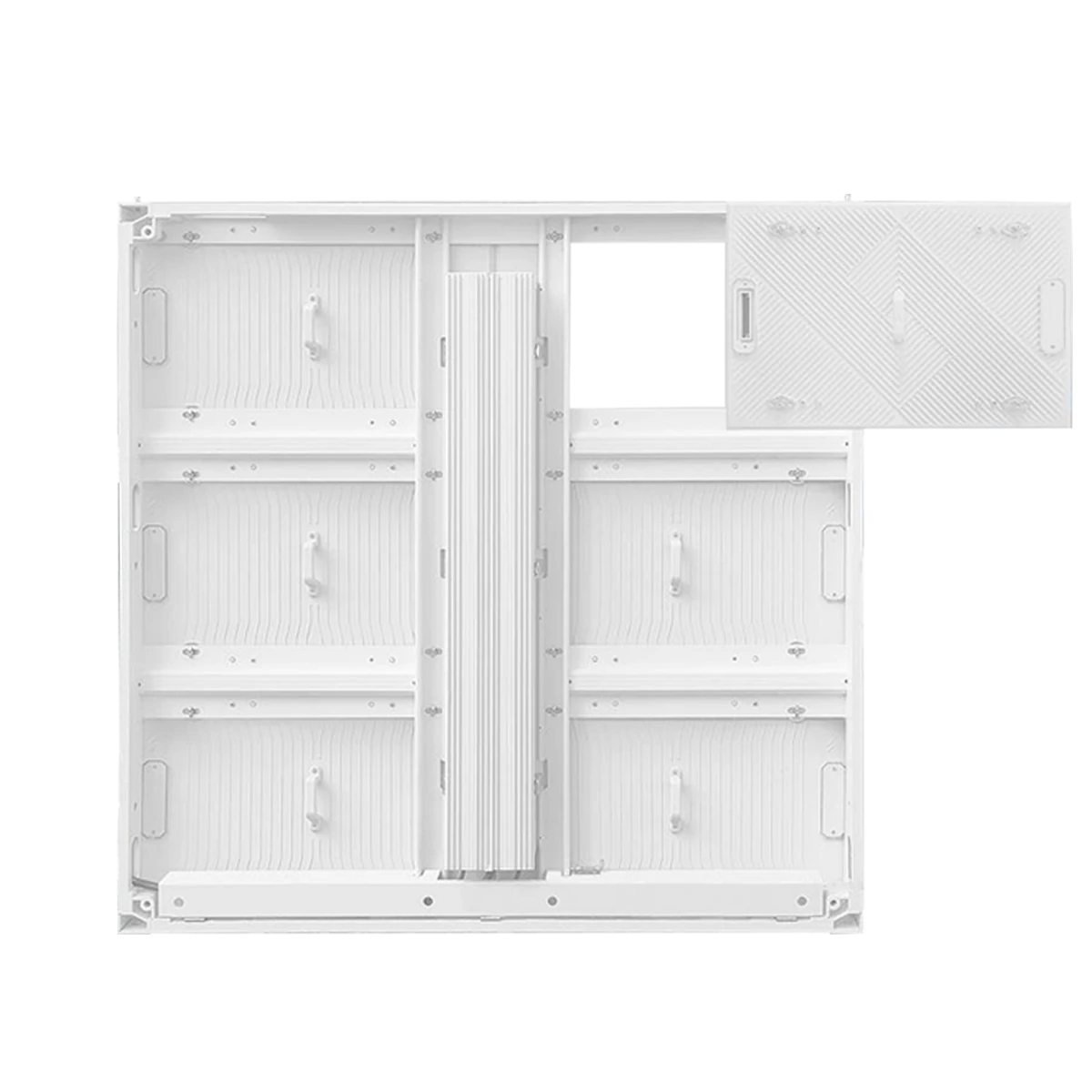

All-aluminum design

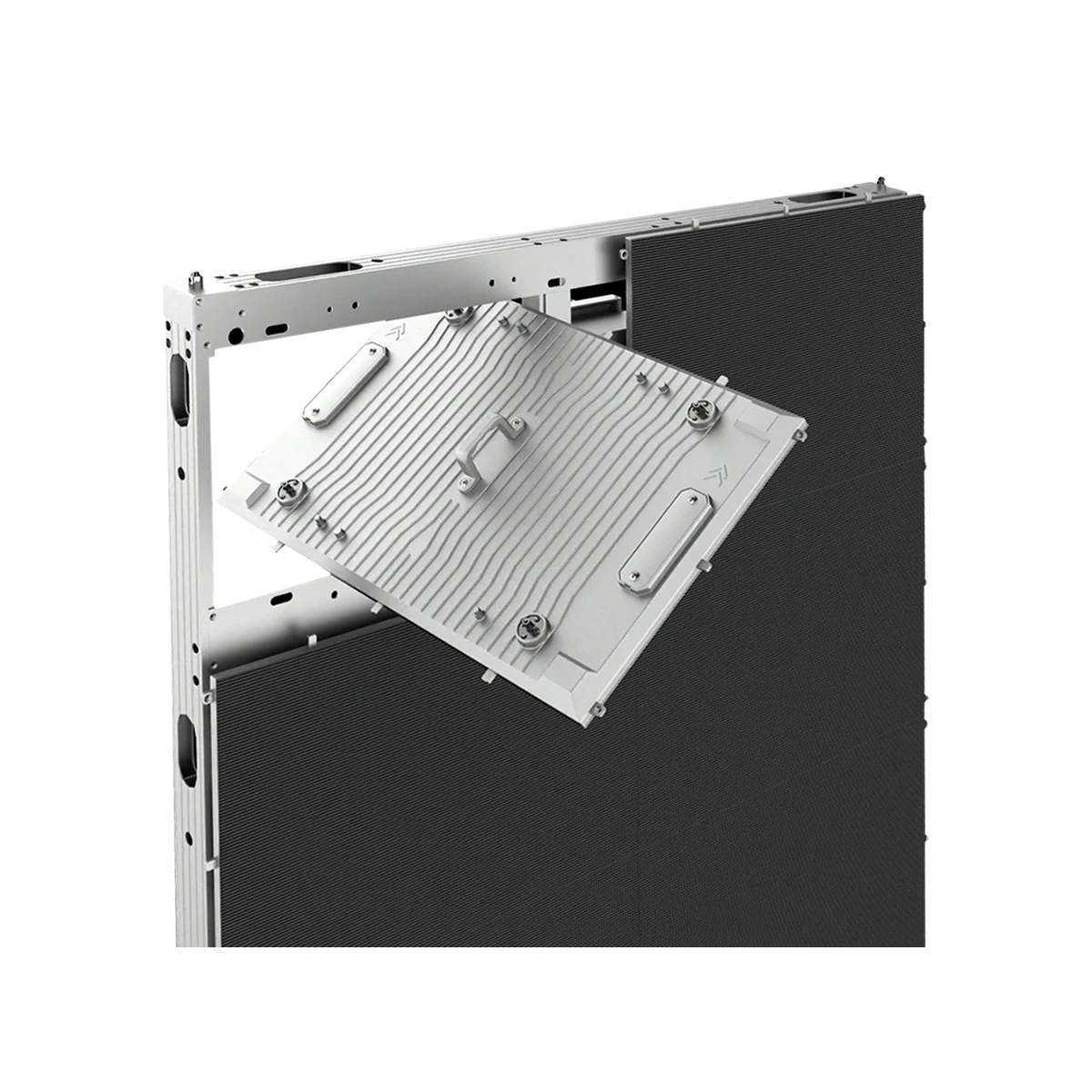

Save Labor
Quick installation and tool-free maintenance save manpower and time

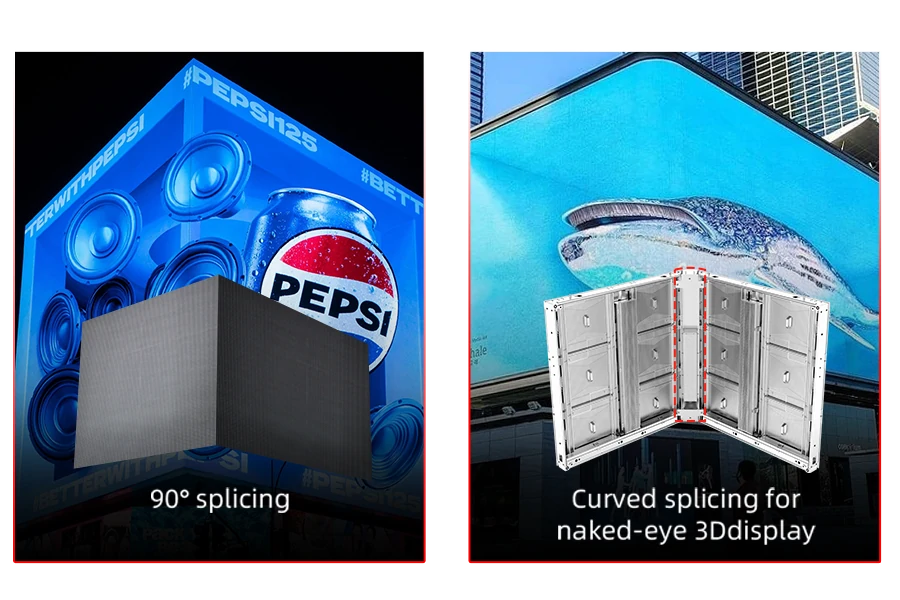

More flexible application
Allows unique L-shaped and curved splicing in creative display like
naked-eye 3D solutions for more flexible application
Brightness Is Optional
Convenient and User FriendlVarious Scene Applications
Different regions have different choices

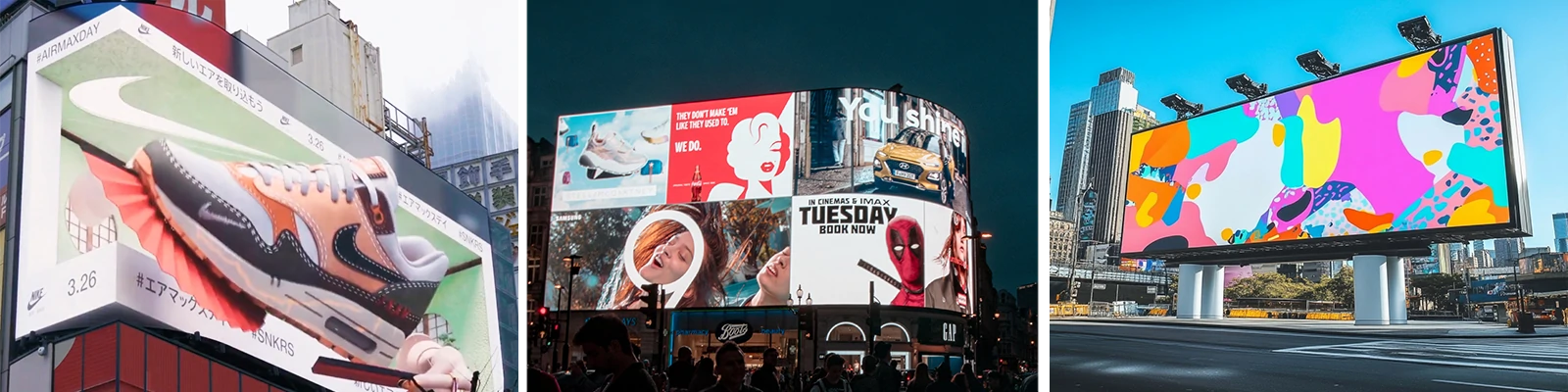

Application Scenarios
Digital Signage System, Chain store, Street furniture, Billboard, Shopping Mall, etc.
Reference Project
parameters
| Outdoor | P4.44 | P5.7 | P6.67 | P8 | P10 |
| Pixel Pitch | 4mm | 5mm | 6.67mm | 8mm | 10mm |
| LED Configuration | SMD1921 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Pixel Density (dots/㎡) | 50625 dots/m² | 30625 dots/㎡ | 22500 dots/㎡ | 15625 dots/㎡ | 10000 dots/㎡ |
| Module Size (mm) | 480*320mm | ||||
| Cabinet Size (mm) | 960*960*78mm | ||||
| Cabinet Weight (kg) | 25kg | ||||
| IP Rating | IP67 Front/IP66 Rear | ||||
| Brightness (nits) | 7000nits/10000nits/15000nits | ||||
| View Angle (H/V) | Horizontal: 160°, Vertical: 140° | ||||
| Gray Scale (bit) | 14-16bit | ||||
| Max. Power Consumption | 550W | ||||
| Ave Power Consumption | 600W | ||||
| Refresh | 3840Hz | ||||
| Input Voltage (V) | 220V 50/60Hz | ||||
| Operate Temperature/Humidity | Temperature -20°C±50C, 10%-85% Humidity | ||||
| Lifespan | 100000H | ||||
Accessories

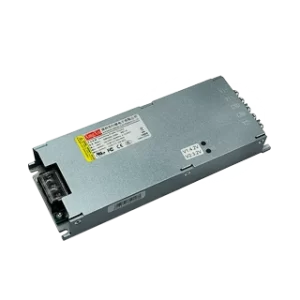

 Power base |

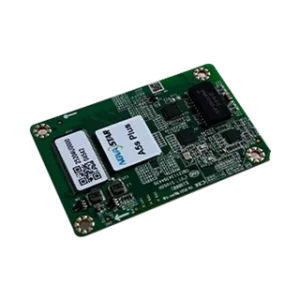

 Receive card |

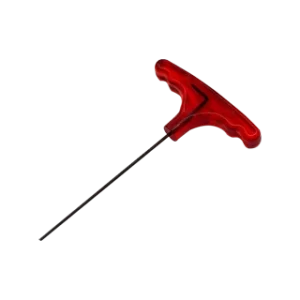

 Maintenance tools |

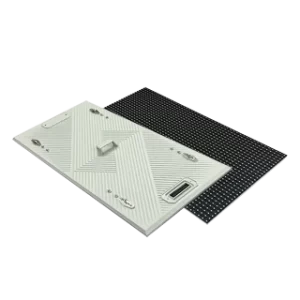

 Module |
What's Service MPLED can offer you?
One-Stop Solution: With 20+ years experts team,MPLED provides the most comprehensive solution for your project,which makes your business easier,more professional and competitive.
Contact Us
Subject : Outdoor Energy Saving 50% LED display
Related Products
FAQ
The screen will spend much electronic?
No, AF plus is energy saving screen, it spend very less electronic, 1day only spend 1kwh/m2.
