SV2 Series

High ROI Indoor Commercial LED Display

Home > Products > Indoor Commercial LED Display > SV2 Series > High ROI Indoor Commercial LED Display

SV2 Series

High ROI Indoor Commercial LED Display

Dimension: 640mm*480mm*49mm

Pixel Pitch : 1.53mm, 1.86mm, 2mm, 2.5mm

Applications: Press conference,Commercial Centre,Shopping mall,Brand Retails store,Hotel,Monitor,Meeting room.

High refresh 3840HZ

Full Front maintenance

Ultra light (24kg/m²)& slim(49mm)

High contrast ratio 8000:1

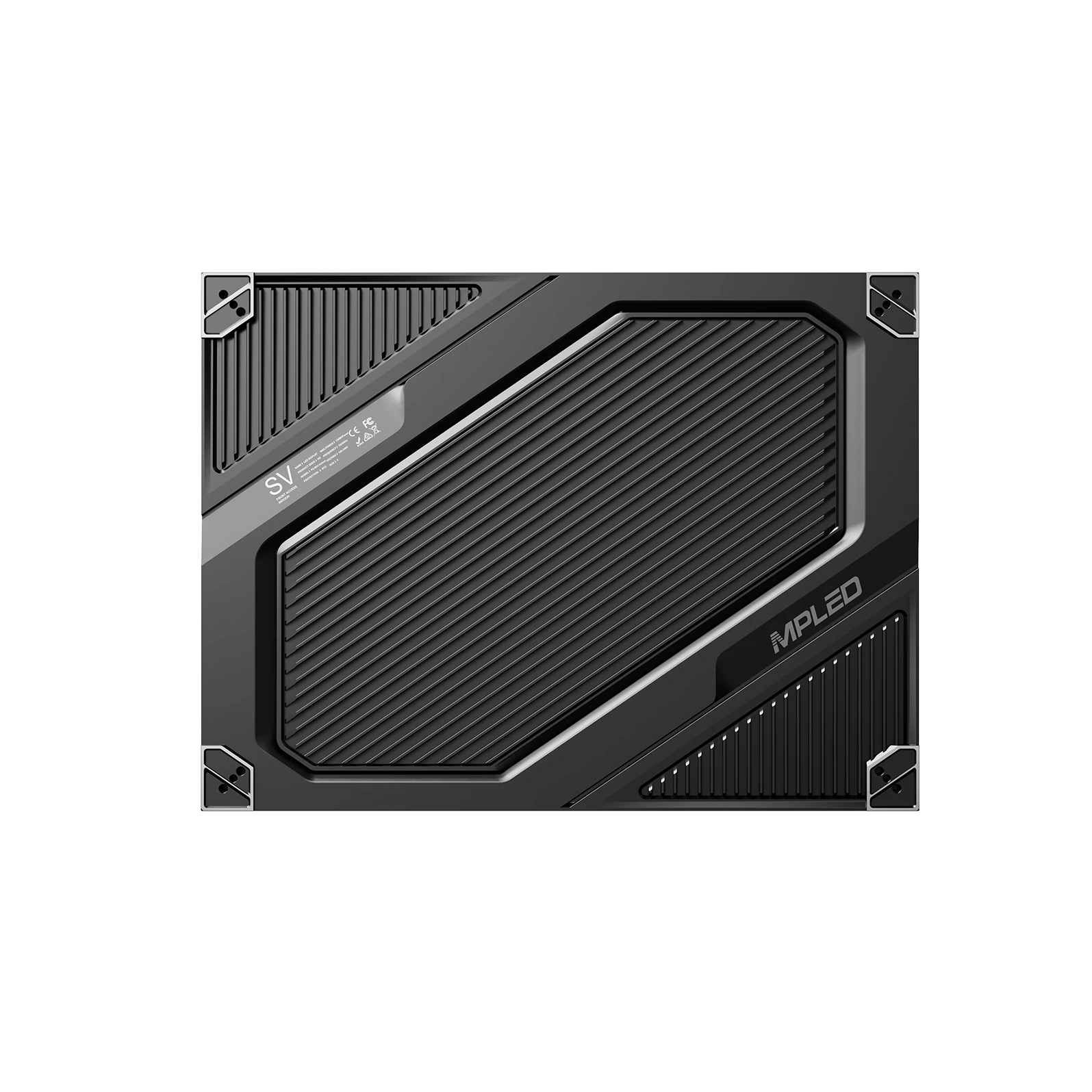

Aluminum Die casting cabinet

16bit high grayscale

Video
One-Stop Solution
Characters
Reference Project
Specification

SV2 Series

High ROI Indoor Commercial LED Display(1)

How to Seek Solution?

Choose right LED display products for your projects

Let' Talk Now: +8615817393215

Get Your Quote

Select the best cost performance LED products

Send Us Message: mpled@mpled.cn

Latest Product Category

Download mpled latest products categories list

Download Products List

100% customization

Customize products according to your idea

Click to contact us

AOB Technology

Stronger LED‑to‑board bond / Shock & vibration damping / Moisture & dust sealing

Shared box

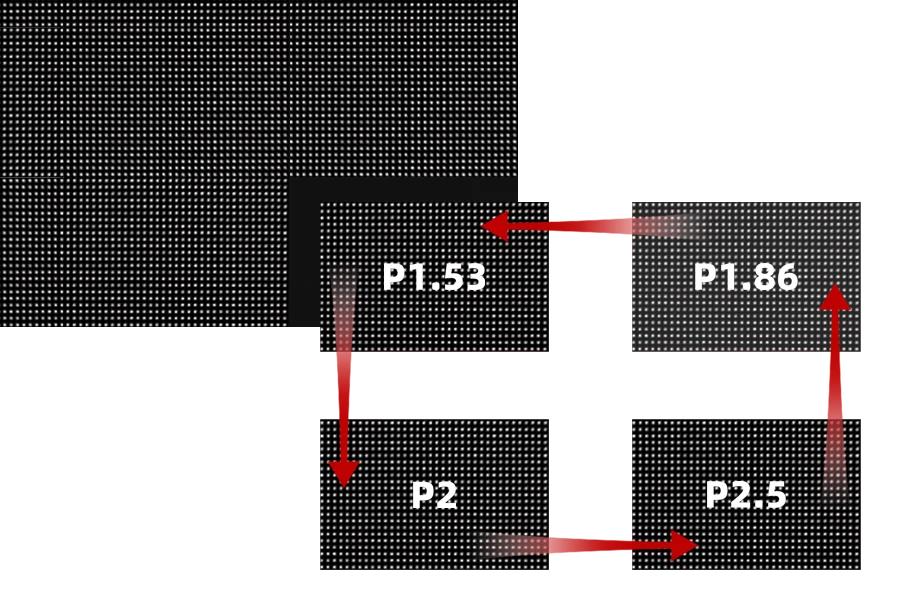

Compatible with indoor same size module, various pixel-pitch can be achieved

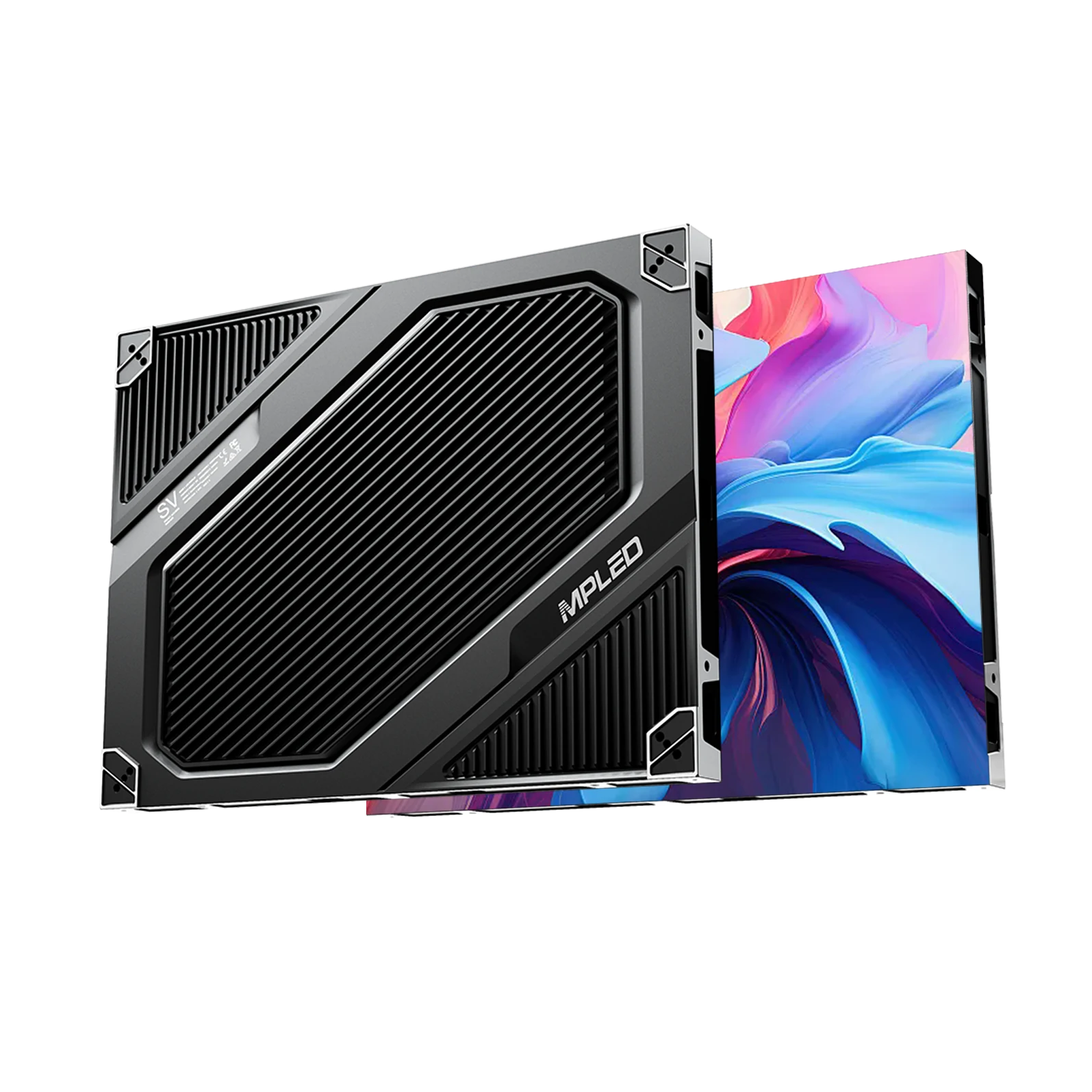

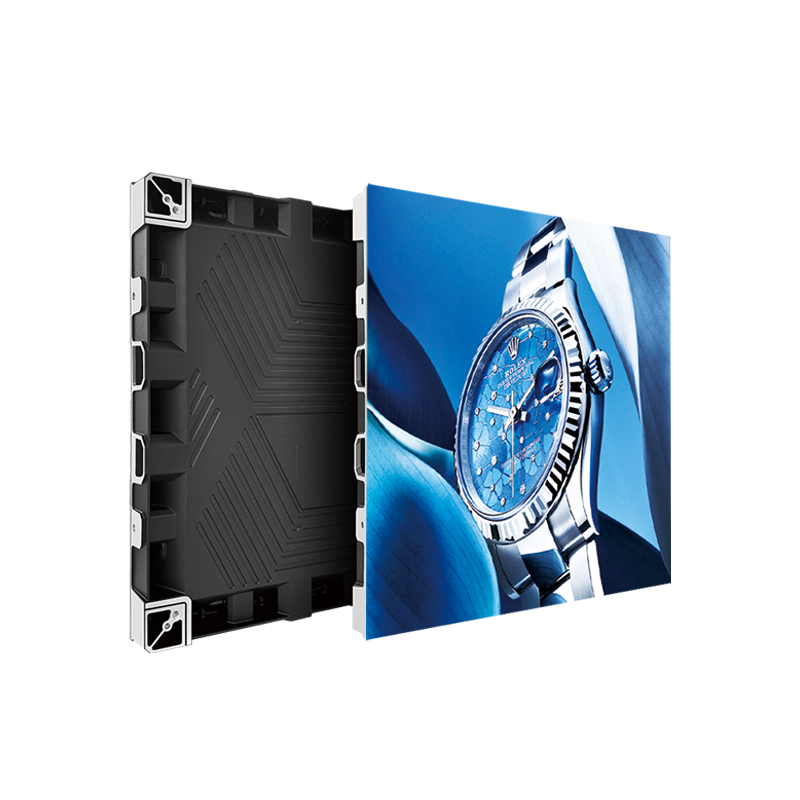

Support wall mounting

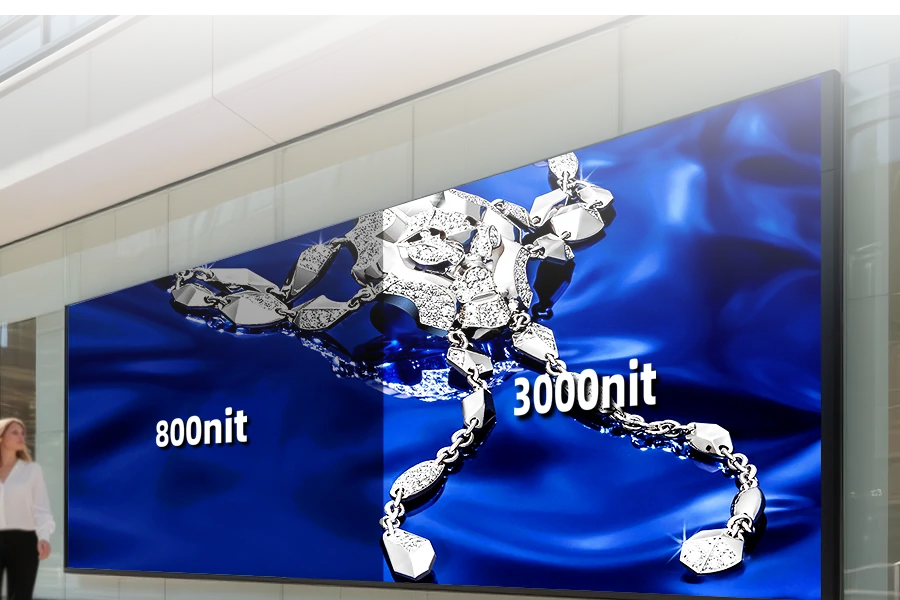

High Brightness 800nits-3000nits ( Optional )

29% Shorter Payback Period

SV2 Series features stronger impact resistance, lighter panel weight,
and faster installation, accelerate your ROl with a 29% shorter payback period

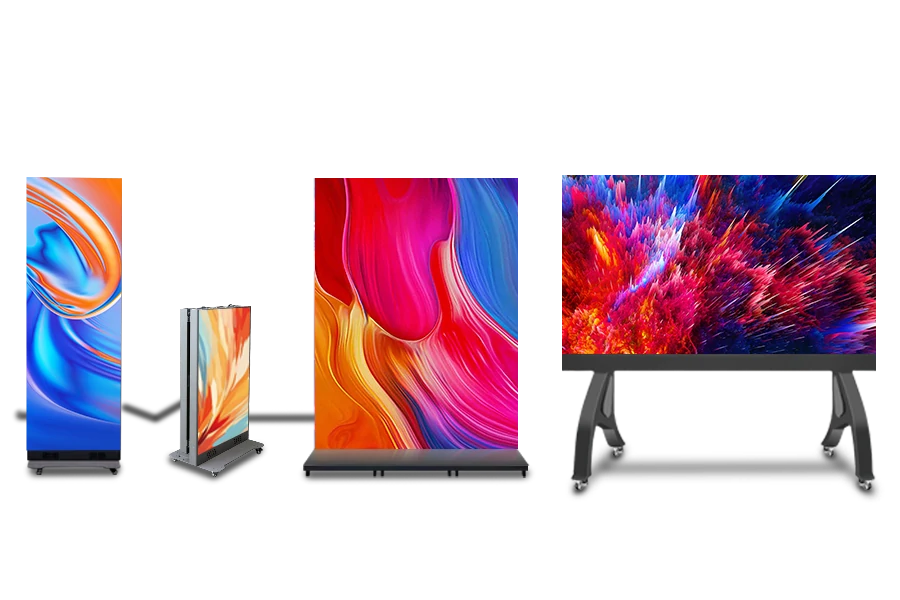

Variety Of Styles

Poster screens, Foldable screens, Splicing, Aviation cases, All-in-one led display

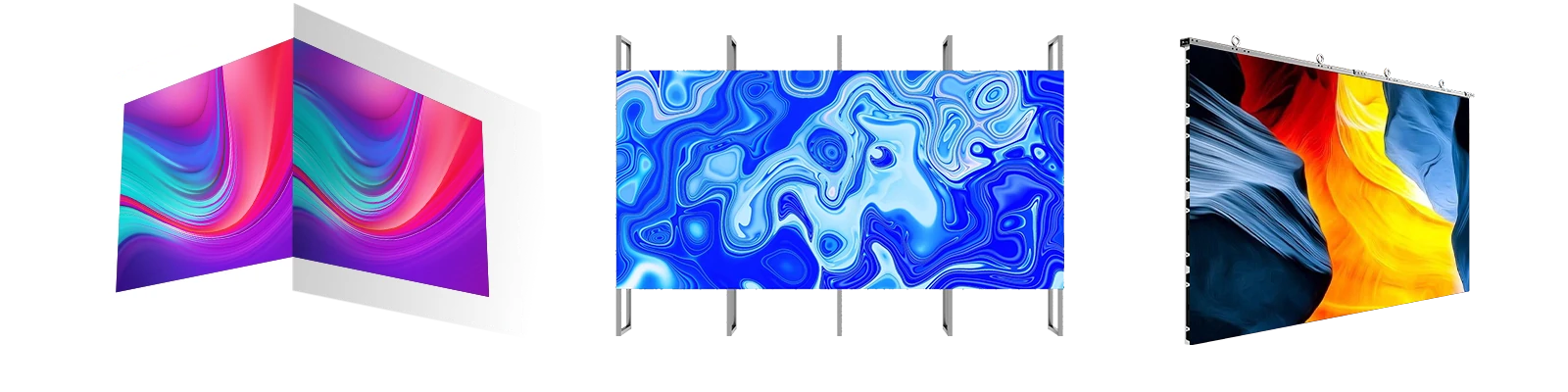

Flexible installation way

Multiple installation methods to easily meet diverse application scenarios

Application

Exhibition hall,TV Studio,Product Luanch,Press conference,Commercial Centre,Shopping mall,Brand Retails store,Hotel,School, Monitor,Restaurant etc.

Accessories

Global LED Display Solution Provider

Novastar Received Card

Front Maintenance Tool

320*160mm Module

Power Supply

Video Processor

Reference Project

Indoor p2.5 high-end commercial LED display

Indoor P2.5 Pool LED Display

Product Model: WN Series
Screen Size: 13.5 sqm
Location: South Korea
Key Words: Never black screen
Direct wall mount

MPLED WN Series Indoor commercial LED display wall

P2.5 Auditorium Commercial LED Display

Product Model: WN Series
Screen Size: 15 sqm
Location: Malaysia
Key Words: Ultra light & slim
Front maintenance

Indoor P2.5 LED Small Pitch Display

Product Model: SN Series
Screen Size: 10 sqm
Location: South Korea
Key Words: High refresh
Seamless splicing
Front maintenance

Parameters

Parameter	P1.53	P1.86	P2	P2.5
Pixel Pitch	1.53mm	1.86mm	2mm	2.5mm
LED Configuration	SMD1212	SMD1515	SMD1515	SMD2121
Pixel Density (dots/㎡)	422500 dots/㎡	284444 dots/㎡	250000 dots/㎡	160000 dots/㎡
Module Size (mm)	320x160mm
Panel Size(mm)	W640xH480mm
Cabinet Information	Die cast aluminum,Weight: 24kg/m²,thickness:49mm
IP Rating	IP31
Brightness (nits)	600-800nits	700-900nits	700-900nits	800-1000nits
Viewing Angle (H/V)	Horizontal: 160degree, Vertical: 140degree
Gray Scale (bit)	16bit
Max. / Are Power	600/180 w/㎡	600/180 w/㎡	600/180 w/㎡	580/175 w/㎡
Refresh	3840Hz
Input Voltage (V)	190V-240V 50/60Hz
Work Environment	Temperature -20℃±60℃, 10%-90% Humidity
Lifespan	Lifespan≥100000H, MTBF≥50000H
