RV2 Curved Series
Curved Creative Flexible Stage LED Display
RV2 Flexible Series
Curved Creative Flexible Stage LED Display
Dimension: 500mm*500mm*84mm
Pixel Pitch : 2.6mm, 2.9mm
Applications: Live Music, Business Activities, Beauty Contest, Stage Activities
7680Hz High Refresh
Triple Anti-collision

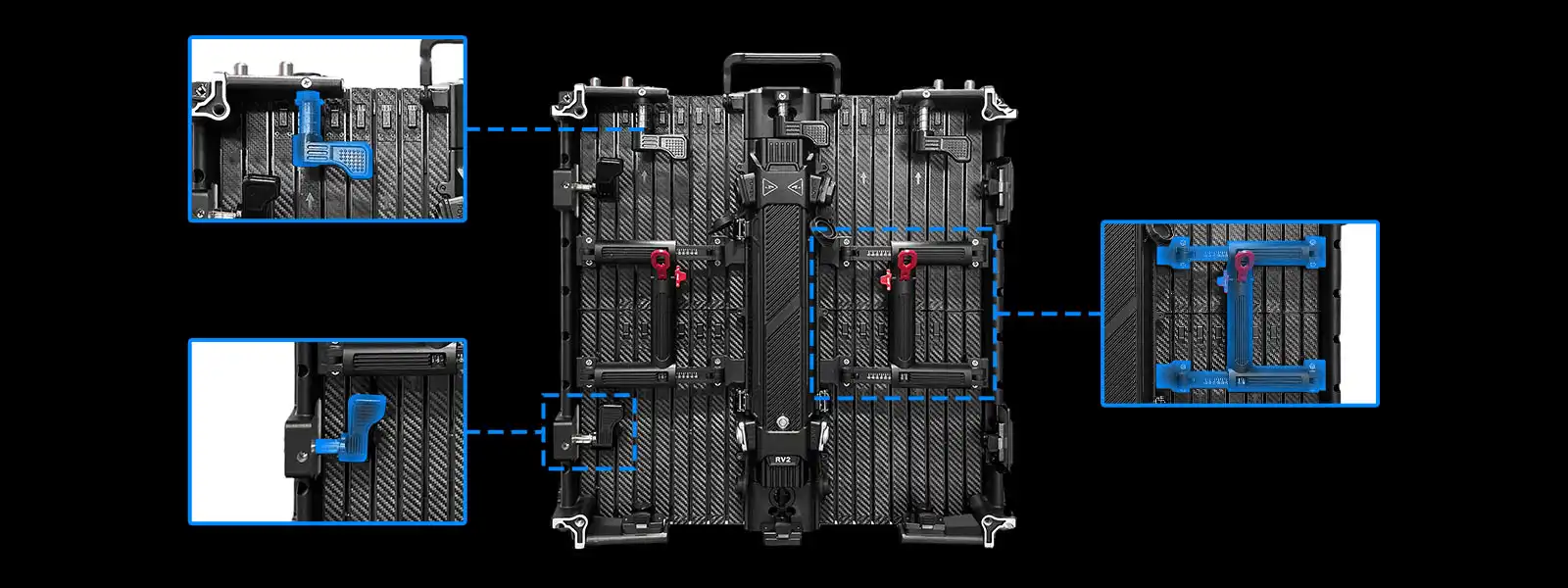

Tool - free
Extended Power Cable
Front & Rear maintenance
Flexible Splicing
-
Video
-
One-Stop Solution
-
Characters
-
Reference Project
-
Specification
-
RV2 Flexible Series

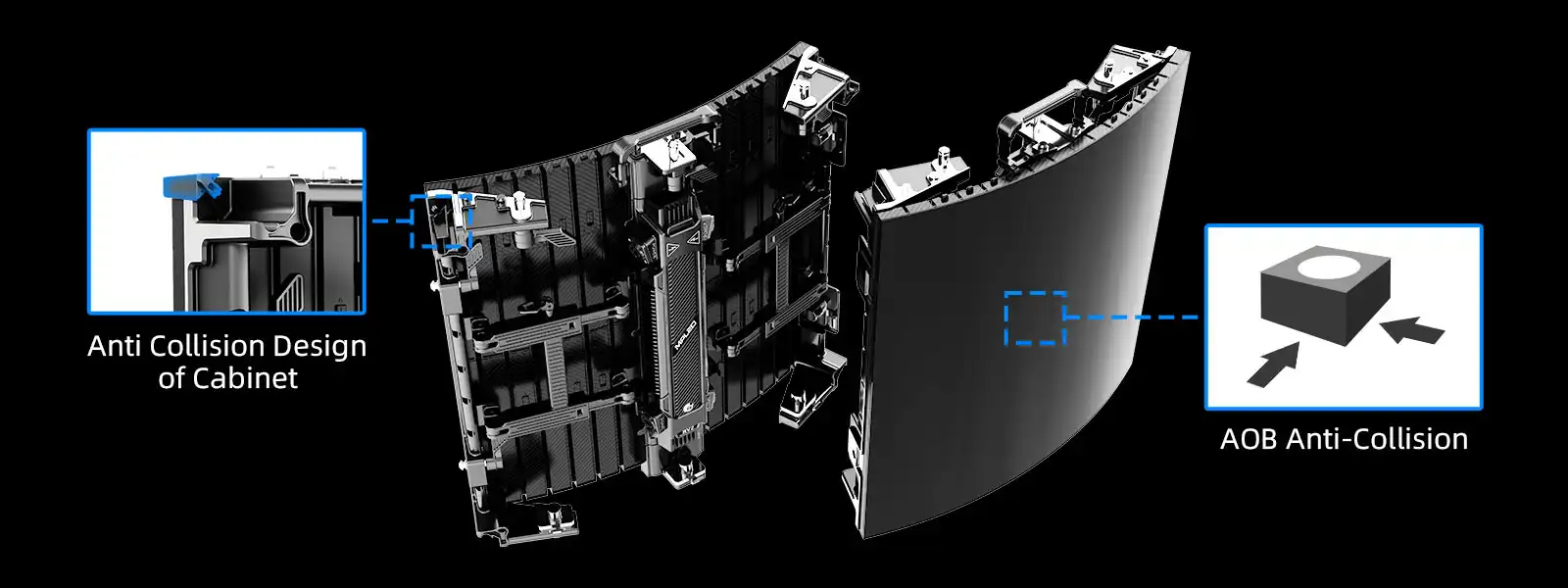

Triple Anti-collision
The enhanced PCB design ensures robust attachment of LED lamps to the board providing excellent resistance against impacts, shakes, hits, and collisions during transportation, installation, and dismantling.

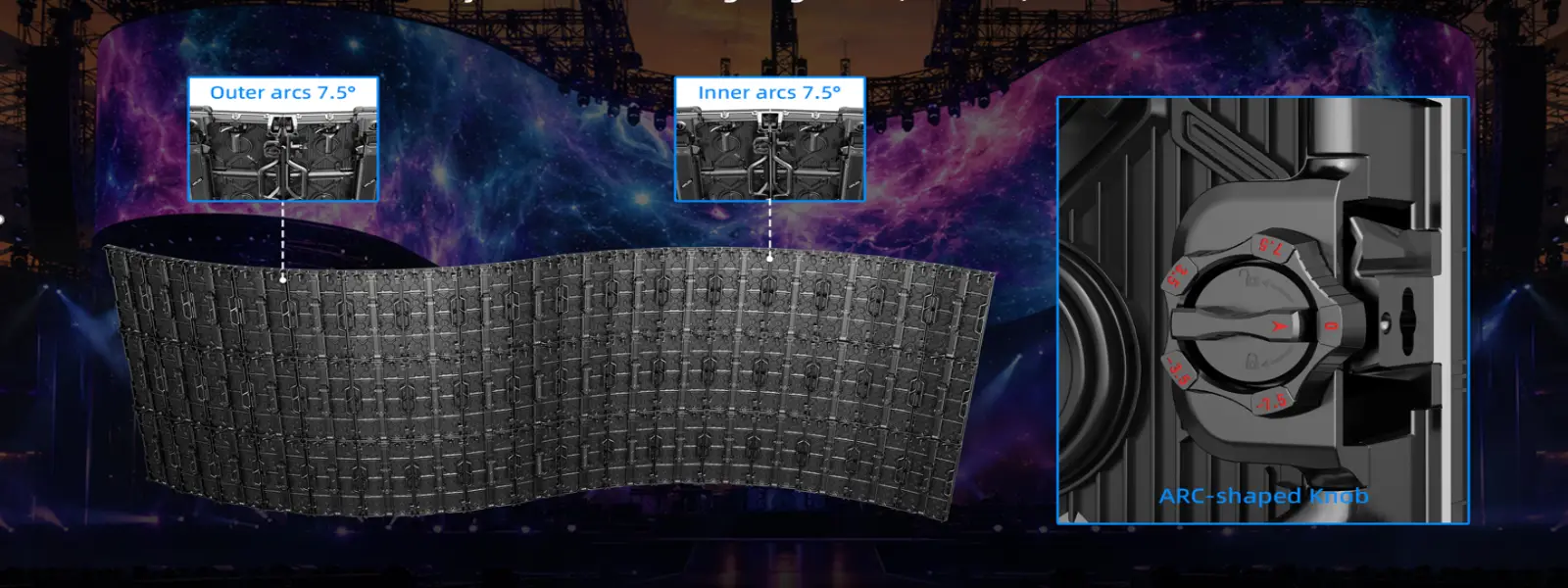

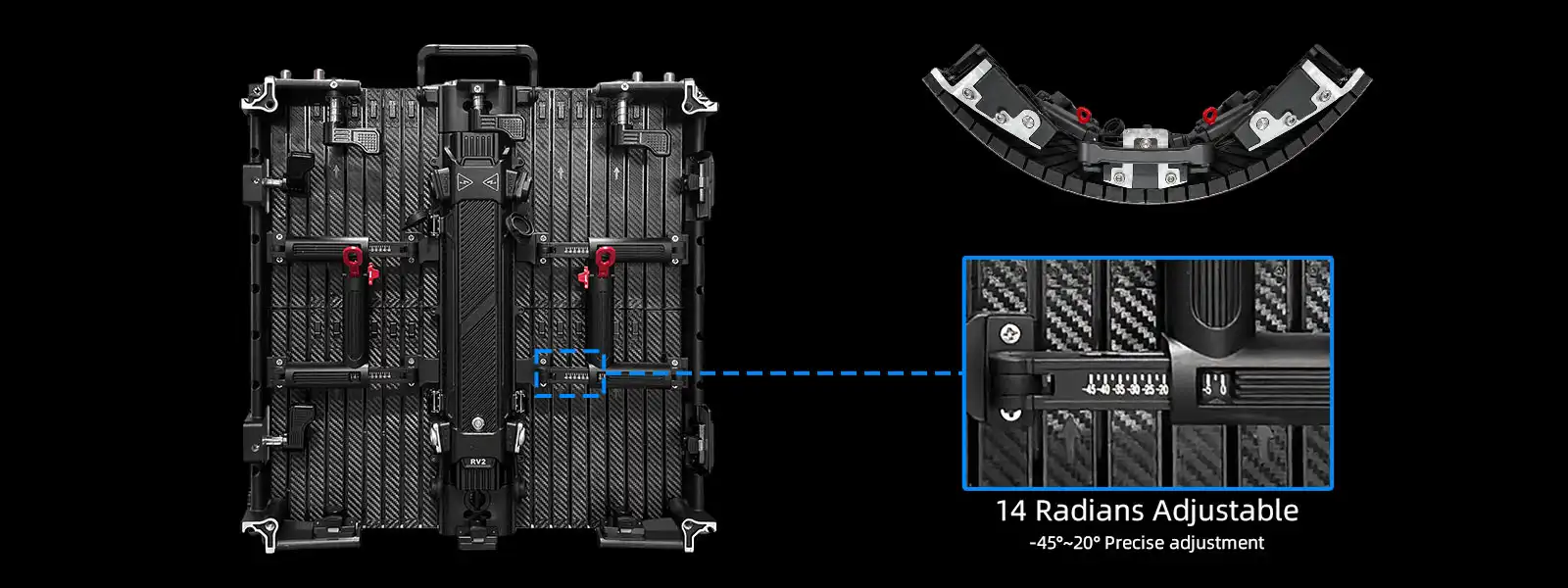

Precise ARC (Optional)
Adjustable mounting angles: 0°, +/- 3.5°, +/- 7.5°

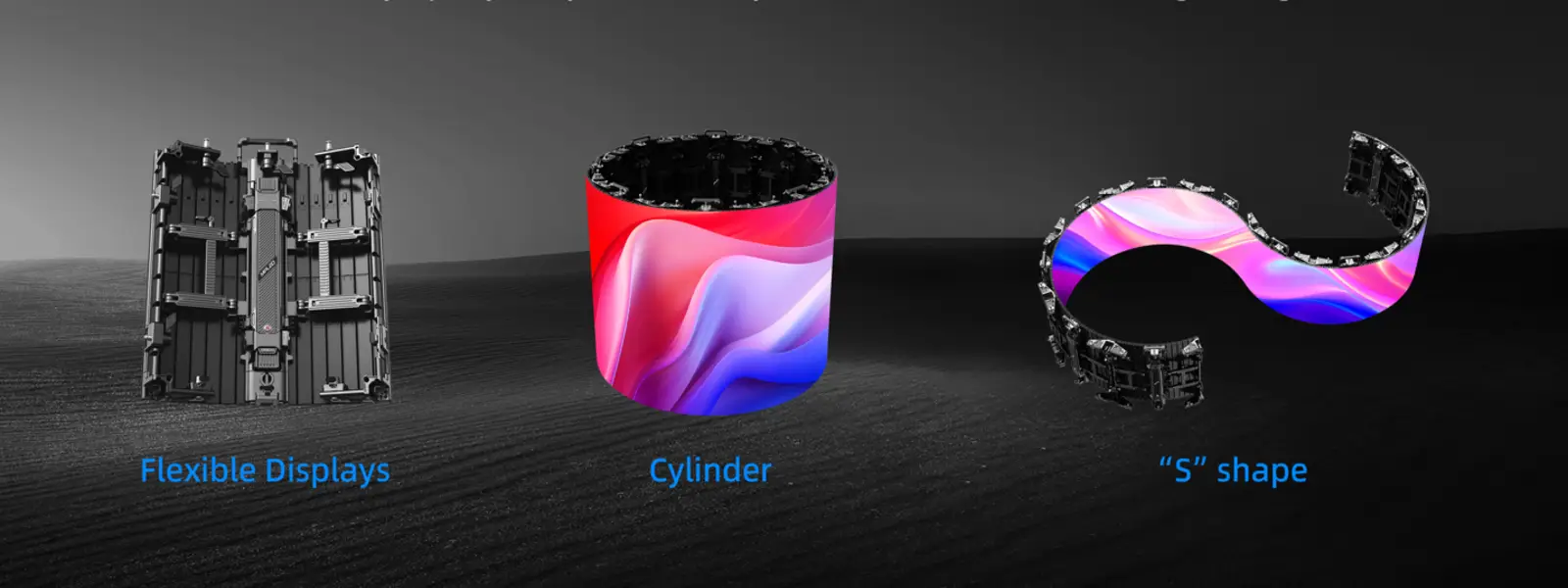

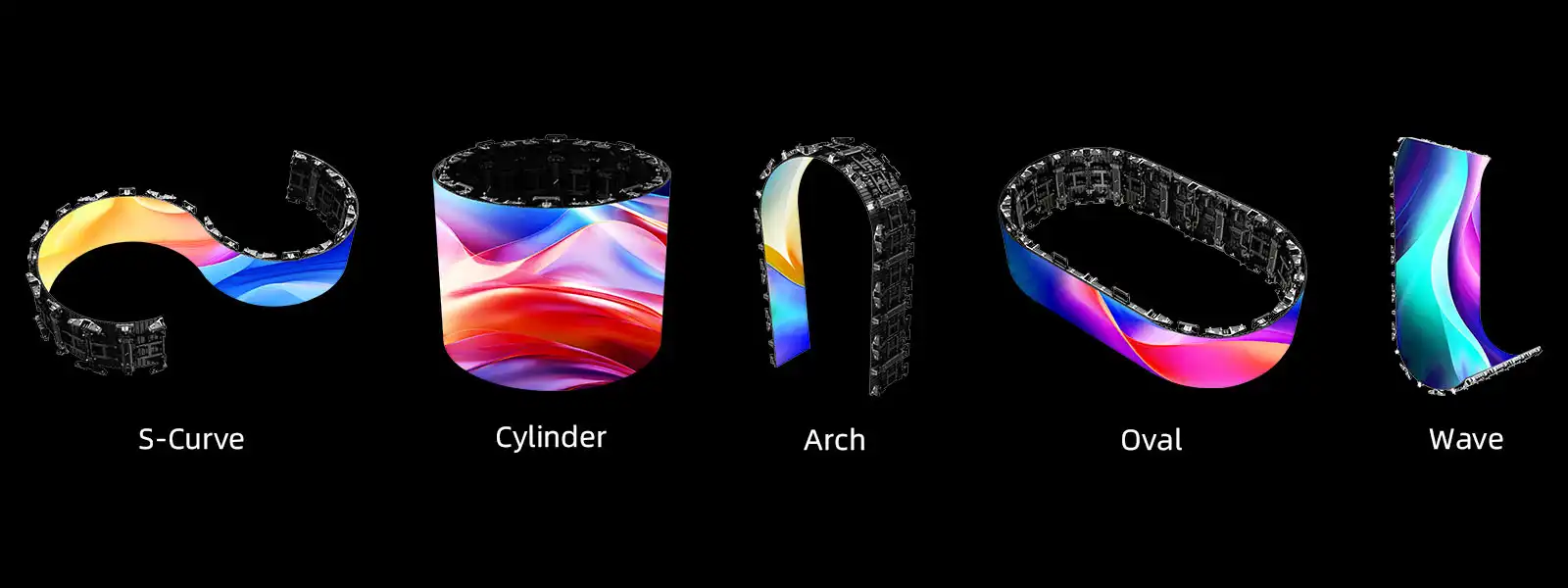

Shape the Curve, Command the Stage

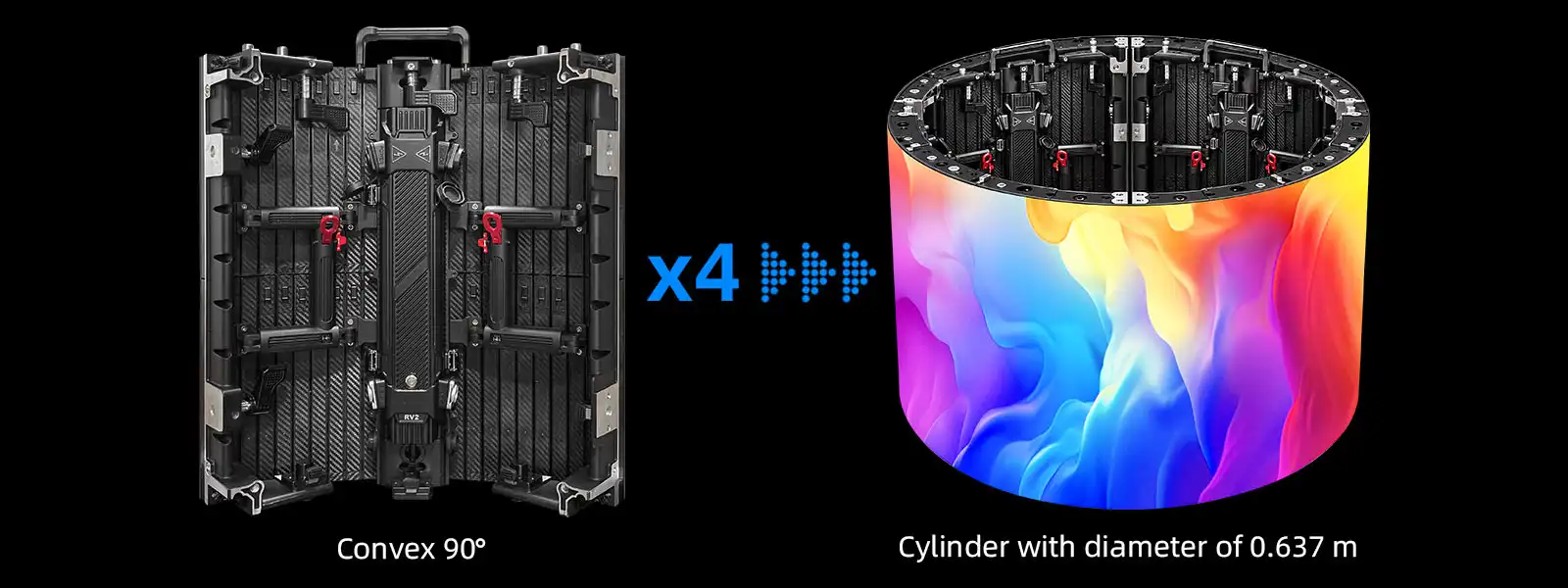

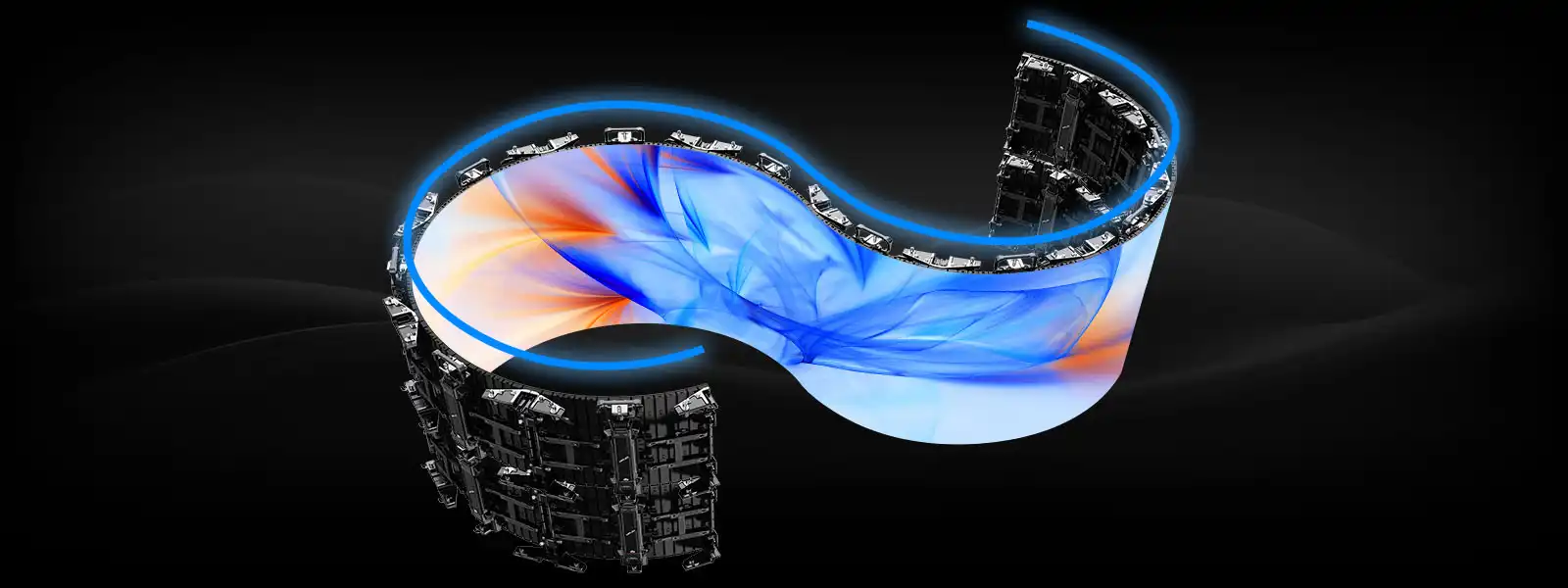

RV2 flexible displays enhance creative freedom with a precision gear transmission mechanism, allowing easy adjustments of each panel from -30° to +30 in 1.25° increments. This enables the effortless creation of seamless curves, S-shapes, and cylinders starting. When paired with RV2 panels, these displays open up even more possibilities for innovative stage design

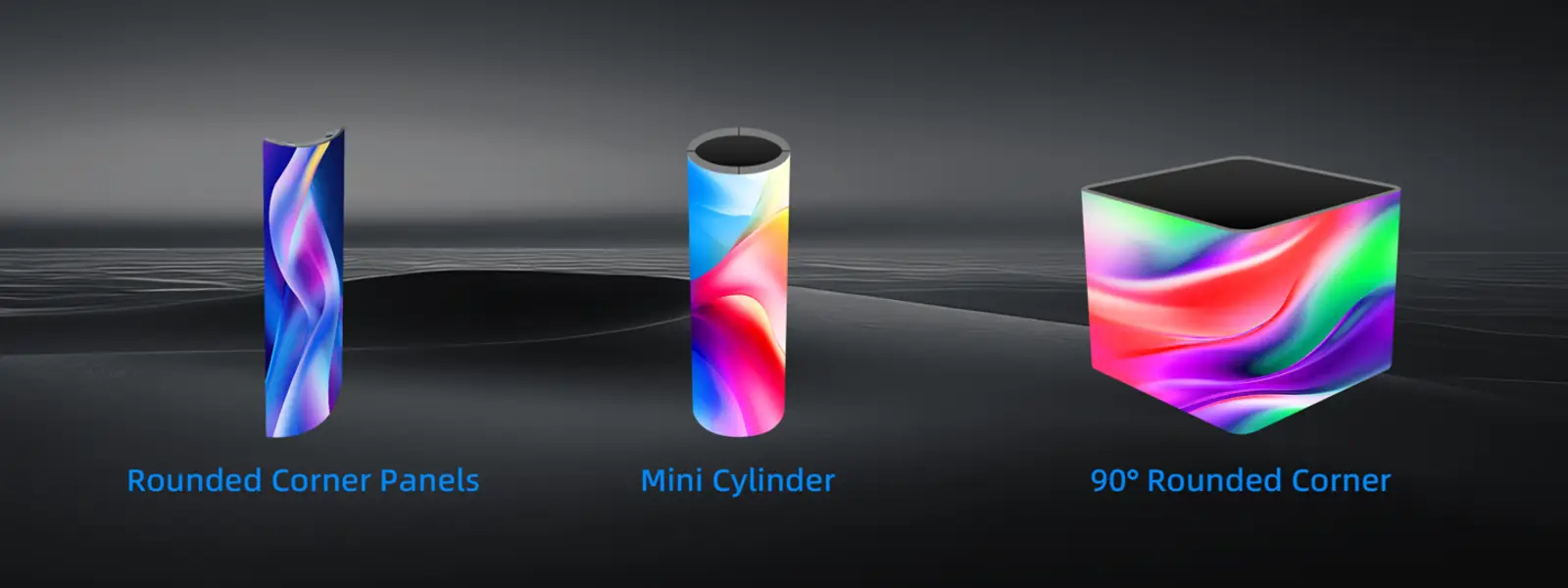

Mini Corner, One Is Enough

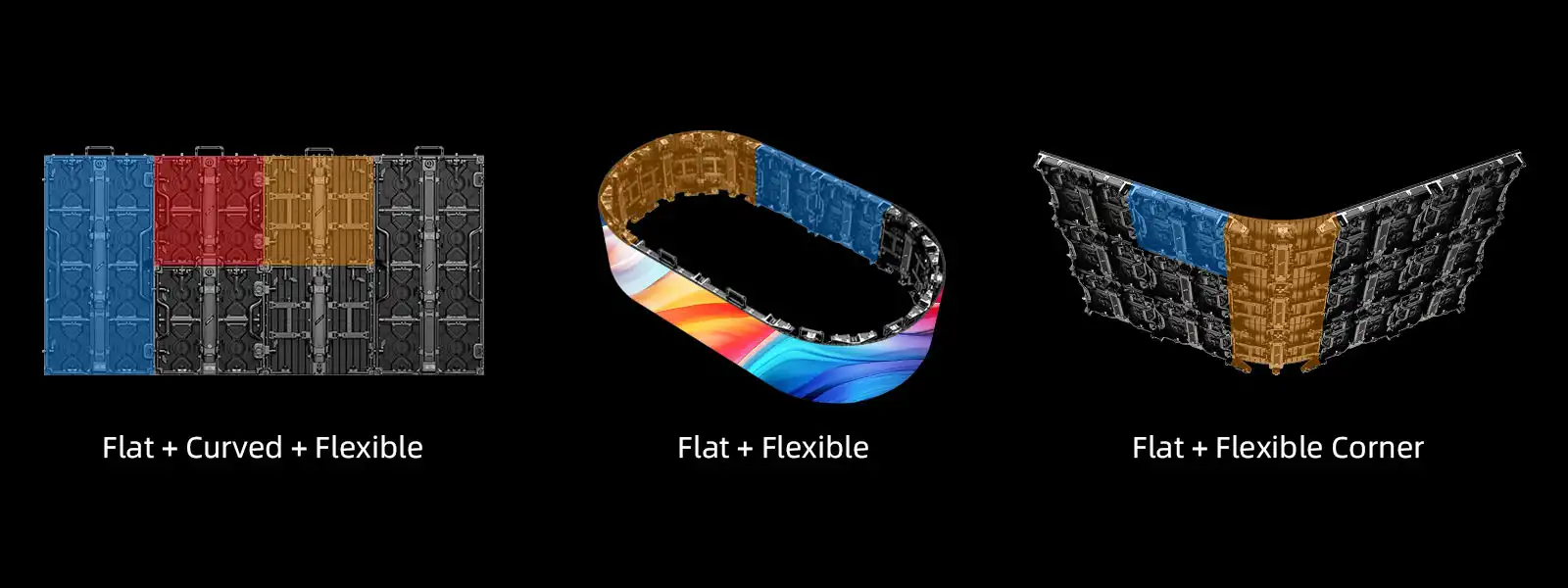

Built for tight indoor stage spaces, features a distinctive rounded-corner design that pairs perfectly with RV2 panels-and seamlessly integrates with Right-angle Panel and Flexible Displays for limitless creative configurations
Outdoor – Bright and Stable Displays
RV2 outdoor displays feature a brightness of 5000 nits, with standard 16-bit high grayscale levels and 7680Hz high refresh rate. Achieves a maximum contrast ratio of 8000:1, ensuring a clear and stable display even under intense outdoor lighting conditions.

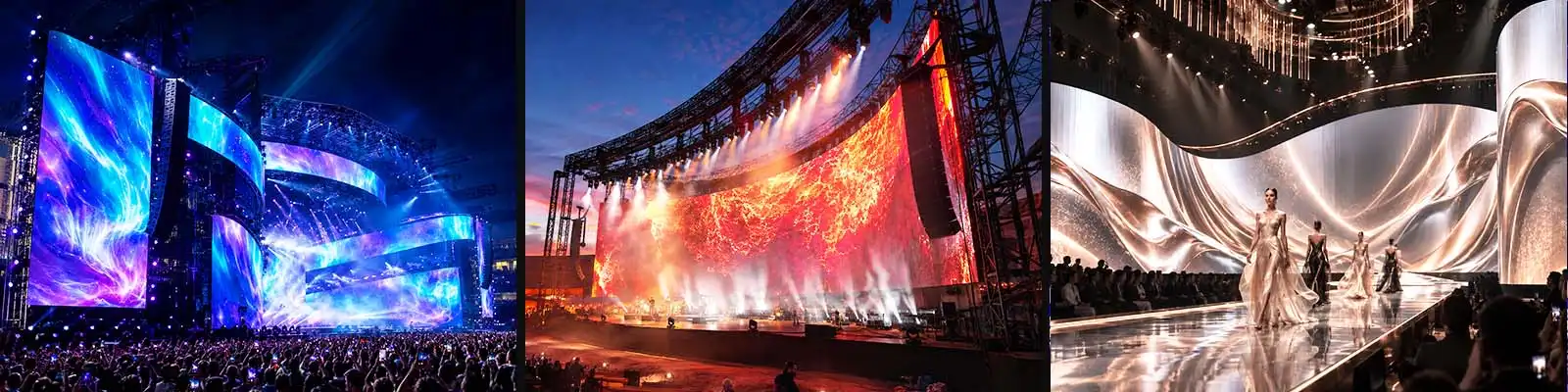

Application
Live Music, Business Activities, Beauty Contest, Stage Activities
Accessories
Global LED Display Solution Provider
RV2-Power Supply Box
RV2-Power Supply
RV2-Video Processor
RV2-Receiving Card
Reference Project
Product Parameters
| Parameter | P2.6 | P2.9 |
| Pixel Pitch |
2.6mm | 2.9mm |
| LED Configuration | SMD1415 | SMD1415 |
| Pixel Density (dots/㎡) | 147,456 dots/㎡ | 112,896 dots/㎡ |
| IP Rating | IP65 | |
| Brightness (nits) | 4500-5000nits adjustable | |
| Module Size (mm) | 250×250mm | |
| Cabinet size (mm) | 500x500x84mm | |
| Cabinet weight (kg) | 6.94kg / 12.26kg | |
| Viewing Angle (H/V) | Horizontal: 160°, Vertical: 140° | |
| Gray Scale (bit) | 14-16bit | |
| Max. / Are Power | 640/192 (W/m²) | |
| Refresh | 3840Hz ~ 7680Hz | |
| Input Voltage (V) | 110V/220V (Optional), 50/60Hz | |
| Work Environment | Temperature -20℃~60℃, 10%-90% Humidity | |
| Lifespan | Lifespan ≥ 100000H, MTBF ≥ 50000H | |
What's Service MPLED can offer you?
One-Stop Solution: With 20+ years experts team,MPLED provides the most comprehensive solution for your project, which makes your business easier,more professional and competitive.
Picture & Video Visualization
CAD drawing and 3D simulation
100% customer designcustomize
Factory Engineer On site support
7x24h Technical support
International Install team
Contact Us
Subject : Curved Creative Flexible Stage LED Display
FAQ
What is a rental curved LED display used for?
Rental curved LED displays are mainly used for stages, live events, exhibitions, trade shows, and immersive spaces, where creative shapes and strong visual impact are required.
What curved shapes can this LED display create?
The display supports concave, convex, S-shaped, wave-shaped, and cylindrical configurations, making it suitable for a wide range of creative designs.
Can the curved LED screen be used as a flat screen?
Yes. The cabinets support both flat and curved installation, allowing flat and curved screens to be mixed in one setup for maximum flexibility.
Is the curved LED display suitable for both indoor and outdoor use?
Yes. Indoor and outdoor versions are available, with different brightness levels and IP ratings to match various application environments. For indoor events or stages, the RF series offers comfortable brightness of 800-1000nits and an IP43 protection level. For outdoor applications, it offers stable performance: High brightness (up to 5000nits) to ensure clear visuals IP65 super-protection for resisting harsh outdoor weather
Can the curved LED screen be hung or only ground-mounted?
The special hanging bar design supports safe and stable hanging installation, as well as ground stacking, depending on event requirements.
