RV2 Series
100% Magnetic Front-Access Stage LED Display
RV2 Series
100% Magnetic Front-Access Stage LED Display
Dimension: 500mm*500mm*83mm, 500mm*1000mm*83mm
Pixel Pitch : 2.6mm, 2.9mm
Applications: Live Music, Business Activities, Beauty Contest, Stage Activities
7680Hz High Refresh
Triple Anti-collision
Front & Rear maintenance
Flexible Splicing
Extended Power Cable
Tool-free
-
Video
-
One-Stop Solution
-
Characters
-
Reference Project
-
Specification
-
RV2 Series

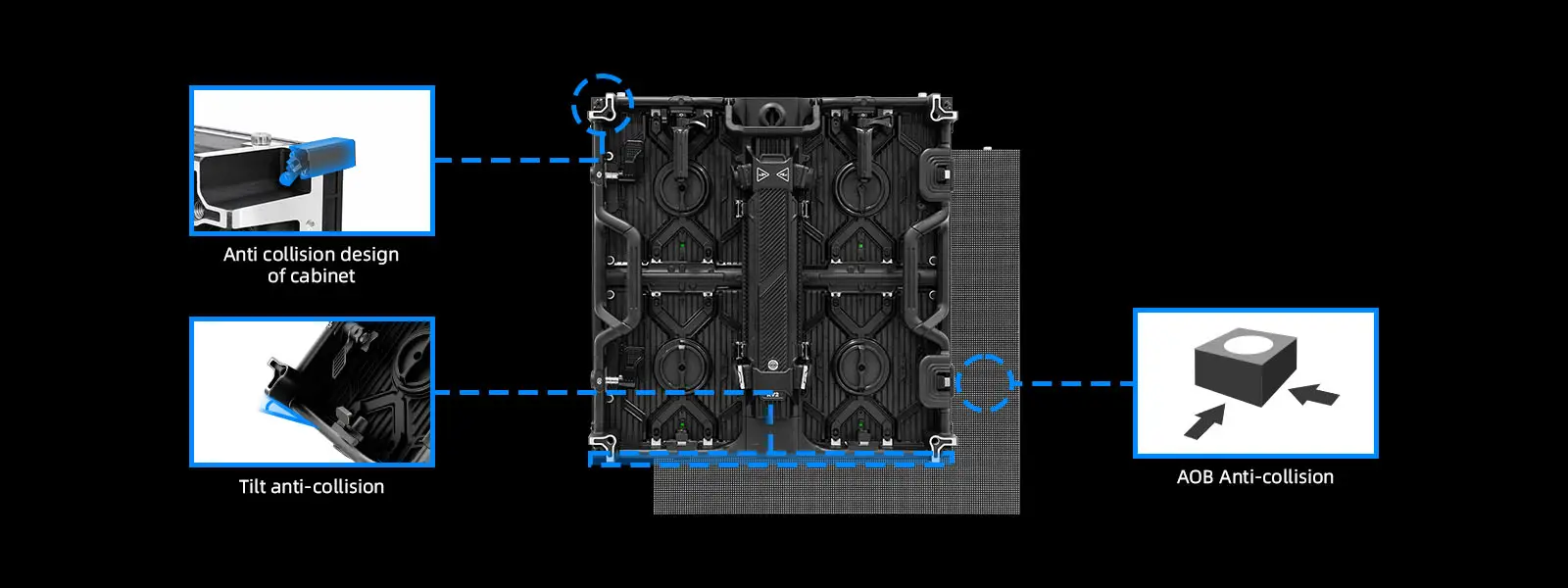

Triple Anti-collision
The enhanced PCB design ensures robust attachment of LED lamps to the board providing excellent resistance against impacts, shakes, hits, and collisions during transportation, installation, and dismantling.

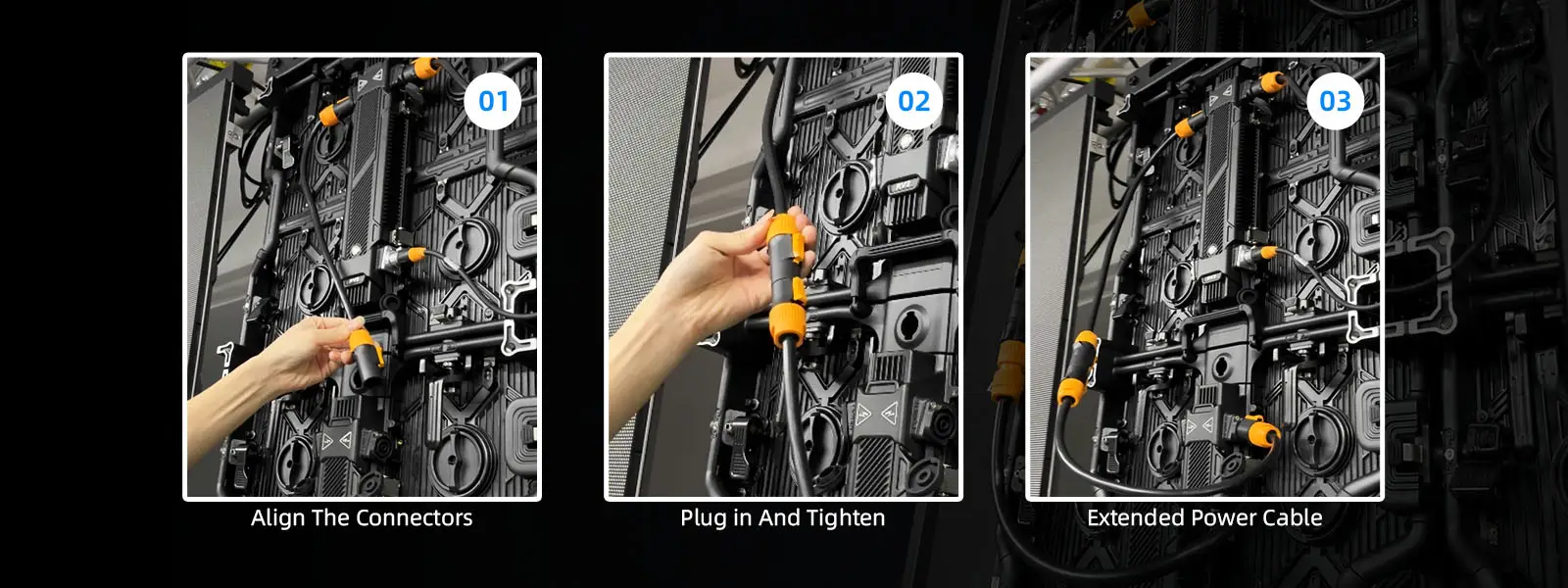

Extended Power Cable
Extend power connection distance easily without extra cables

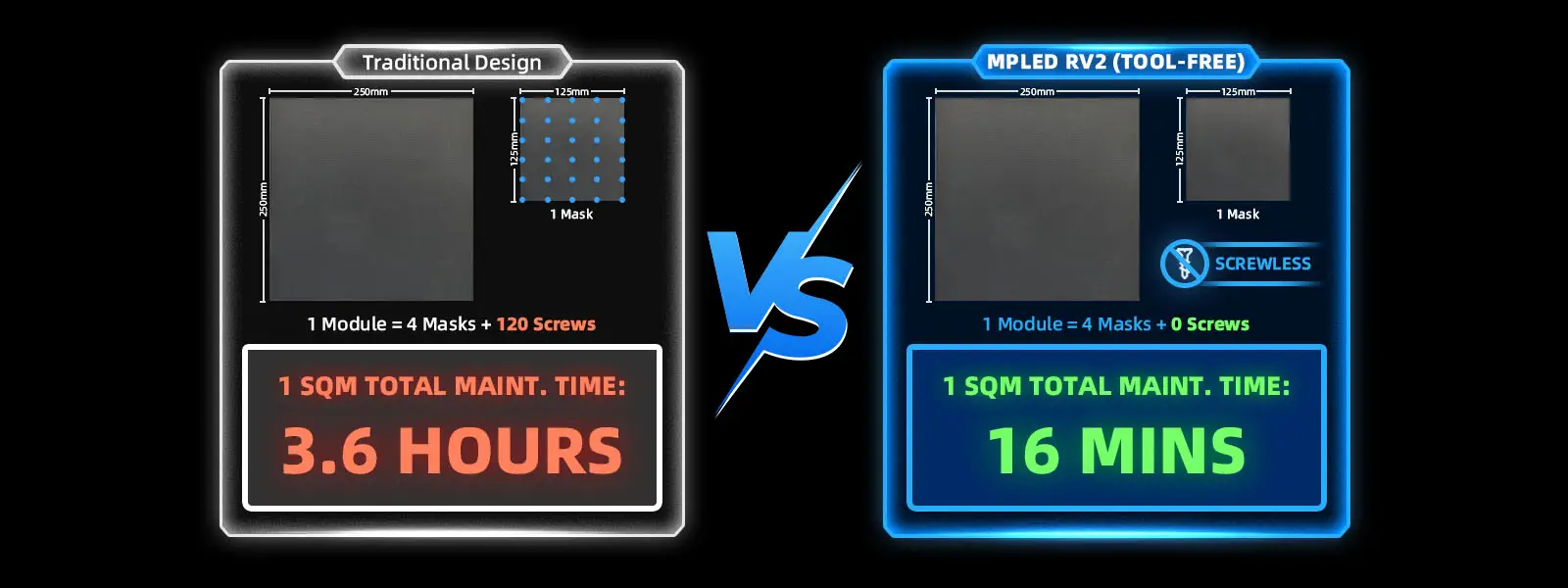

Module Maintenance Time Comparison
Designed for Frequent Rental Operations

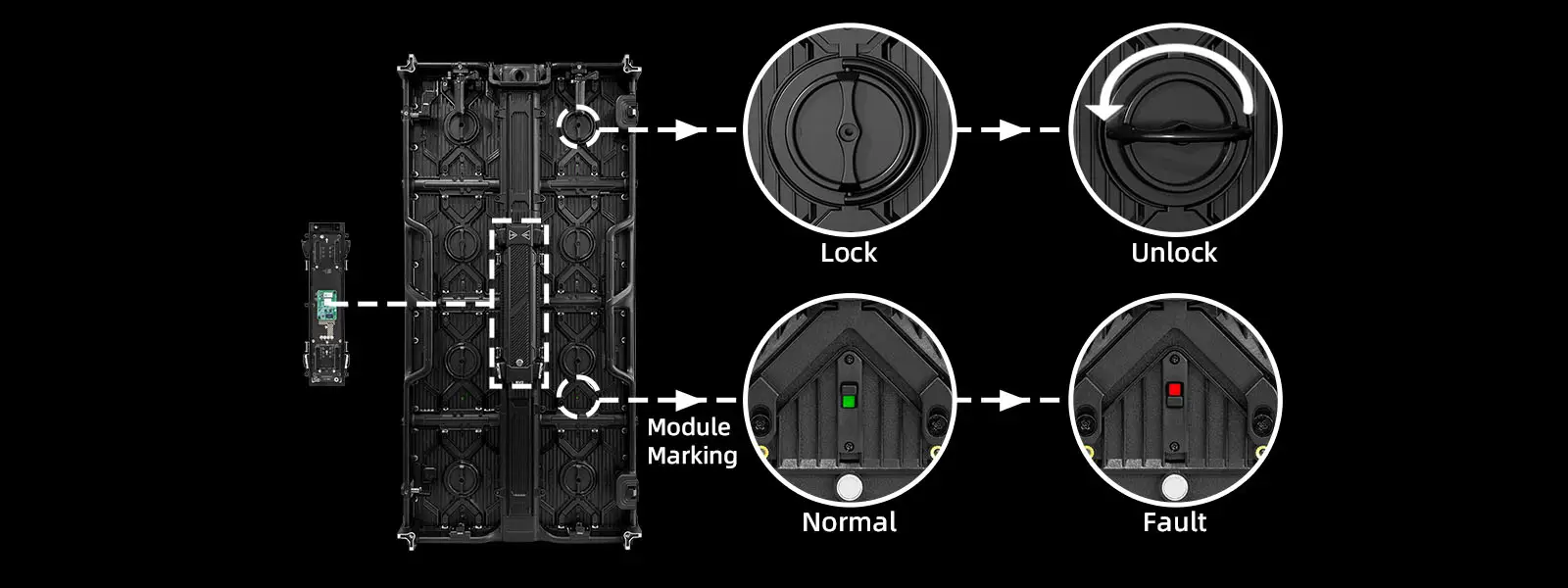

Tool Free
Faster assembly and dismantling with fewer tools on site
Designed for Frequent Rental Operations

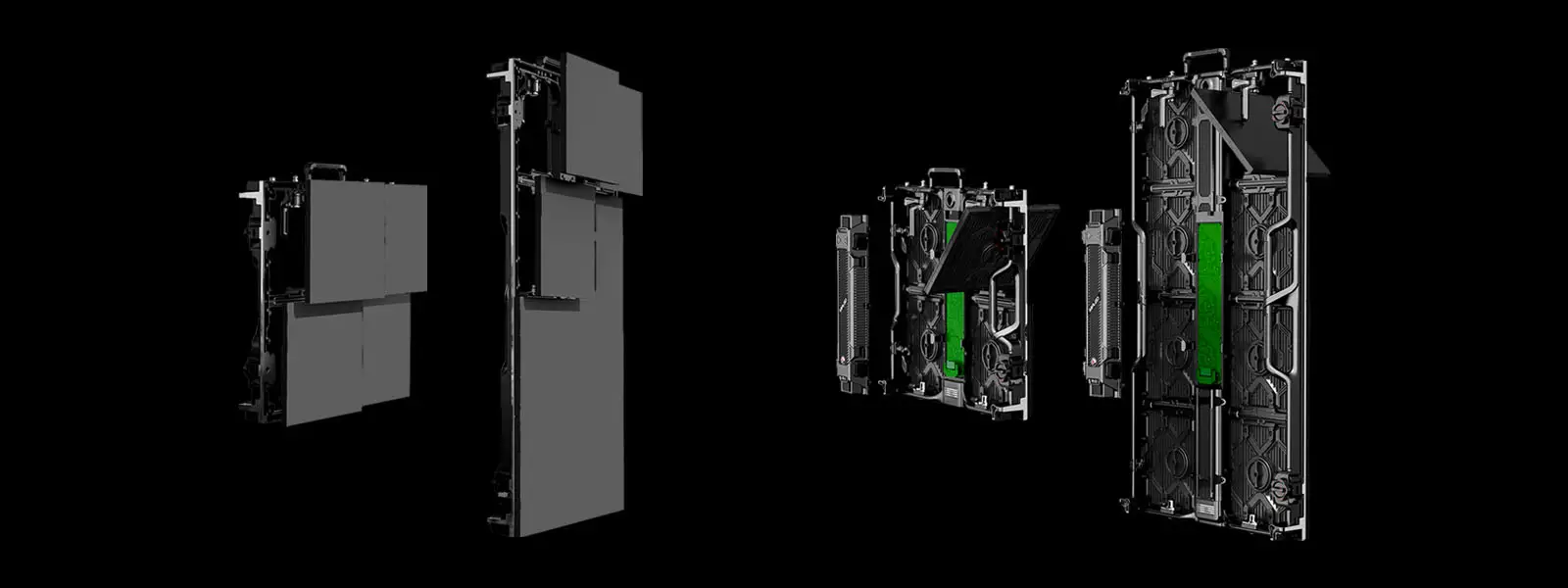

Easy Maintenance
Front and rear maintenance for both modules and control box
Designed for Frequent Rental Operations

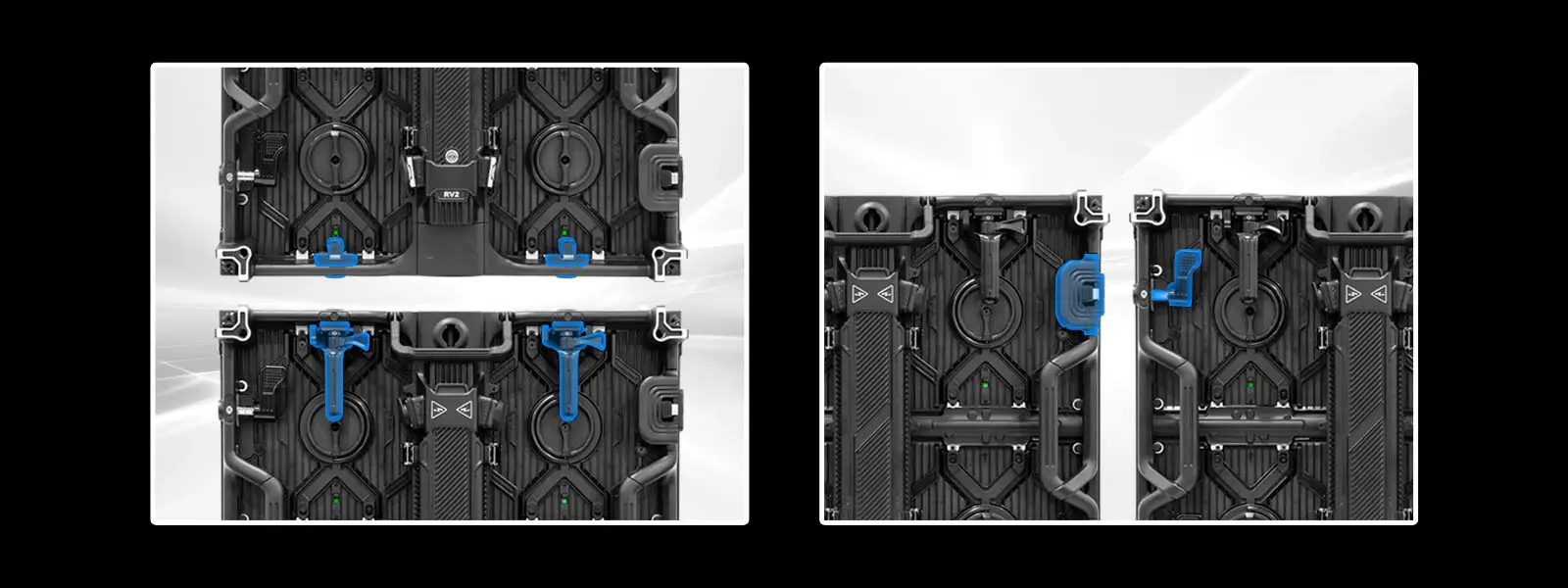

20% Faster Installation
Safer, faster cabinet positioning – especially useful for repeated touring work

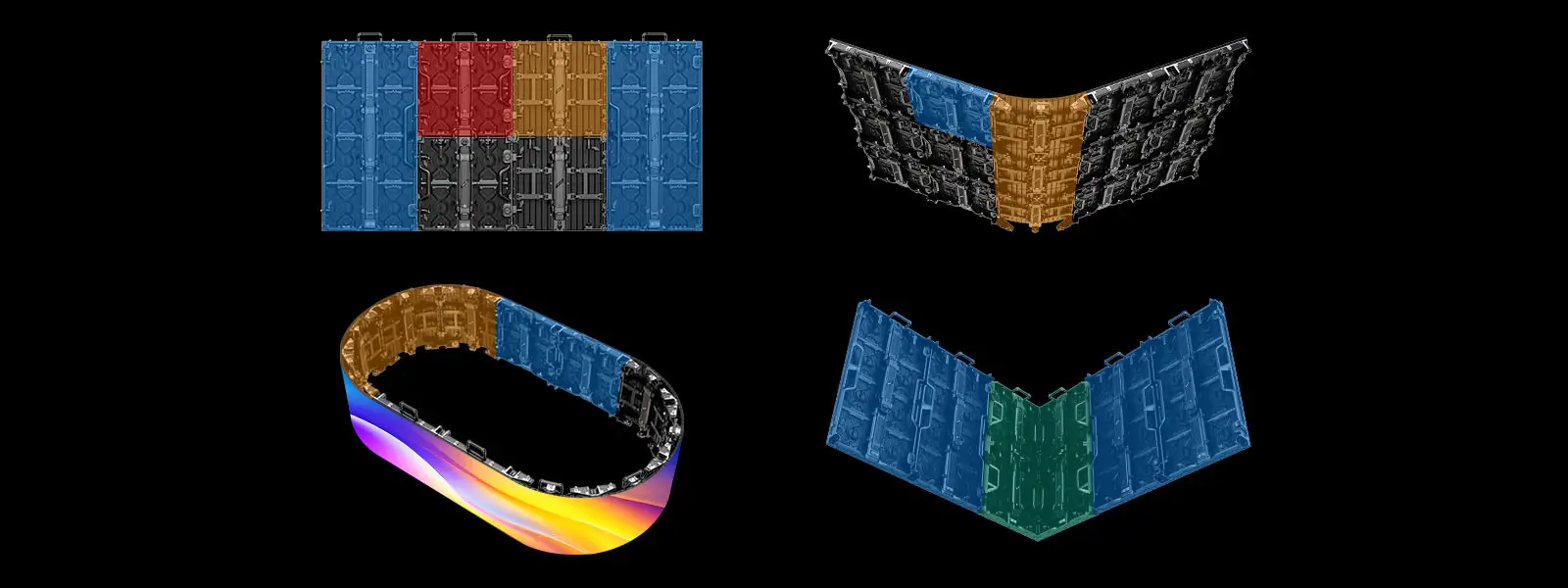

Flexible Splicing
Cabinets of different sizes can be flexibly splicing

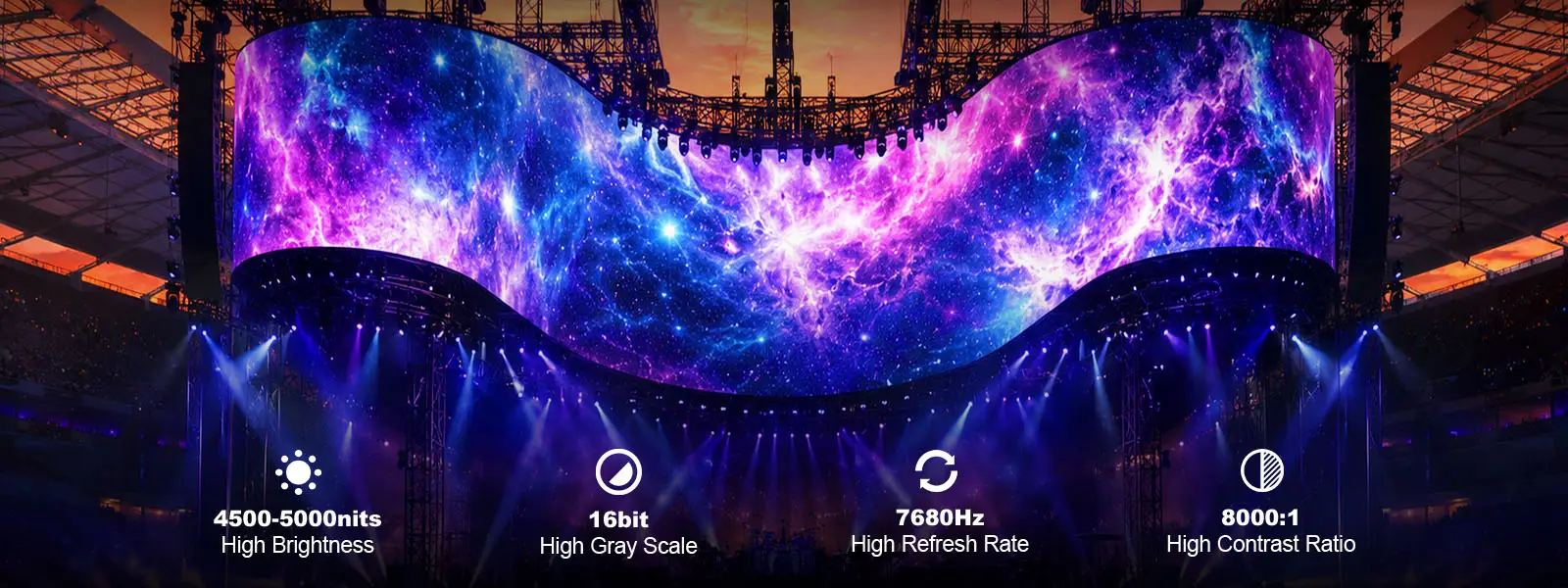

Outdoor – Bright and Stable Displays
RV2 outdoor displays feature a brightness of 5000 nits, with standard 16-bit high grayscale levels and 7680Hz high refresh rate. Achieves a maximum contrast ratio of 8000:1, ensuring a clear and stable display even under intense outdoor lighting conditions.

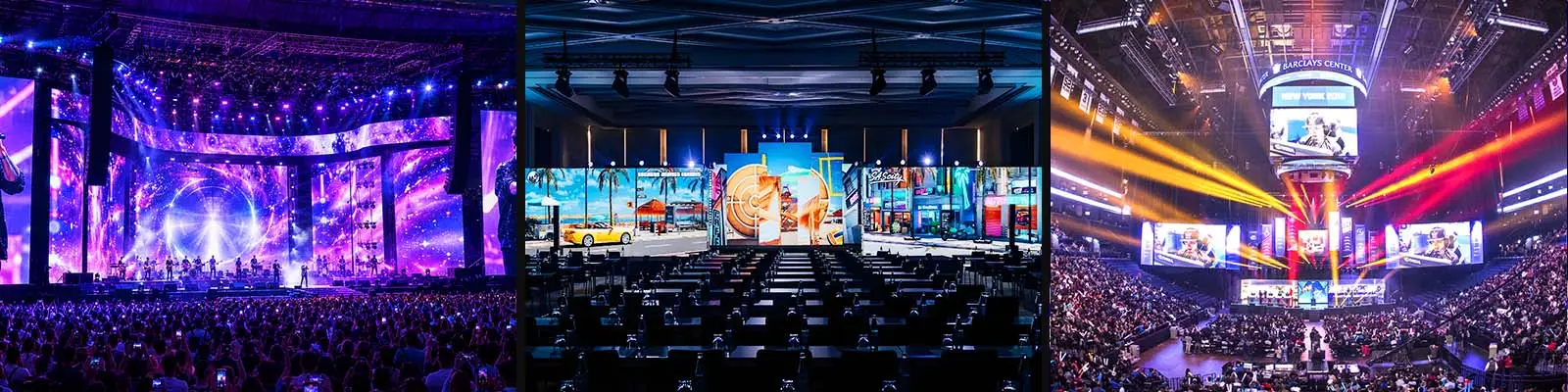

Application
Live Music, Business Activities, Beauty Contest, Stage Activities
Accessories
Global LED Display Solution Provider
RV2-Power Supply Box
RV2-Module
RV2-Power Supply
RV2-Video Processor

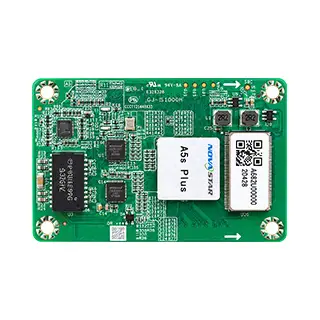

RV2-Receiving Card
Reference Project
Product Parameters
| Parameter | P2.6 | P2.9 |
| Pixel Pitch |
2.6mm | 2.9mm |
| LED Configuration | SMD1415 | SMD1415 |
| Pixel Density (dots/㎡) | 147,456 dots/㎡ | 112,896 dots/㎡ |
| IP Rating | IP65 | |
| Brightness (nits) | 4500-5000nits adjustable | |
| Module Size (mm) | 250×250mm | |
| Cabinet size (mm) | 500x500x83mm & 500x1000x83mm | |
| Cabinet weight (kg) | 6.94kg / 12.26kg | |
| Viewing Angle (H/V) | Horizontal: 160°, Vertical: 140° | |
| Gray Scale (bit) | 14-16bit | |
| Max. / Are Power | 640/192 (W/m²) | |
| Refresh | 3840Hz ~ 7680Hz | |
| Input Voltage (V) | 110V/220V (Optional), 50/60Hz | |
| Work Environment | Temperature -20℃~60℃, 10%-90% Humidity | |
| Lifespan | Lifespan ≥ 100000H, MTBF ≥ 50000H | |
What's Service MPLED can offer you?
One-Stop Solution: With 20+ years experts team,MPLED provides the most comprehensive solution for your project, which makes your business easier,more professional and competitive.
Picture & Video Visualization
CAD drawing and 3D simulation
100% customer designcustomize
Factory Engineer On site support
7x24h Technical support
International Install team
Contact Us
Subject : 100% Magnetic Front-Access Stage LED Display
FAQ
What applications is the RV2 series rental LED panel suitable for?
The RV2 series rental LED panel is ideal for stage LED screens, live events, exhibitions, brand activations, and immersive installations. Supports flat, curved, right-angle, and creative LED display designs.
Does the RV2 series support curved and creative LED installations?
Yes, the RV2 series supports seamless curved installations, right-angle splicing, cylindrical displays, and special-shaped LED structures.
Is it easy to install and maintain for rental use?
Featuring fast installation options, front and rear maintenance access, and a durable structure, RV2 series rental LED panels are suitable for frequent setup and dismantling.
