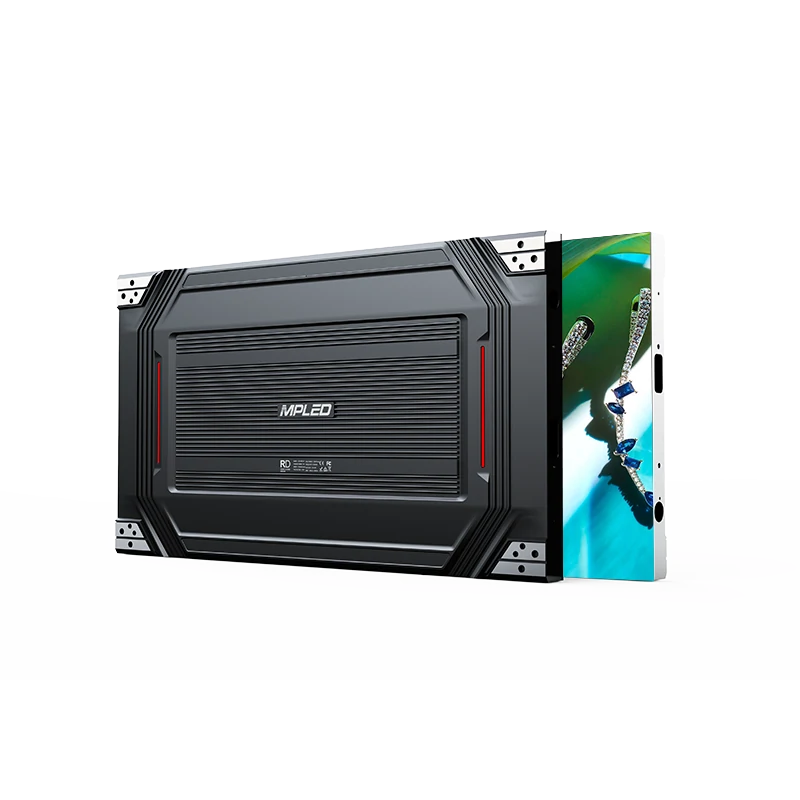

RA Series
High ROI Stage LED Display
2000m² stock / 7days delivery

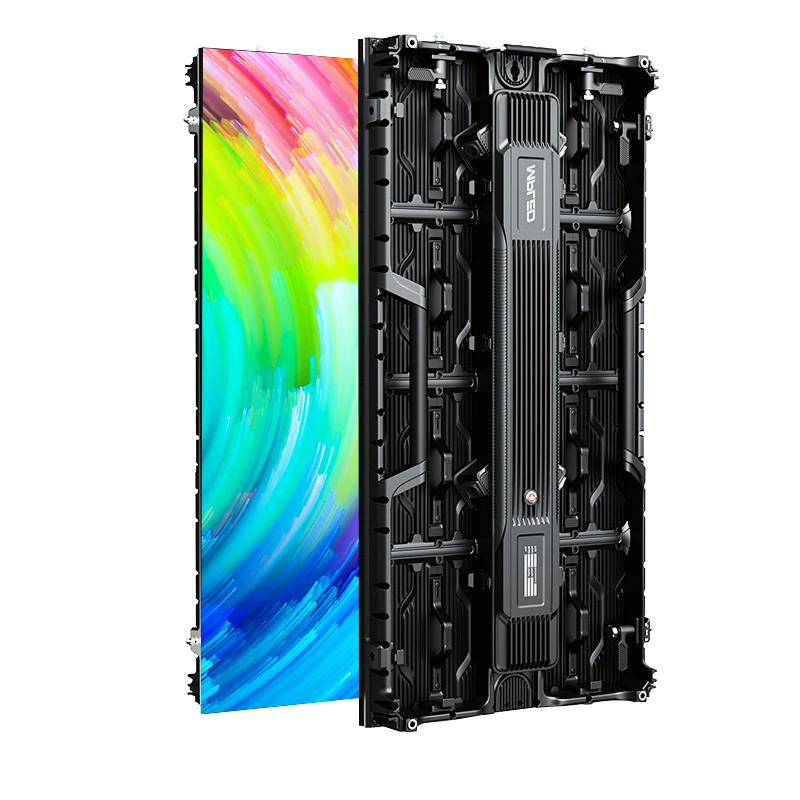

RA Series
High ROI Stage LED Display
Dimension: 500*500*88mm,500*1000*88mm
Pixel pitch:indoorP1.9mm,indoorP2.6mm,indoorP2.9mm,outdoorP2.6mm,outdoorP2.9mm,outdoorP3.91mm
Application Scenario: Church,School,Studio,Fashion show,Wedding, Product lanuch,Press conference,,Music concert,Festival,Resturant,Stage
3840Hz-7680Hz refresh
5000nits High brightness
14bit Grayscale
AOB Anti-collision
High contrast 5000:1
Mixed splicing
-
Video
-
One-Stop Solution
-
Characters
-
Reference Project
-
Specification
-
RA Series
How to Seek Solution?
Choose right LED display products for your projects
Curved parts screen

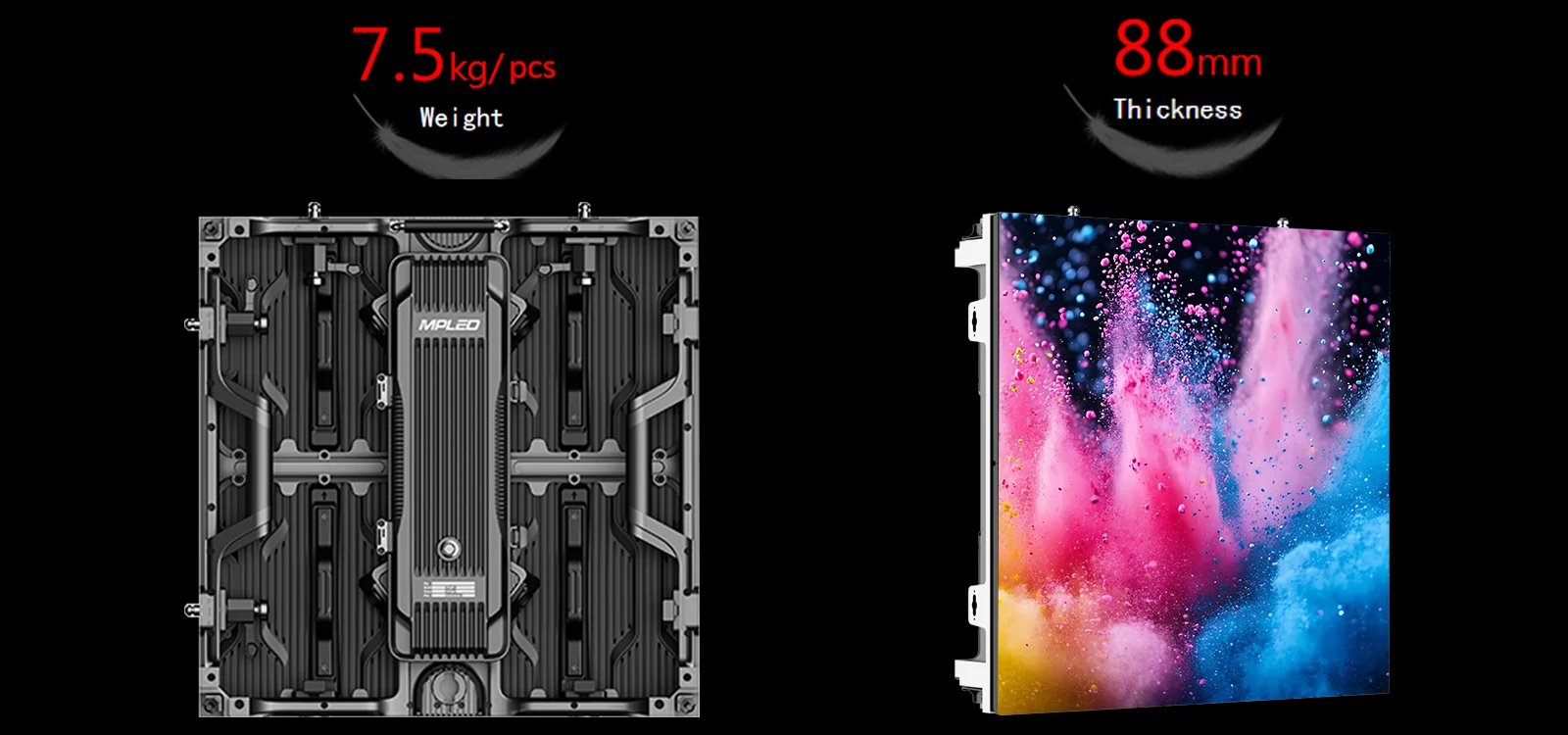

Ultra Slim & Light
The weight is only 7.5kg/pcs,the thickness is 88mm,the installation is convenient and efficient,saving a lot of installation and transportation costs
AOB Module Design
AOB technology enhances physical and chemical protection, increases viewing angles and contrast, and improves light mixing and consistency, ensuring superior durability and visual performance.

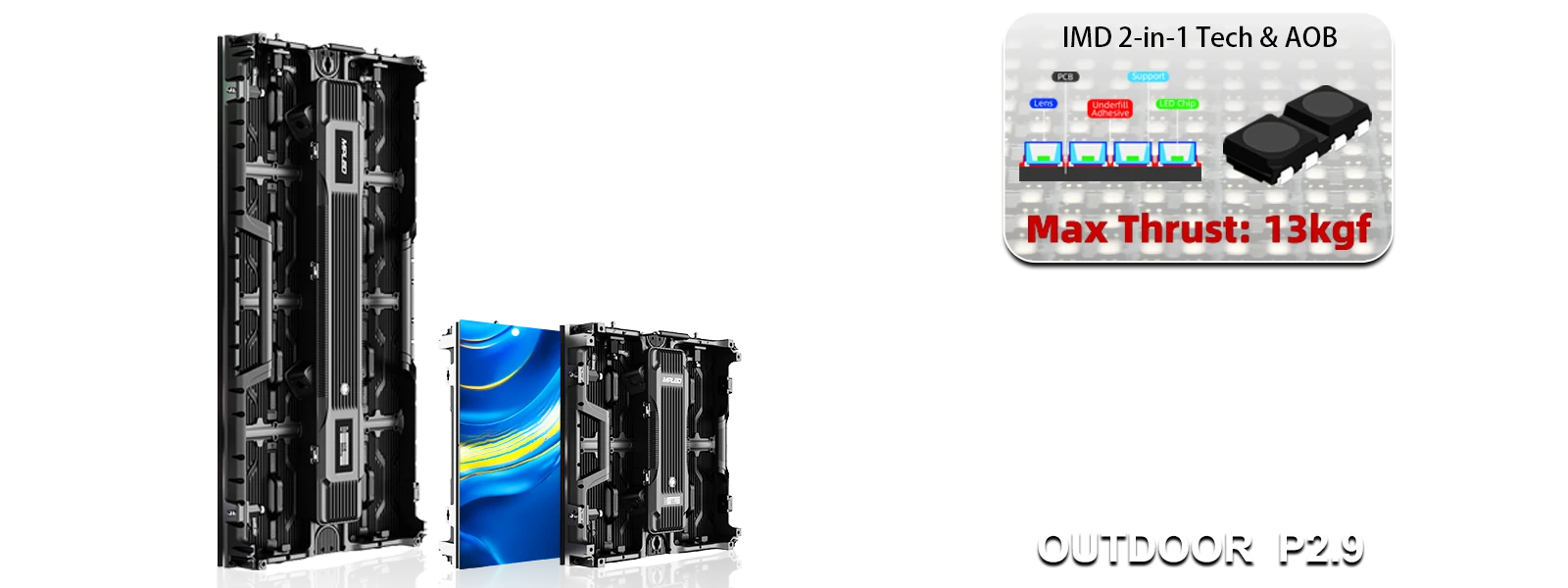

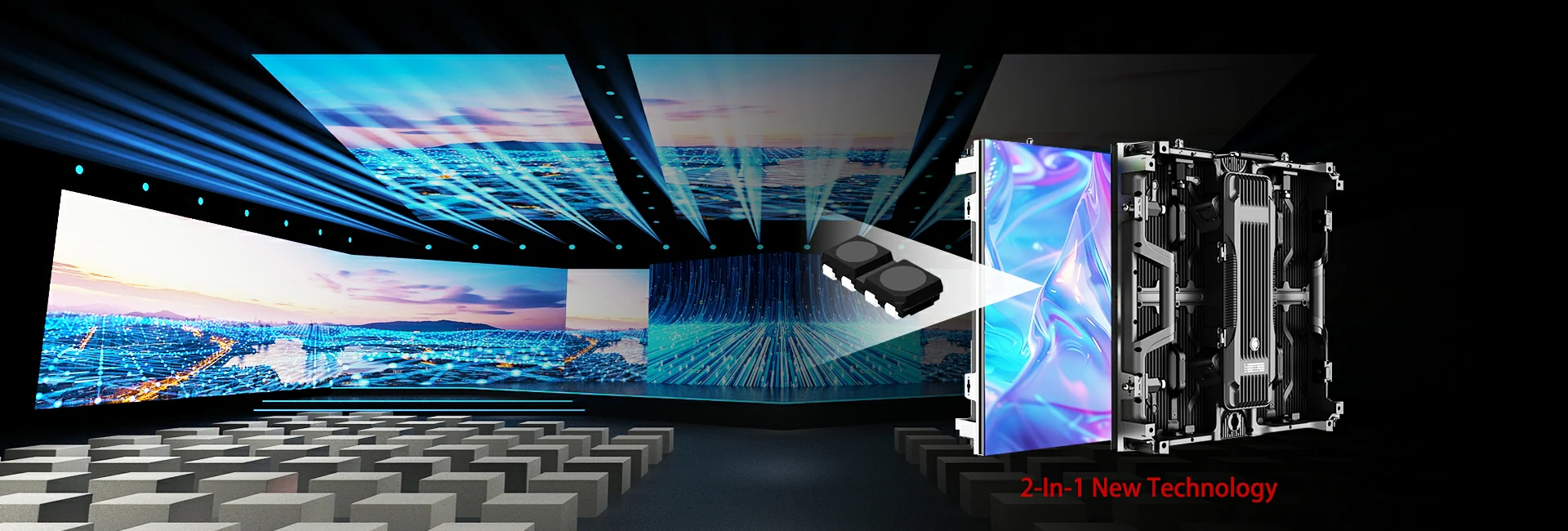

4X Greater LED Thrust
Unleash 13kgf of power! With AOB and 2-in-1 innovation, our LEDs deliver 4× the performance of traditional designs

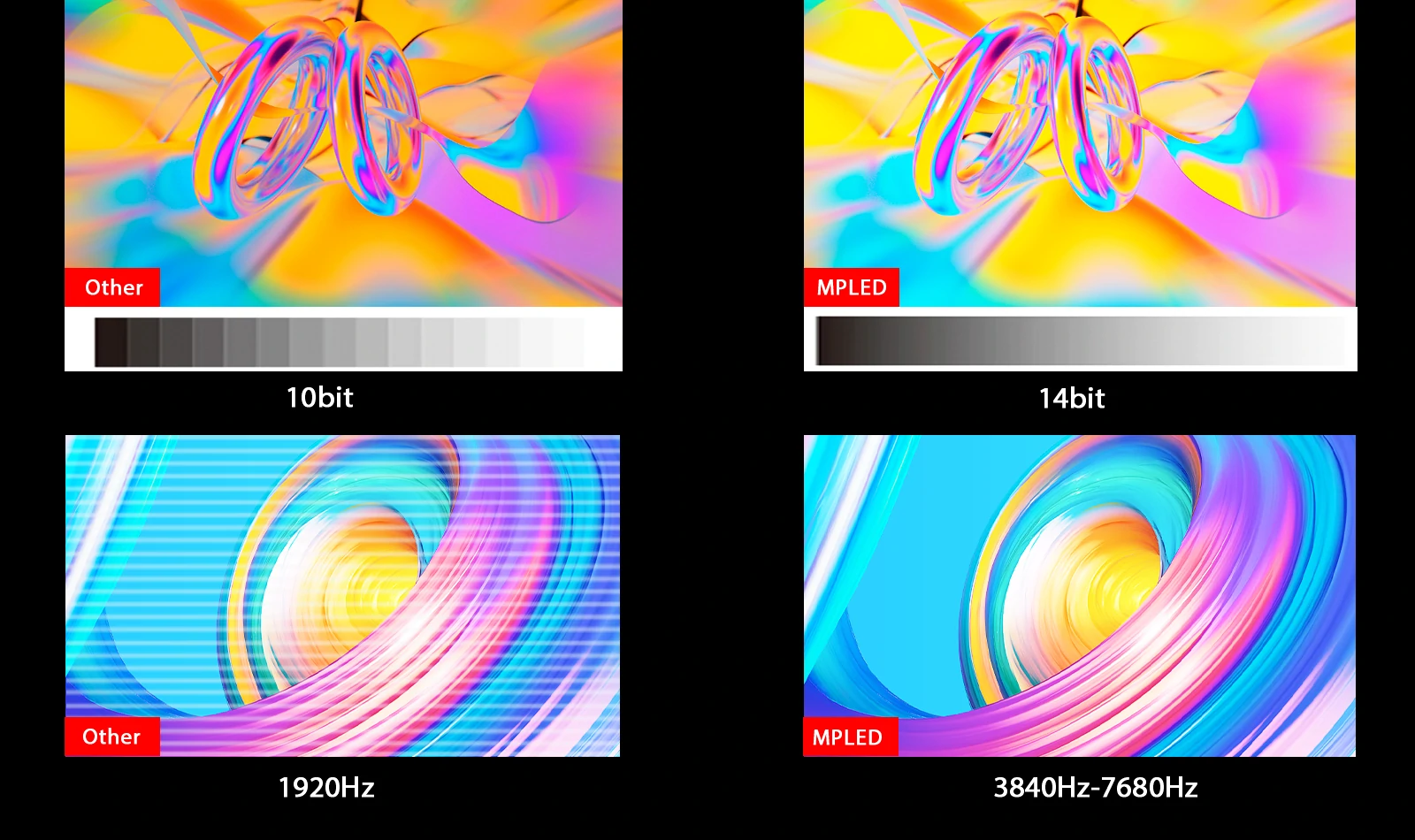

High Refresh & Contrast
No Scanning line,No jitter

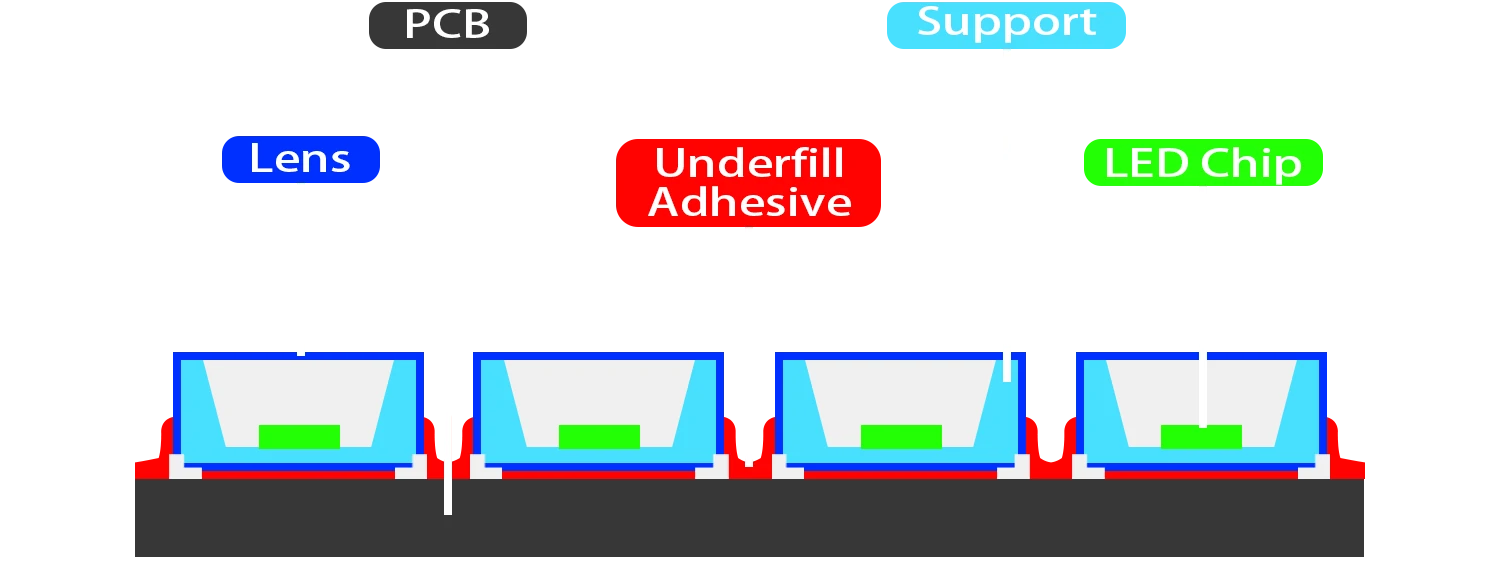

Anti-collision Design
The improved PCB design make led lamp much stronger fixed on PCB baord to well resist the impact/shake/hit/collision during transportation/installation and dismantlement
Various Sizes Available

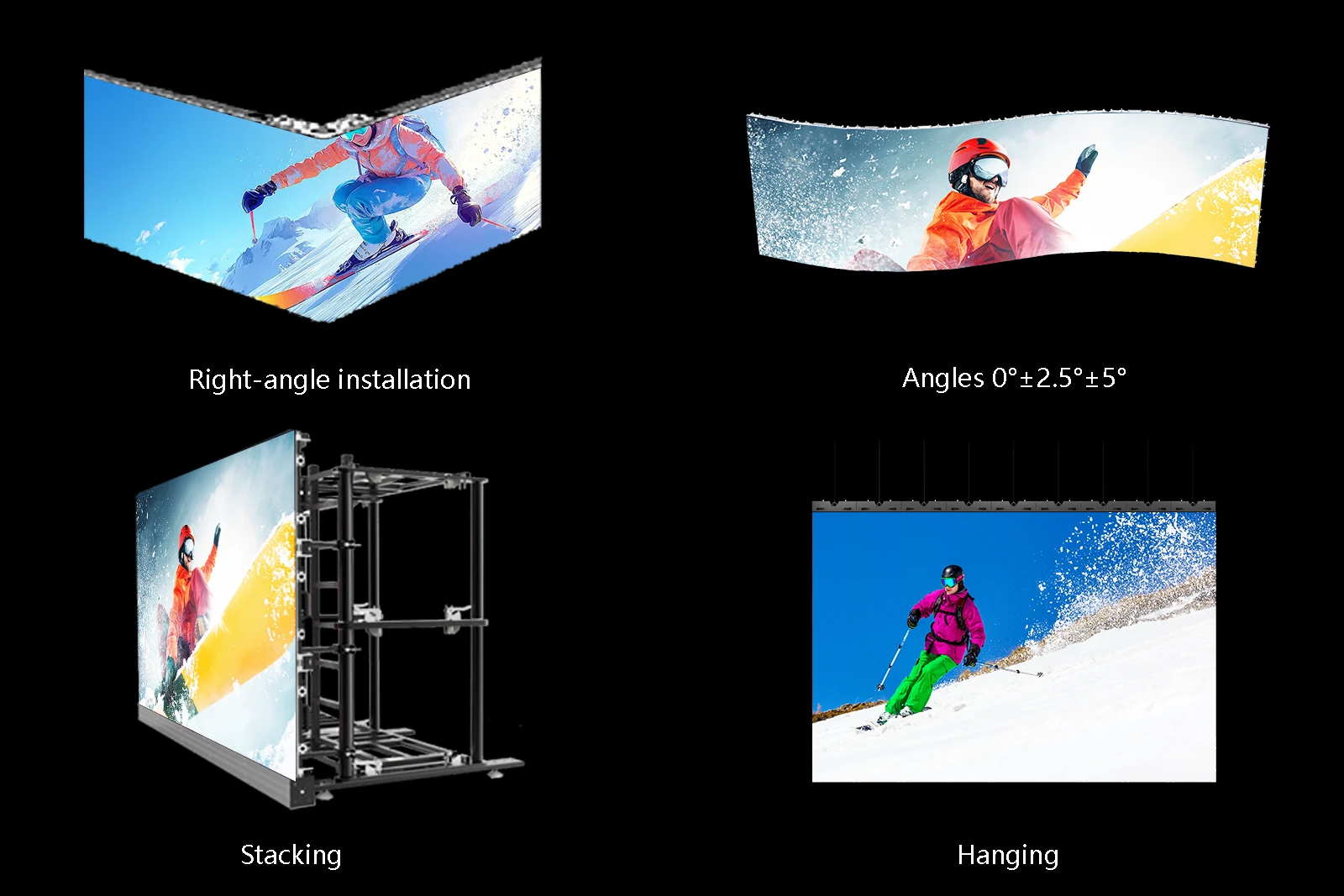

Various Installation & Splicing
Support inner and outer arc,easy to realize S,Cylinder shape

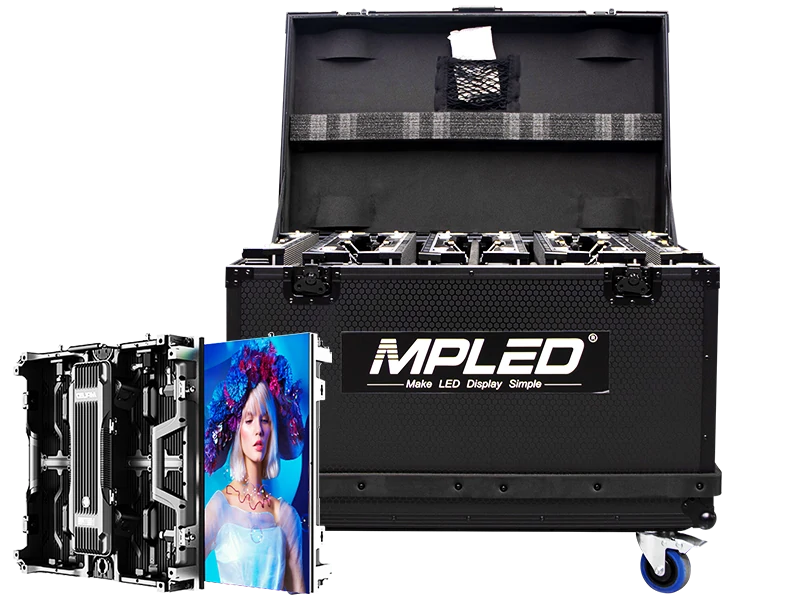

Air box configuration
- 500×500mm box: 8pcs in one air box
- 500×1000mm box: 6pcs in one air box

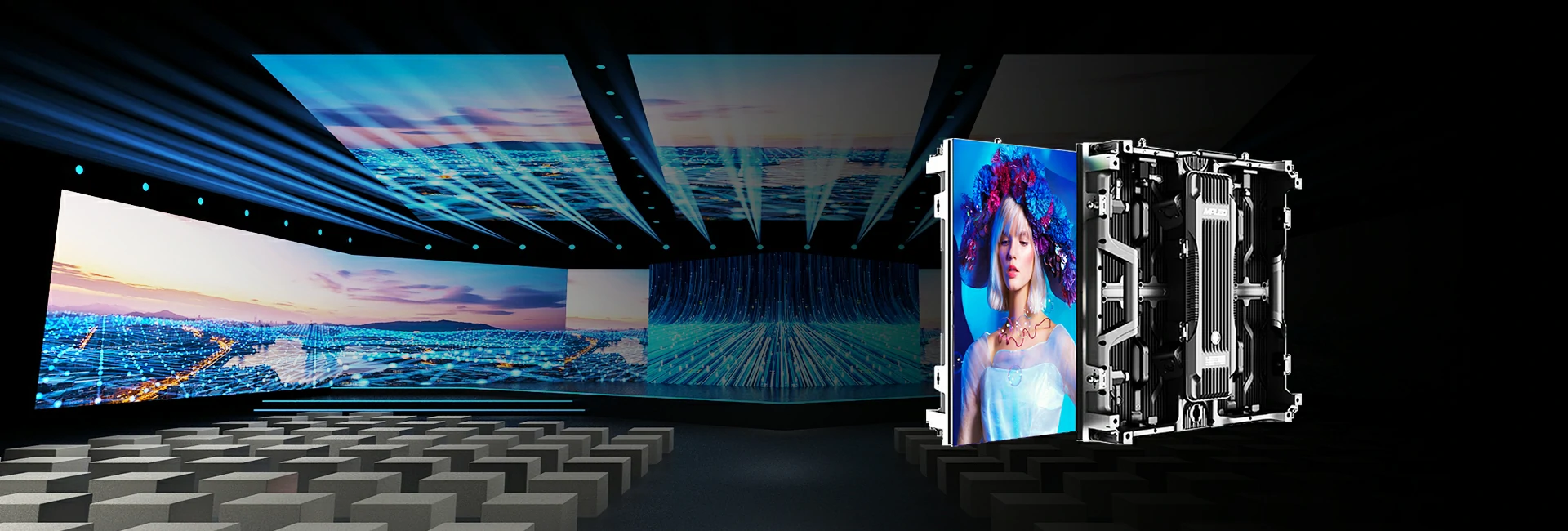

Application
Application
Church,School,Studio Fashion Show,Wedding,Product Lanuch,Press conference Concert,Festival,Resturant,Stage
Reference Project
Parameters
| Parameter | Indoor P1.9 | Indoor P2.6 | Indoor P2.9 | Outdoor P2.6 | Outdoor P2.9 | Outdoor P3.91 |
| Pixel Pitch | 1.9mm | 2.6mm | 2.9mm | 2.6mm | 2.9mm | 3.91mm |
| LED Lamp | SMD1515 | SMD1515 | SMD2121 | SMD1515 | SMD1415 | SMD1921 |
| Pixel Density (dots/㎡) | 262144dots/㎡ | 147456dots/㎡ | 112896dots/㎡ | 147456dots/㎡ | 112896dots/m² | 65536dots/㎡ |
| Module Size (mm) | 250*250mm | |||||
| Brightness(nits) | 800-1200nits | 4000-5000nits adjustable | ||||
| Refresh rate(Hz) | 3840Hz-7680Hz | |||||
| Cabinet size(mm) | 500*500mm&500*1000mm | |||||
| IP Rating | IP40 | IP65 | ||||
| Gray Scale (bit) | 14bit | |||||
| Max/Ave(W/m²) | 480/144(W/m²) | 640/192(W/m²) | ||||
| Viewing angle(Deg) | Horizontal≥160°，Vertical≥150° | |||||
| Work Environment | Temperature-20℃±60℃，Humidity 10%RH-90%RH | |||||
| Lifespan | Lifespan≥100000H, MTBF≥50000H | |||||

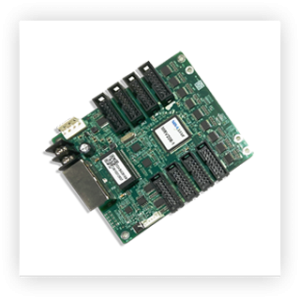

 Novastar Received Card |

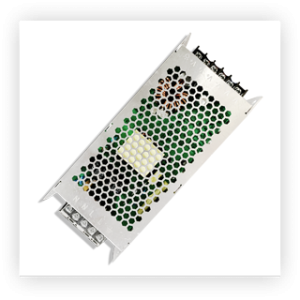

 Power Supply |

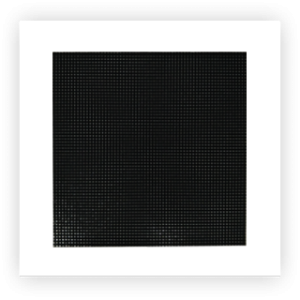

 LED Module |

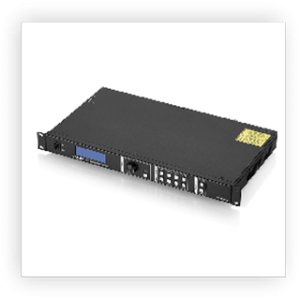

 Video Processor |
What's Service MPLED can offer you?
One-Stop Solution: With 20+ years experts team,MPLED provides the most comprehensive solution for your project, which makes your business easier,more professional and competitive.
Contact Us
Subject : High ROI Stage LED Display
Related Products
FAQ
The screen will spend much electronic?
No, AF plus is energy saving screen, it spend very less electronic, 1day only spend 1kwh/m2.
