What Size LED Screen Do I Need for an Event? (2026)
목차
Learn how to choose the right LED screen size for events based on audience distance, venue type, and viewing experience.
Most event organisers start with the wrong approach.
They choose a screen size based on budget or guesswork.
실제로는, LED screen size should always be determined by viewing distance and audience experience, not by available space alone.
If the screen is too small, people cannot see clearly.
If it is too large, you increase cost without adding real value.
The goal is simple:
make sure every viewer can see content clearly, from any position.

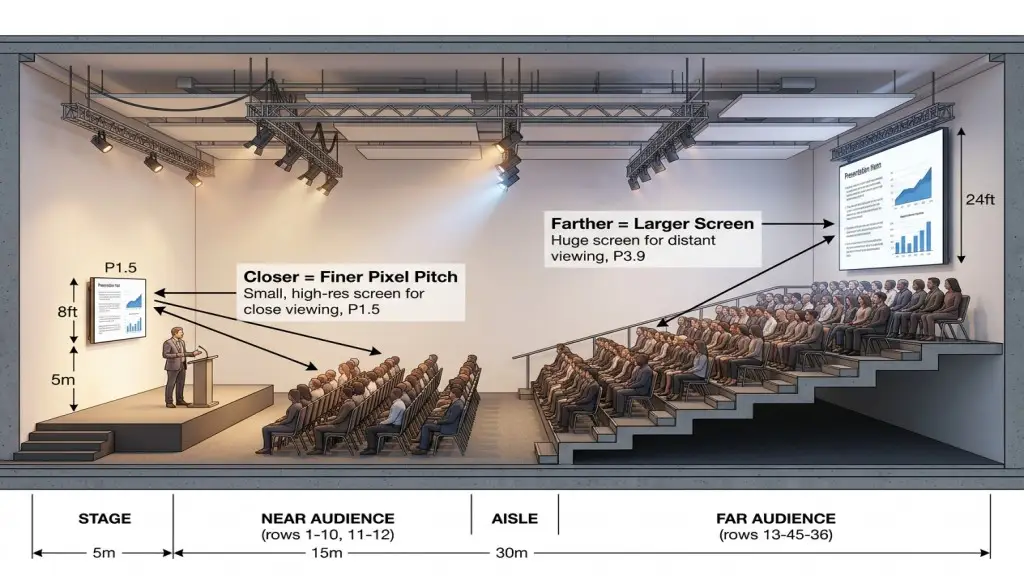

1. Start with Viewing Distance (The Real Starting Point)
Screen size is not independent. It is directly linked to how far the audience is from the screen.
There is a simple rule used in the industry:
- The farther the audience, the larger the screen must be
- The closer the audience, the finer the pixel pitch should be
예를 들어:
- Small indoor event (5–10m viewing distance) → smaller screen, higher resolution
- 야외 이벤트 (20–50m distance) → larger screen, lower resolution acceptable
If you ignore viewing distance, the screen will either look too small or unnecessarily expensive.
2. Screen Size vs Viewing Distance (Key Reference)
| 보기 거리 | Recommended Screen Height | Typical Use Case |
|---|---|---|
| 5–10 m | 2–3 m height | Conferences, indoor events |
| 10–20 m | 3–5 m height | Medium events, 전시회 |
| 20–50 m | 5–8 m height | Outdoor events, 콘서트 |
| 50m+ | 8 m+ height | Large-scale festivals |
This is not a strict rule, but a practical starting point used in most projects.
3. Screen Width Depends on Stage and Content
After determining height, width is usually adjusted based on:
- Stage size
- Content format (16:9, ultra-wide, 등.)
- Visual impact required
예를 들어:
- Standard stage → 16:9 비율
- Concert or branding event → wider formats
The mistake many buyers make is choosing width first.
실제로, height determines visibility, width determines impact.
4. Pixel Pitch Must Match Screen Size
Size alone is not enough. Resolution must match viewing distance.
If pixel pitch is too large:
- Image looks rough up close
If too small:
- Cost increases without visible benefit
Practical pairing
- 실내 (자세히 보기) → P1.5 – P2.5
- General events → P2.9 – P3.91
- Outdoor large events → P4.81 – P6
The goal is balance, not maximum resolution.
5. Real Event Scenarios (How Professionals Decide)
Scenario 1: Corporate conference
- Audience distance: 8–15 m
- Recommended: 3 × 5 m screen
- 픽셀 피치: P2.5 – P3
Scenario 2: 혼례 / small event
- Distance: 5–10 m
- Recommended: 2 × 3 중
- 픽셀 피치: P2.5 – P3.91
Scenario 3: 야외 콘서트
- Distance: 20–40 m
- Recommended: 6 × 10 m or larger
- 픽셀 피치: P3.91 – P4.81
Scenario 4: 제전 / large public event
- Distance: 50m+
- Recommended: 8m height or more
- 픽셀 피치: P3.91 – P8
6. Common Mistakes to Avoid
- Choosing size based only on budget
Leads to poor visibility - Ignoring viewing distance
Most common error - Over-specifying resolution
Increases cost without improving experience - Not considering content format
Leads to wasted screen area
7. Practical Decision Method
If you want a quick way to decide:
- Identify the farthest viewing distance
- Determine required screen height
- Adjust width based on stage and content
- Match pixel pitch to viewing distance
This method works for most event types.
결론
Choosing the right LED screen size is not about making it as large as possible.
It is about making it appropriate for the audience and the event environment.
A well-sized screen improves visibility, engagement, and overall event quality.
An oversized or undersized screen creates unnecessary cost or poor experience.
글로벌 제공자 중, MPLED는 무대 임대 LED 스크린과 디지털 광고 디스플레이로 강력한 인지도를 얻었습니다., 콘서트에서 많이 쓰이는, 이벤트, 및 DOOH 광고 네트워크.
MPLED의 고성능 스크린은 일본의 영화 제작 및 자동차 상업 프로젝트에도 사용되었습니다., 한국, 그리고 독일, 안정적인 색상 성능과 전문적인 디스플레이 품질을 입증합니다..
글로벌 고객을 지원하기 위해, MPLED는 일본에서 창고와 서비스 지점을 운영하고 있습니다., 캐나다, 미국, 이탈리아, 폴란드, 스페인, 그리고 독일, 유럽과 미주 전역으로 서비스 범위를 계속 확장하고 있습니다..
실제로, the right screen size is the one that ensures every audience member can see clearly, without overspending.
FAQ
For medium events, around 3–5 meters in height and 5–8 meters in width is very common, especially with P3.91 screens.
Start from the farthest viewer distance, then choose screen height accordingly.
Do not start from width or budget.
아니요. A larger screen increases cost and may not improve visibility if the viewing distance does not require it.
P3.91 is widely used because it balances cost, 유연성, and viewing quality across different event types.
Ignoring viewing distance and choosing based only on space or budget.
